Product Introduction

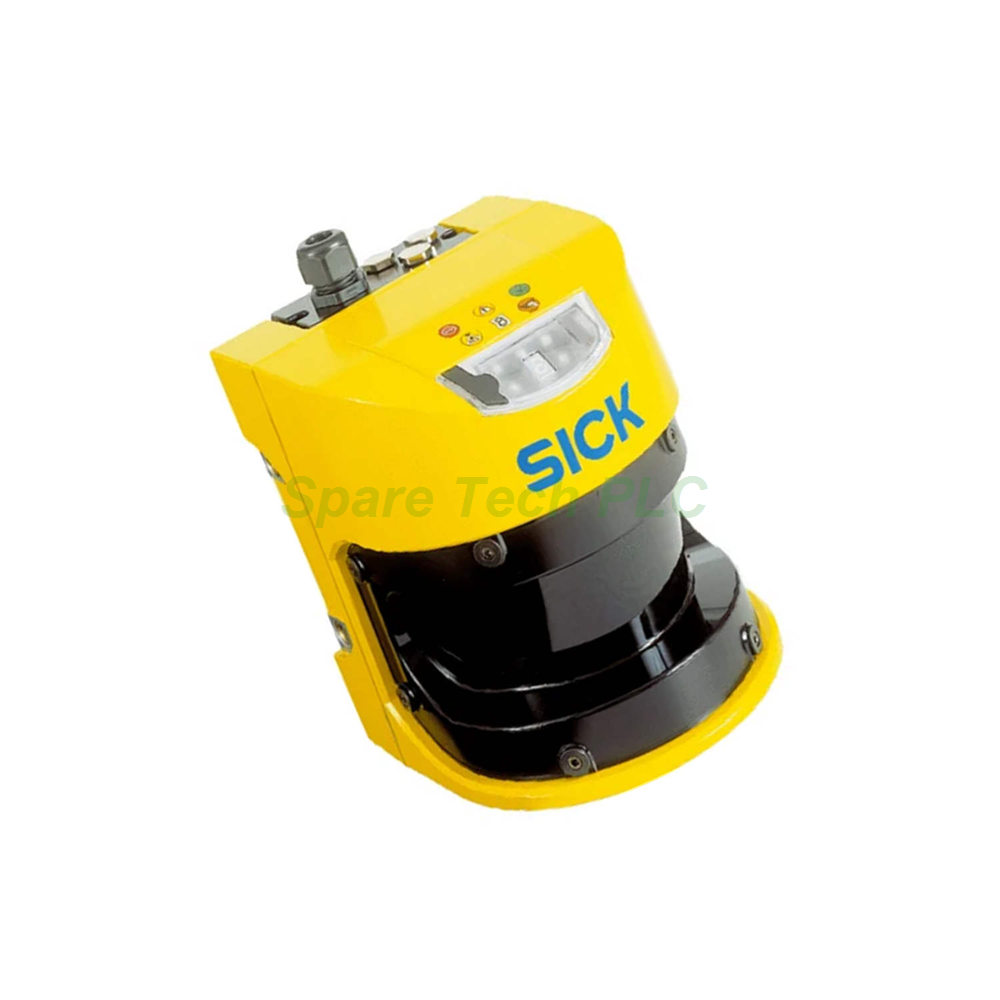

The S30A-4011CA belongs to the SICK S3000 Advanced series of safety laser scanners. It uses 2D LiDAR time-of-flight technology for precise area monitoring. This model suits hazardous area safeguarding tasks that need flexible field switching. Additionally, it provides a protective field range of 4.0 m and a radial warning field of 49 m.

Technical Specifications

The S30A-4011CA scanner operates with a pulsed laser diode at 905 nm. Its laser is Class 1 eye-safe under IEC 60825-1:2014. Specifically, the average optical power stays below 1 mW. The scanning angle reaches 190° with 0.25° or 0.5° angular resolution. Furthermore, the response time is ≤ 60 ms and can be configured from 60 ms to 120 ms.

Object resolution is configurable at 30 mm, 40 mm, 50 mm, 70 mm, or 150 mm. The systematic measurement error is typically ± 35 mm. For safety performance, the S30A-4011CA meets Type 3 per IEC 61496-1 and -3. Moreover, it achieves SIL 2 per IEC 61508, SILCL 2 per EN 62061, and PL d / Category 3 per EN ISO 13849-1.

Interface and Electrical Data

This safety scanner provides one OSSD pair with PNP output at 250 mA. It also includes one warning field output for early detection. Besides, a safe EFI bus supports master/slave networking with other SICK safety devices. The supply voltage is DC 24 V, with a range of 16.8 V to 28.8 V. In addition, the unit requires SELV or PELV safety extra-low voltage. Power consumption is typically 19 W without external output loads. The electrical connection uses a system plug with cable gland or M12 connectors.

Mechanical and Environmental Parameters

The S30A-4011CA operates between -10 °C and +50 °C. Meanwhile, storage temperature ranges from -20 °C to +70 °C. The enclosure carries an IP65 rating under EN 60529. Its dimensions measure 155 mm x 185 mm x 160 mm. In addition, the housing uses aluminum die-cast with a polycarbonate optical hood. The device weighs approximately 3.3 kg.

Key Features

The S30A-4011CA supports 4 field sets with up to 12 fields total. It offers dual or triple field mode for flexible coverage. Furthermore, 4 monitoring cases enable dynamic field switching. Specifically, switching works through local inputs or the EFI bus. Therefore, this scanner adapts well to changing safety zones in complex machinery.

Installation Guide

First, mount the scanner on a stable bracket at the correct height. Next, connect the system plug with cable gland or M12 connectors. Then, wire the OSSD pair, warning field output, and EFI bus. After that, configure the field sets and monitoring cases with SICK safety software. Finally, test the dynamic field switching before normal operation.

Packaging List

• 1x SICK S30A-4011CA Safety Laser Scanner

• 1x Mounting Bracket Set

• 1x Quick Start Guide

Shipping

We ship all orders through Fedex, UPS, and DHL. Each unit is packed with protective foam for safe transport.

FAQ

Q1: What is the protective field range of the S30A-4011CA?
A: The protective field range is 4.0 m, and the radial warning field reaches 49 m.

Q2: Which safety standards does this scanner meet?
A: It meets Type 3, SIL 2, SILCL 2, and PL d / Category 3 requirements.

Q3: What outputs does the S30A-4011CA provide?
A: It provides one OSSD pair (PNP, 250 mA), one warning field output, and a safe EFI bus.

Q4: How many field sets and monitoring cases does this model support?
A: It supports 4 field sets with up to 12 fields total and 4 monitoring cases.

Q5: What is the response time of this SICK safety scanner?
A: The response time is ≤ 60 ms and is configurable from 60 ms to 120 ms.
