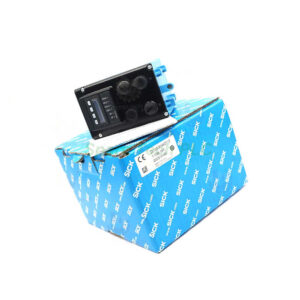

The SICK DL100-22AA2112 belongs to the Dx100 DL100 Pro series. It uses phase shift optical time-of-flight laser technology. This sensor measures distances up to 200 m on Diamond Grade reflective tape. Furthermore, it supports PROFINET IO with dual-port 100 Mbit/s. The device suits automated storage and retrieval systems, cranes, and monorail systems. Additionally, it offers high dynamic performance for fast-moving targets.
The DL100-22AA2112 provides a measuring range of 0.15 m to 200 m. It uses a visible red laser diode at 658 nm. The laser class is Class 2 per IEC 60825-1:2014. Average optical power stays below 1 mW. The output time is ≥ 1 ms, with a continuous internal measurement rate of 1 ms. Repeatability ranges from 0.5 mm to 1 mm. Measurement accuracy is typically ± 2 mm to ± 3 mm. Moreover, the maximum tracking velocity reaches 15 m/s. Maximum acceleration is 15 m/s².
The sensor includes a PROFINET IO fieldbus interface. It supports dual-port 100 Mbit/s, RT/IRT, LLDP, and MRP. Two push-pull digital outputs are configurable as PNP or NPN. They handle up to 100 mA. A multifunctional input is also available. The supply voltage ranges from DC 18 V to 30 V. Reverse-polarity protection is built in. Power consumption is typically 8 W to 10 W. For instance, power connects via a male M12 4-pin connector. PROFINET uses two female M12 4-pin D-coded connectors with SPEEDCON™.
The operating temperature range is -20 °C to +55 °C. Storage temperature ranges from -40 °C to +75 °C. The enclosure protection rating is IP65 per EN 60529. Physical dimensions are 69.4 mm x 82.5 mm x 100.2 mm. The housing uses aluminum die-cast with an acrylic glass PMMA optical window. The device weighs approximately 800 g. Therefore, it fits compact mounting spaces.
First, mount the sensor using the optical 3-axis alignment bracket. This bracket simplifies precise alignment. Next, connect the power cable to the male M12 4-pin connector. Then, attach the PROFINET cables to the two female M12 connectors. Meanwhile, verify the supply voltage stays within DC 18 V to 30 V. After that, configure the PROFINET IO settings on your controller. The integrated LC display helps with menu navigation. Finally, perform a test measurement on Diamond Grade reflective tape. Adjust the alignment bracket for optimal signal strength.
1x SICK DL100-22AA2112 Laser Distance Sensor
1x M12 4-pin Power Connector
1x Quick Start Guide
1x Mounting Bracket Compatibility Note
1. What is the maximum measuring range of the DL100-22AA2112?
The sensor measures up to 200 m on Diamond Grade reflective tape. It starts at 0.15 m.
2. Which communication protocol does this model support?
It supports PROFINET IO with dual-port 100 Mbit/s. RT/IRT, LLDP, and MRP are also included.
3. What is the tracking velocity for the DL100-22AA2112?
The maximum tracking velocity is 15 m/s. Maximum acceleration reaches 15 m/s².
4. How does the sensor handle condition monitoring?
It continuously monitors signal level attenuation, laser diode aging, and temperature. This helps predict maintenance needs.
5. What shipping methods are available?
We ship via Fedex, UPS, and DHL. Delivery times vary by destination.
