SICK CLV650-6000 Fixed Mount Barcode Scanner

SICK CLV650-6000 Fixed Mount Barcode Scanner

Product Introduction

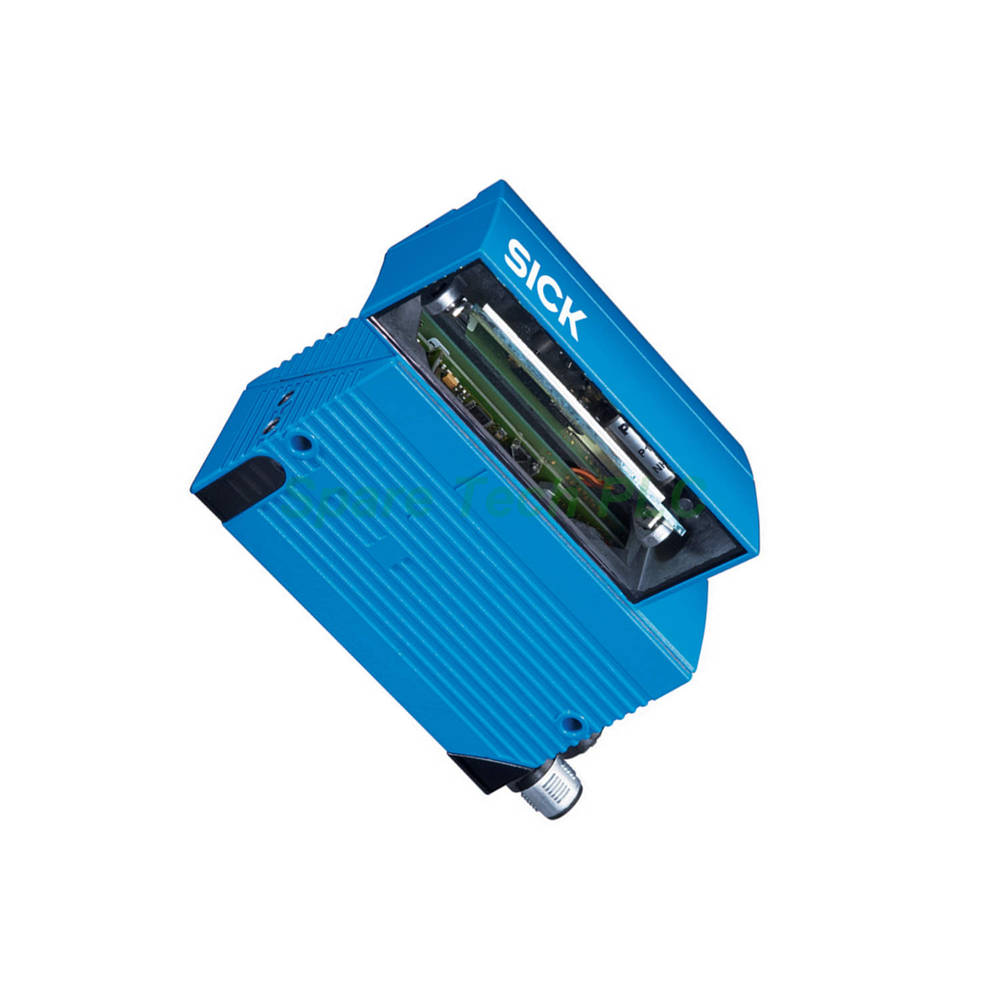

The SICK CLV650-6000 belongs to the CLV65x series of fixed mount barcode scanners. This unit uses the Standard Density version with a cable connection and an oscillating mirror. Specifically, the scanning method is a line scanner with auto focus. The visible red laser operates at 658 nm and meets laser class 2. Because of its aperture angle of ≤50°, it captures codes across a wide field. Moreover, the scanning frequency ranges from 600 Hz to 1,000 Hz. The code resolution spans 0.25 mm to 1 mm, while the reading distance covers 125 mm to 1,570 mm. Therefore, the CLV650-6000 suits logistics, packaging, and sorting lines. Its aluminum die-cast housing and IP65 rating also handle industrial environments.

Technical Specifications

First, the version is Standard Density with a cable connection type. The reading field uses an oscillating mirror, and the scanning method is a line scanner. Optical focus is auto focus. The light source is a visible red laser at 658 nm, class 2 per IEC 60825-1:2014 and EN 60825-1:2014. The aperture angle is ≤50°. Furthermore, the scanning frequency ranges from 600 Hz to 1,000 Hz. The code resolution spans 0.25 mm to 1 mm, and the reading distance covers 125 mm to 1,570 mm. The oscillating mirror functions include fixed adjustable position, oscillating with variable or fixed amplitude, and one shot. The oscillation frequency ranges from 0.5 Hz to 6.25 Hz, with a deflection angle of -20° to 20°.

Mechanical and Environmental Parameters

The CLV650-6000 uses 1 x 15-pin D-Sub HD male connector with a 0.9 m cable. The supply voltage ranges from 18 V DC to 30 V DC. Power consumption is 9.5 W. The housing is aluminum die cast in light blue RAL 5012, with a glass front screen. The enclosure rating is IP65 per EN 60529, and the protection class is III per EN 61140. Weight is 320 g with the connecting cable. Dimensions are 95 mm x 107 mm x 41 mm, and the MTBF is 100,000 h. For ambient data, EMC follows EN 61000-6-3 and EN 61000-6-2:2005. Vibration resistance meets EN 60068-2-6. The ambient operating temperature ranges from 0 °C to +40 °C, and storage temperature spans -20 °C to +70 °C. Permissible relative humidity is 90% non-condensing. Ambient light immunity reaches 2,000 lx on the bar code, and the bar code print contrast (PCS) is ≥60%. Optical indicators include 6 LEDs plus a 10-LED bar graph, and a beeper is available.

Installation Guide

Mounting the CLV650-6000 begins with positioning the scanner toward the code path. First, set the reading distance between 125 mm and 1,570 mm. Next, adjust the oscillating mirror angle within -20° to 20°. Then, select the oscillation frequency between 0.5 Hz and 6.25 Hz. After that, connect the 15-pin D-Sub HD male connector and apply 18 to 30 V DC. Meanwhile, configure the device with SOPAS ET software. Besides, insert an optional MicroSD memory card for parameter storage. Finally, confirm the LEDs and bar graph show a healthy reading rate. Keep ambient light below 2,000 lx on the code.

Packaging List

• 1 x SICK CLV650-6000 Fixed Mount Barcode Scanner

• 1 x Mounting Accessories Set

• 1 x Quick Start Guide

FAQ

Q1: What is the reading distance of the CLV650-6000?
A: The reading distance ranges from 125 mm to 1,570 mm with a code resolution of 0.25 mm to 1 mm.

Q2: Which interfaces does this scanner support?
A: It supports PROFINET, EtherCAT, serial RS-232/RS-422/RS-485, CAN, CANopen, PROFIBUS DP, and DeviceNet.

Q3: What laser class and wavelength does the CLV65x use?
A: It uses a visible red laser at 658 nm, class 2 per IEC 60825-1:2014, with a ≤50° aperture angle.

Q4: What is the scanning frequency of the CLV650-6000?
A: The scanning frequency ranges from 600 Hz to 1,000 Hz with an oscillating mirror.

Q5: What shipping methods are available?
A: We ship via Fedex, UPS, and DHL.
