SICK S30B-3011DA Safety Laser Scanner S300 Pro

SICK S30B-3011DA Safety Laser Scanner

Product Introduction

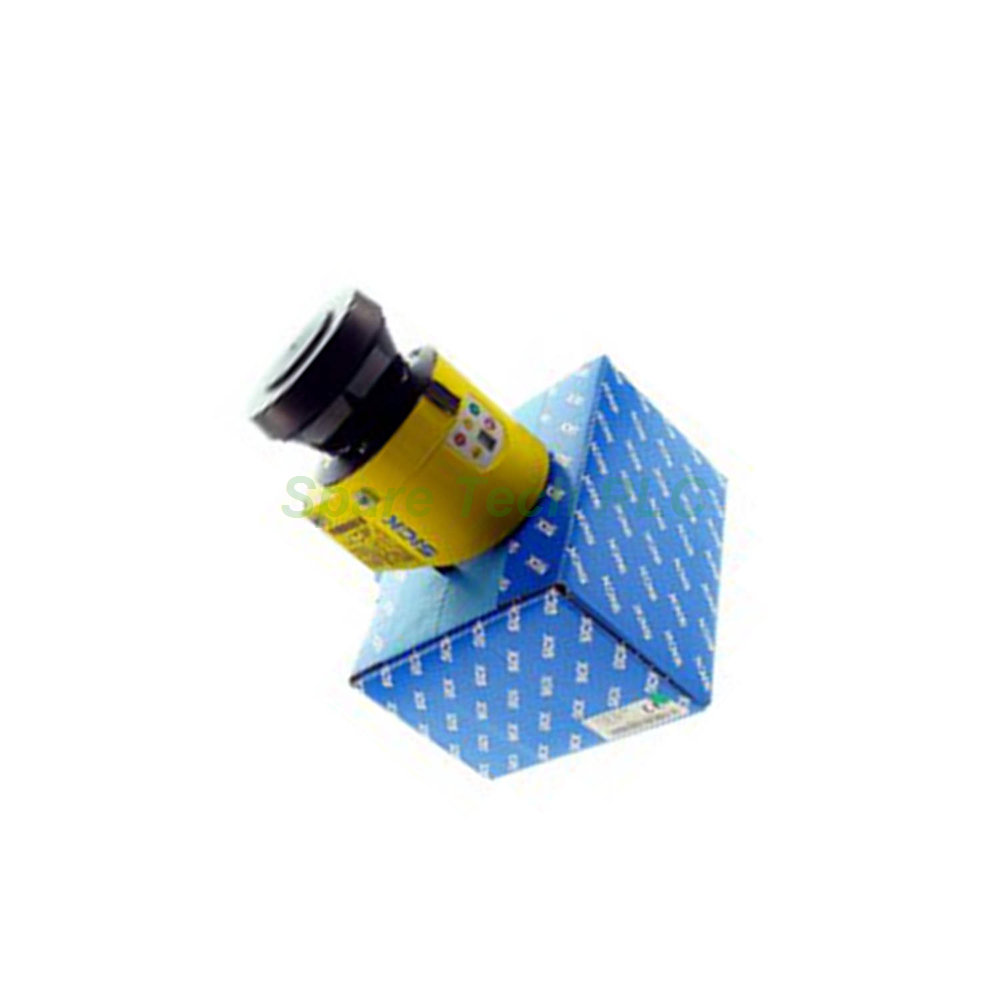

The SICK S30B-3011DA belongs to the S300 Professional product version of safety laser scanners. It ships as a sensor without a system plug and serves indoor applications. Specifically, the unit creates a 3 m protective field and an 8 m warning field at 15% reflectivity. Moreover, its distance measuring range reaches 30 m. The scanner uses triple field sets and stores 8 field sets, 24 fields, and 32 monitoring cases. Because of its 270° scanning angle, one device guards a broad machine area. In addition, the S300 Professional supports static and dynamic protective field switching. Therefore, the S30B-3011DA fits hazardous area guarding, AGV safety, and robot cell protection. Its die-cast aluminum housing and IP65 rating also resist tough factory conditions.

Technical Specifications

First, the protective field range is 3 m, while the warning field range is 8 m at 15% reflectivity. The distance measuring range is 30 m. The field set type is triple field sets, with 8 field sets and 24 fields available. Additionally, the number of monitoring cases is 32. The scanning angle reaches 270°. The resolution is configurable at 30 mm, 40 mm, 50 mm, 70 mm, or 150 mm. Furthermore, the angular resolution is 0.5°. The response time is 80 ms, and the protective field supplement is 100 mm. The number of multiple samplings ranges from 2 to 16 and is configurable. The delay of automatic reset ranges from 2 s to 60 s and is also configurable. For safety values, the safety integrity level is SIL 2 per IEC 61508. The category is Category 3 per EN ISO 13849, and the performance level is PL d. The PFHD is 8.0 x 10-8, and the mission time TM is 20 years. In the event of a fault, at least one OSSD stays in the OFF state.

Functions and Interfaces

The S30B-3011DA supports restart interlock, external device monitoring (EDM), and multiple sampling. Besides, it offers monitoring case switching and static protective field switching. Dynamic protective field switching, contour as a reference, and an integrated configuration memory are also included. Moreover, safe SICK device communication via EFI is available. The connection type is a system plug with or without a connecting cable. The scanner provides 5 universal I/Os. For inputs, it includes 1 external device monitoring (EDM), 1 reset/restart, 3 static control inputs, 5 static control inputs with EFI, 2 dynamic control inputs for an incremental encoder, and 1 standby input. For outputs, it provides 1 OSSD pair and 3 application diagnostic outputs. The OSSDs deliver 2 x 250 mA, while the diagnostic outputs supply 3 x 100 mA. Configuration happens on a PC with CDS, the Configuration and Diagnostic Software. The configuration and diagnostics interface uses RS-232 at 38.4 kBaud. Meanwhile, the data interface uses RS-422 at ≤500 kBaud. Safe SICK device communication via EFI also runs at ≤500 kBaud with a cable length of ≤50 m and a conductor cross section of 0.22 mm².

Electronics and Mechanical Parameters

The supply voltage Vs is 24 V DC, with a range of 16.8 V DC to 30 V DC. Power consumption is 0.33 A typical and 1.7 A maximum. The protection class is III per EN 50178 and EN 60950. The output type uses 2 PNP semiconductors with short-circuit protection and cross-circuit monitoring. The scanner measures 102 mm x 152 mm x 106 mm and weighs 1.2 kg. Its housing uses die-cast aluminum in RAL 1021 yellow. The optics cover is polycarbonate with a scratch-resistant coating outside. The enclosure rating is IP65 per EN 60529. The ambient operating temperature ranges from -10 °C to +50 °C. Storage temperature spans -25 °C to +50 °C. For vibration, the device meets IEC 60068-2-6, IEC 60068-2-64, IEC 60721-3-5, and IEC 61496-3, Class 5M1. For shock, it meets IEC 60068-2-27 and IEC 61496-3, Class 5M1, with 16 g for 16 ms per IEC 60068-2-29. Continuous shock ratings are 50 m/s² for 11 ms and 100 m/s² for 16 ms. The light source is a pulsed laser diode at 905 nm wavelength. The detectable remission factor ranges from 1.8% to >1,000% with reflectors.

Installation Guide

Mounting the S30B-3011DA begins with choosing a system plug for the connection type. First, secure the scanner so the scan plane covers the hazard zone. Next, account for the protective field supplement of 100 mm during layout. Then, select a resolution between 30 mm and 150 mm for the task. After that, configure field sets and monitoring cases with CDS software. Meanwhile, define restart interlock, EDM, and multiple sampling as needed. Besides, wire the OSSD pair, universal I/Os, and control inputs correctly. Finally, confirm the 80 ms response time matches the machine stopping time. Keep the RS-232 configuration port accessible for diagnostics.

Packaging List

• 1 x SICK S30B-3011DA Safety Laser Scanner

• 1 x Mounting Kit

• 1 x Quick Start Guide

FAQ

Q1: What is the protective field range of the S30B-3011DA?
A: The protective field range is 3 m, and the warning field range is 8 m at 15% reflectivity.

Q2: Which safety level does this scanner achieve?
A: It achieves SIL 2 per IEC 61508, Category 3, and PL d per EN ISO 13849 with a PFHD of 8.0 x 10-8.

Q3: How many field sets and monitoring cases does the S300 Professional support?
A: It supports 8 field sets, 24 fields, and 32 monitoring cases with triple field sets.

Q4: What supply voltage and output type does it use?
A: It uses 24 V DC (16.8 to 30 V DC) with 2 PNP semiconductor OSSDs rated at 2 x 250 mA.
