SICK CLV650-6120 Fixed Mount Barcode Scanner

SICK CLV650-6120 Fixed Mount Barcode Scanner

Product Introduction

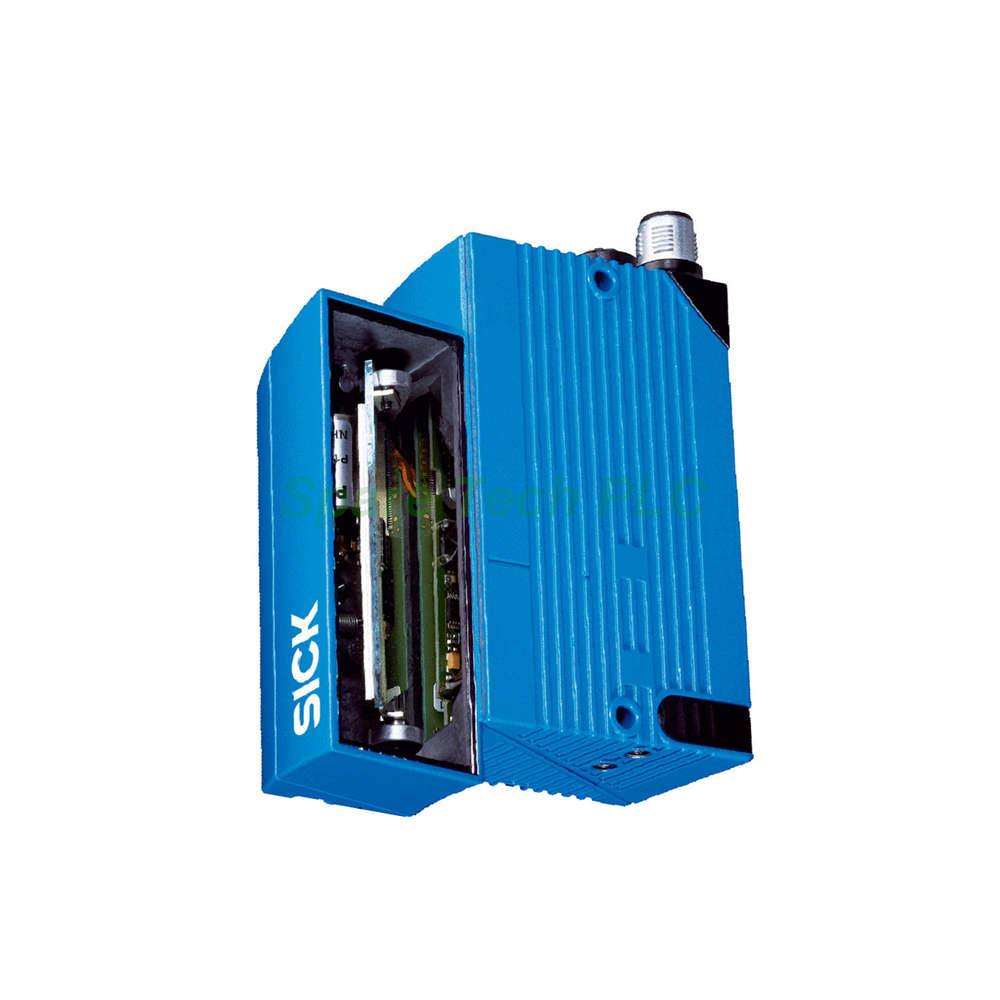

The SICK CLV650-6120 belongs to the CLV650 series of fixed mount barcode scanners. This device delivers fast and accurate 1D code reading in demanding industrial environments. Specifically, it combines Ethernet communication with an oscillating mirror for flexible scanning. The scanner supports a wide reading distance from 125 mm to 1,570 mm. Therefore, it suits conveyor sorting, packaging lines, and logistics applications.

Technical Specifications

First, the CLV650-6120 uses a visible red laser with a wavelength of 658 nm. The laser class is 2, which complies with 21 CFR 1040.10 and EN 60825-1:2014+A11:2021. Meanwhile, the aperture angle is ≤ 50°. The scanning frequency ranges from 600 Hz to 1,000 Hz. Additionally, the code resolution spans 0.25 mm to 1 mm. This range handles both standard and high-density barcodes.

The oscillating mirror offers fixed, oscillating, and one-shot functions. Its oscillation frequency is 0.5 Hz to 6.25 Hz. The angle of deflection reaches –20° to 20°. Moreover, the optical focus is auto focus. These features allow the scanner to adapt to different code positions without manual adjustment.

Performance and Decoding

The SICK CLV650-6120 reads all common 1D code types. For instance, it supports Code 39, Code 128, Code 93, Codabar, GS1-128, UPC, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Telepen, and MSI/Plessey. The print ratio ranges from 2:1 to 3:1. Furthermore, the standard decoder processes 1 to 20 codes per scan. The SMART decoder handles 1 to 6 codes per scan.

The scanner manages 1 to 50 codes per reading interval with auto-discriminating. It also supports up to 5,000 characters per reading interval. For multiplexer function in CAN operation, the limit is 500 characters. Besides, multiple readings range from 1 to 99. Therefore, users achieve high read rates on fast-moving production lines.

Interfaces and Communication

Ethernet connectivity is a core feature of the CLV650-6120. It supports TCP/IP at 10/100 MBit/s. The device also offers PROFINET, EtherNet/IP, and EtherCAT. PROFINET works as single port or dual port via the external CDF600-2 module. EtherCAT requires the optional CDF600 fieldbus module. In addition, serial interfaces include RS-232, RS-422, and RS-485. Data transmission rates range from 2,400 Baud to 115.2 kBaud.

CAN and CANopen are available at 20 kbit/s to 1 Mbit/s. PROFIBUS DP connects through the CDF600-2 module. The scanner provides 3 digital inputs and 2 digital outputs. Reading pulse triggers come from digital inputs, serial interface, auto pulse, or CAN. Optical indicators include 6 LEDs plus a 10-LED bar graph. An acoustic beeper can be switched off or assigned as a result indicator.

Mechanical and Environmental Parameters

The housing is made of aluminum die cast with a light blue color (RAL 5012). The window material is glass. The enclosure rating is IP65 according to EN 60529. Protection class is III per EN 61140. The weight is 250 g without the connecting cable. Dimensions are 95 mm x 107 mm x 41 mm. The MTBF is 100,000 h, while the laser diode MTTF is 40,000 h.

The supply voltage ranges from 18 V DC to 30 V DC. Power consumption is 9.5 W. Two M12 cylindrical connectors sit on a swivel connector. One is a 12-pin male connector, and the other is a 4-pin female connector. For ambient conditions, the operating temperature is 0 °C to +40 °C. Storage temperature ranges from –20 °C to +70 °C. Permissible relative humidity is 90%, non-condensing. Ambient light immunity reaches 2,000 lx on the barcode. The barcode print contrast (PCS) is ≥ 60%.

Installation Guide

First, mount the SICK CLV650-6120 on a stable bracket near the conveyor. Use the swivel connector to adjust the scanning angle. Next, connect the M12 cables for power and Ethernet. The supply voltage must stay within 18 V DC to 30 V DC. Then, align the oscillating mirror to cover the reading field. The reading distance should fall between 125 mm and 1,570 mm.

After wiring, configure the scanner with SOPAS ET software. This tool sets parameters like scanning frequency, code types, and output format. Meanwhile, the auto focus adjusts to different code distances. For network integration, assign a fixed IP address. The CLV650-6120 also accepts a MicroSD memory card for parameter storage. Finally, test the reading pulse and verify the LED indicators. Proper grounding reduces electromagnetic interference.

Packaging List

• 1 x SICK CLV650-6120 Fixed Mount Barcode Scanner

• 1 x M12 12-pin male connector cable

• 1 x M12 4-pin female connector cable

• 1 x Mounting bracket set

• 1 x Quick start guide

Shipping methods: Fedex, UPS, DHL.

FAQ

1. What is the reading distance of the CLV650-6120?
The reading distance ranges from 125 mm to 1,570 mm. This range supports many conveyor and sorting applications.

2. Which barcode types does this scanner support?
It reads all common 1D codes. Examples include Code 39, Code 128, UPC, GS1-128, and Interleaved 2 of 5.

3. What is the power supply requirement?
The scanner needs 18 V DC to 30 V DC. Power consumption is 9.5 W.

4. Can I use this scanner with PROFINET?
Yes. The CLV650-6120 supports PROFINET single port. Dual port requires the external CDF600-2 module.

5. What software configures the SICK CLV650-6120?
SOPAS ET software handles configuration. It sets scanning parameters, interfaces, and output formats.
