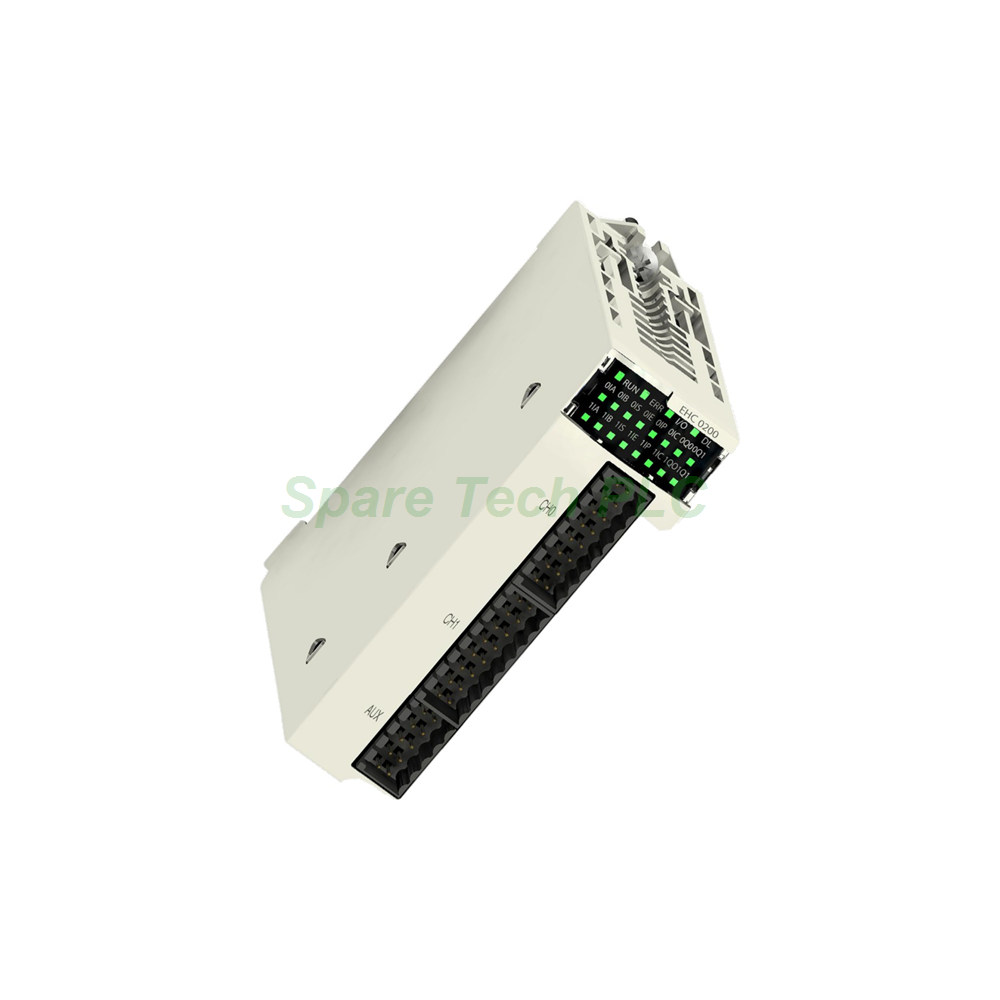

Schneider BMXEHC0200 Modicon X80 Counter Module

Schneider BMXEHC0200 Modicon X80 High-speed Counter Module, 2-channel

Product Introduction

The Schneider Electric BMXEHC0200 is a high-speed counter module in the Modicon X80 series. It provides two counting channels in a single slot. Specifically, the module handles incremental and absolute encoder signals. Furthermore, it reaches a maximum frequency of 60 kHz per channel. Therefore, it suits fast motion, flow, and position measurement tasks. This unit shares the same I/O platform as the M340 and M580.

Technical Specifications

The BMXEHC0200 offers two application channels. Each channel works as a high-speed counter. The maximum frequency reaches 60 kHz. In addition, the module supports incremental and absolute encoder counting modes. Channel-to-channel isolation protects signals from interference. Meanwhile, a module status LED supports quick diagnostics. The module occupies one slot on the X-bus backplane.

Electrical Parameters

Supply voltage for the BMXEHC0200 is 24 V DC. The backplane delivers this power directly. Power consumption reaches 2.4 W. Besides, bus current draw is 100 mA at 24 V DC. These values help engineers plan power budgets. The current demand stays within normal X80 rack limits. Therefore, the module suits standard control cabinet designs.

Mechanical and Environmental Data

The module measures 100 × 28 × 93 mm. It weighs only 0.16 kg. The housing carries an IP20 protection rating. Operating temperature ranges from 0°C to +60°C. Storage temperature spans -25°C to +70°C. Relative humidity stays between 5% and 95%. However, condensation must not occur. These ratings suit standard control cabinets. They also fit many factory floor environments.

Installation Guide

First, verify the X-bus backplane has an open slot. Next, align the BMXEHC0200 with the slot guides. Then slide the module firmly into place. After that, tighten the retaining screw. The backplane supplies 24 V DC power automatically. No external wiring is needed for supply. For encoder signals, connect the wiring to the front terminals. Specifically, match the counting mode to your encoder type. Finally, configure the counter parameters in your software. The module is now ready for high-speed counting tasks.

Packaging List

• 1 × Schneider BMXEHC0200 Modicon X80 High-speed Counter Module

• 1 × Original Box

• 1 × Protective Foam Insert

Shipping methods include Fedex, UPS, and DHL.

FAQ

Q1: What is the main function of the BMXEHC0200?
A: It acts as a two-channel high-speed counter for Modicon X80 systems. The unit reads incremental and absolute encoder signals. It works with M340 and M580 platforms.

Q2: What is the maximum counting frequency?
A: The BMXEHC0200 reaches 60 kHz per channel. This speed suits fast motion and flow measurement. It handles demanding counting tasks.

Q3: Does this module provide channel isolation?
A: Yes, the BMXEHC0200 offers channel-to-channel isolation. This design reduces signal interference between channels. It improves measurement reliability.

Q4: How much power does the module consume?
A: Power consumption is 2.4 W. Bus current draw is 100 mA at 24 V DC. The backplane provides all needed power.

Q5: What shipping options are available?
A: We ship via Fedex, UPS, and DHL. Each order includes the module, original box, and foam insert. Delivery times vary by destination.
