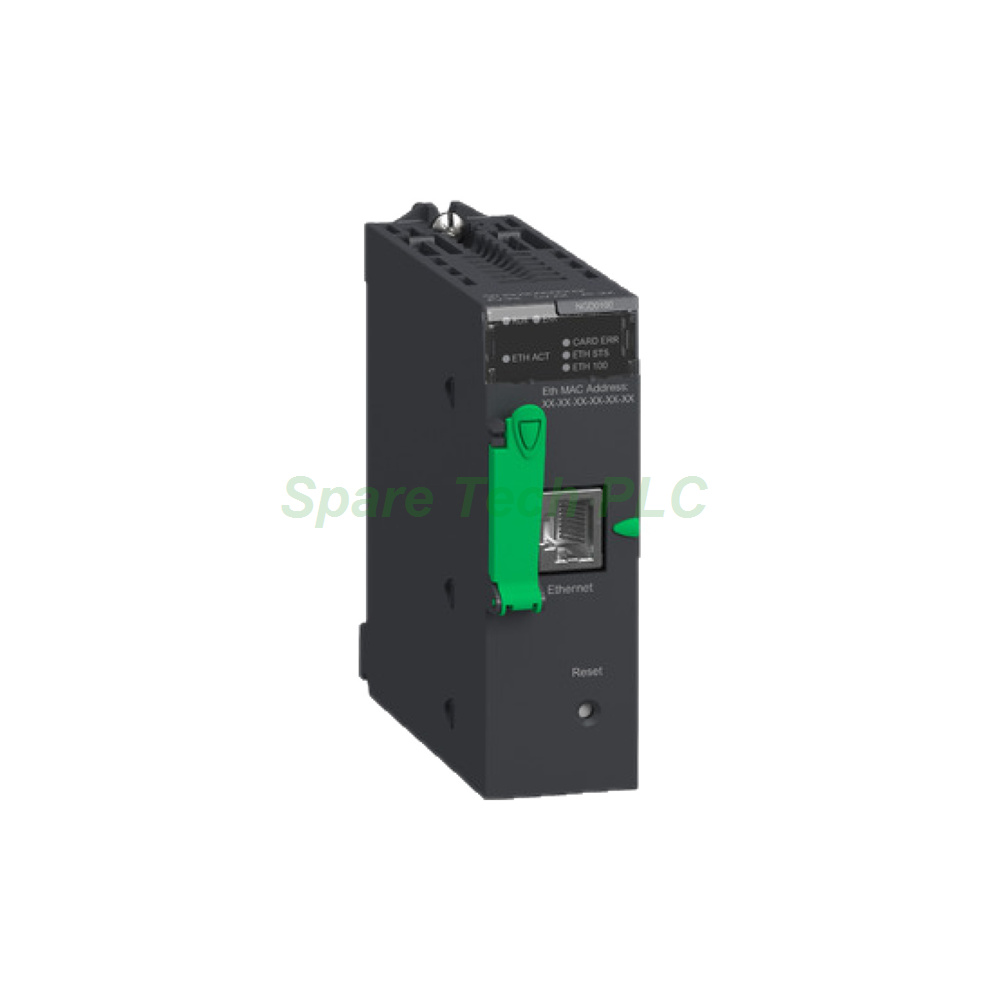

The Schneider Electric BMXNGD0100 is a protocol gateway module in the Modicon X80 series. It bridges different industrial networks inside one control system. Specifically, the module converts data between multiple industrial protocols. Furthermore, its built-in ports cover serial and fieldbus connections, depending on configuration. Therefore, it helps integrate legacy devices with modern controllers. This unit shares the same I/O platform as the M340 and M580.
The BMXNGD0100 acts as a protocol gateway. It provides serial and fieldbus ports based on setup. The module performs multi-protocol conversion between industrial networks. In addition, it handles protocol translation at the gateway level. Meanwhile, the module occupies one slot on the X-bus backplane. This compact footprint keeps cabinet space free for other modules.
Supply voltage for the BMXNGD0100 is 24 V DC. The backplane delivers this power directly. Power consumption reaches 3.6 W. Besides, bus current draw is 150 mA at 24 V DC. These values help engineers plan power budgets. The current demand stays within normal X80 rack limits. Therefore, the module suits standard control cabinet designs.
The module measures 100 × 28 × 93 mm. It weighs only 0.16 kg. The housing carries an IP20 protection rating. Operating temperature ranges from 0°C to +60°C. Storage temperature spans -25°C to +70°C. Relative humidity stays between 5% and 95%. However, condensation must not occur. These ratings suit standard control cabinets. They also fit many factory floor environments.
First, verify the X-bus backplane has an open slot. Next, align the BMXNGD0100 with the slot guides. Then slide the module firmly into place. After that, tighten the retaining screw. The backplane supplies 24 V DC power automatically. No external wiring is needed for supply. For network connections, use the front ports. Specifically, select the serial or fieldbus layout your project needs. Finally, configure the protocol conversion rules in your software. The module is now ready to translate data between networks.
1 × Schneider BMXNGD0100 Modicon X80 Protocol Gateway Module
1 × Original Box
1 × Protective Foam Insert
Shipping methods include Fedex, UPS, and DHL.
Q1: What is the main function of the BMXNGD0100?
A: It acts as a protocol gateway for Modicon X80 systems. The unit converts data between different industrial protocols. It works with M340 and M580 platforms.
Q2: Which ports does this module provide?
A: The BMXNGD0100 provides serial and fieldbus ports. The exact layout depends on your configuration. You can adapt it to mixed-network projects.
Q3: How much power does the module consume?
A: Power consumption is 3.6 W. Bus current draw is 150 mA at 24 V DC. The backplane provides all needed power.
Q4: Can I use this module to connect legacy devices?
A: Yes, the gateway translates between different industrial protocols. Therefore, it links older serial devices to modern networks. This feature simplifies system upgrades.
Q5: What shipping options are available?
A: We ship via Fedex, UPS, and DHL. Each order includes the module, original box, and foam insert. Delivery times vary by destination.
| Brand Name | |
| Model No. | BMXNGD0100 |
| Product Type | Protocol Gateway Module |
| hasMerchantReturnPolicy | Adjust according to reality |
| Shippingdetails | Adjust according to reality |
