Schneider 140NOA62200 Quantum Interbus Master Module

140NOA62200 Modicon Interbus Gen 4 Master Module

Product Introduction

The 140NOA62200 module functions as a powerful Interbus master for the Modicon Quantum series. This Generation 4 master module delivers reliable fieldbus communication for standard automation tasks. It supports the PCP V2.0 profile, which enhances data exchange capabilities with connected devices. Engineers choose the Schneider 140NOA62200 for its compatibility with major Quantum CPUs, including the 140CPU11303, 140CPU43412A, and 140CPU53414B. Additionally, this module works seamlessly with both Concept and ProWORX 32 software environments. Its robust memory architecture and comprehensive diagnostic LEDs ensure efficient system monitoring and maintenance.

Key Technical Specifications

This section outlines the essential communication parameters of the 140NOA62200.

• Communication Protocol: The module uses Interbus RS485 with electrical isolation for reliable data transmission.

• Transmission Rate: It operates at a fixed speed of 500 kbit/s, conforming to DIN 66020 standards.

• Software Compatibility: The 140NOA62200 works with Concept software and ProWORX 32.

• Software Version: It requires software version V 2.5 SR2 or later for full functionality.

• Cable Type: The module uses twisted pair cabling for network connections.

• Maximum Cable Distance: It supports up to 20 meters between devices on the Interbus network.

• Current Consumption: The device draws 800 mA from the Quantum rack's backplane.

• Power Dissipation: It dissipates approximately 4 W of power during normal operation.

Memory Architecture and Data Handling

The Schneider 140NOA62200 incorporates a sophisticated memory structure to manage Interbus communication effectively. Specifically, it features 128 kB of memory alongside a 256 kB firmware EPROM for stable operation. Furthermore, the module includes 2 kB of dual-port RAM for fast data exchange with the CPU. For data storage, it provides 256 kB plus an additional 32 kB of RAM. The 140NOA62200 also contains a 64 kB Interbus command sequence EEPROM and a 64 kB multi-port RAM. This generous memory allocation ensures smooth handling of complex command sequences and large data volumes, making the module suitable for demanding industrial environments.

Product Compatibility and Rack Configuration

Understanding the compatibility of the 140NOA62200 is crucial for proper system design. The module supports specific configurations based on the CPU type in use. For instance, a system can accommodate up to six 140NOA62200 modules when using the 140CPU11303 processor. However, when using either the 140CPU43412A or the 140CPU53414B, the system supports a maximum of two Interbus master modules. Additionally, the Schneider 140NOA62200 is designed exclusively for use in a local rack configuration. This restriction ensures optimal performance and reliable communication with the Interbus network. Always verify your CPU type and rack configuration before installation to guarantee proper system operation.

Diagnostic and Status Indication

The 140NOA62200 provides extensive local signalling through a comprehensive array of LEDs. This feature enables rapid troubleshooting and system status verification without additional tools. The front panel includes twelve LEDs organized for clarity.

• Green LEDs (4):

  • ACTIVE: Indicates active communication with the Quantum CPU.

  • RUN: Confirms firmware is operational and the module is running.

  • IS-B RUN: Shows the Interbus is functioning normally and carrying data.

• Red LEDs (8):

  • F: Signals a general module fault.

  • DEA 202: Indicates an initialization fault.

  • Master: Shows the Interbus master is not operational.

  • Fault: The Interbus module has reported a fault.

  • Memory: Signals a memory fault.

  • Peripheral Bus: Indicates a peripheral bus fault.

  • Processor: Shows a processor fault within the master.

  • Remote Bus: Signals a fault on the remote bus segment.

• Yellow LED (1):

  • Indicates one or more bus segments have been shut down.

Therefore, operators can quickly identify issues and take corrective action based on the LED status patterns.

Mechanical and Environmental Specifications

The 140NOA62200 is built to withstand typical industrial control room environments.

• Module Format: It uses the standard Quantum module form factor.

• Electrical Connection: Two SUB-D 9 connectors provide the Interbus link and connection to the network.

• Operating Temperature: The module operates reliably from 0 to 60 °C (32 to 140 °F).

• Storage Temperature: It can be stored between -40 and 85 °C (-40 to 185 °F).

• Relative Humidity: The device tolerates up to 95% humidity without condensation.

• Operating Altitude: It functions effectively at altitudes up to 5000 meters (16404.2 feet).

• Certifications: The 140NOA62200 holds CSA and UL certifications.

Additionally, this module offers robust protection against electrostatic discharge, meeting IEC 801-2 standards with 4 kV contact and 8 kV air discharge. It also withstands electromagnetic fields up to 10 V/m from 80 to 1000 MHz, as per IEC 801-3.

Installation and Configuration Guidelines

Installing the Schneider 140NOA62200 requires attention to specific procedures. First, ensure the Quantum rack power supply is completely disconnected before inserting the module. Next, slide the module into an available slot within the local rack until it seats firmly against the backplane connector. Then, secure the module using the two retaining screws on the top and bottom of the unit. After mechanical installation, connect the Interbus cabling to the appropriate SUB-D 9 connector.

For software configuration, use Concept or ProWORX 32 software to set up the 140NOA62200. Assign the correct module profile (PCP V2.0) and configure the Interbus network parameters. Finally, verify that the software version matches V 2.5 SR2 or higher. Once configured, the module will automatically scan the Interbus network and establish communication with connected devices.

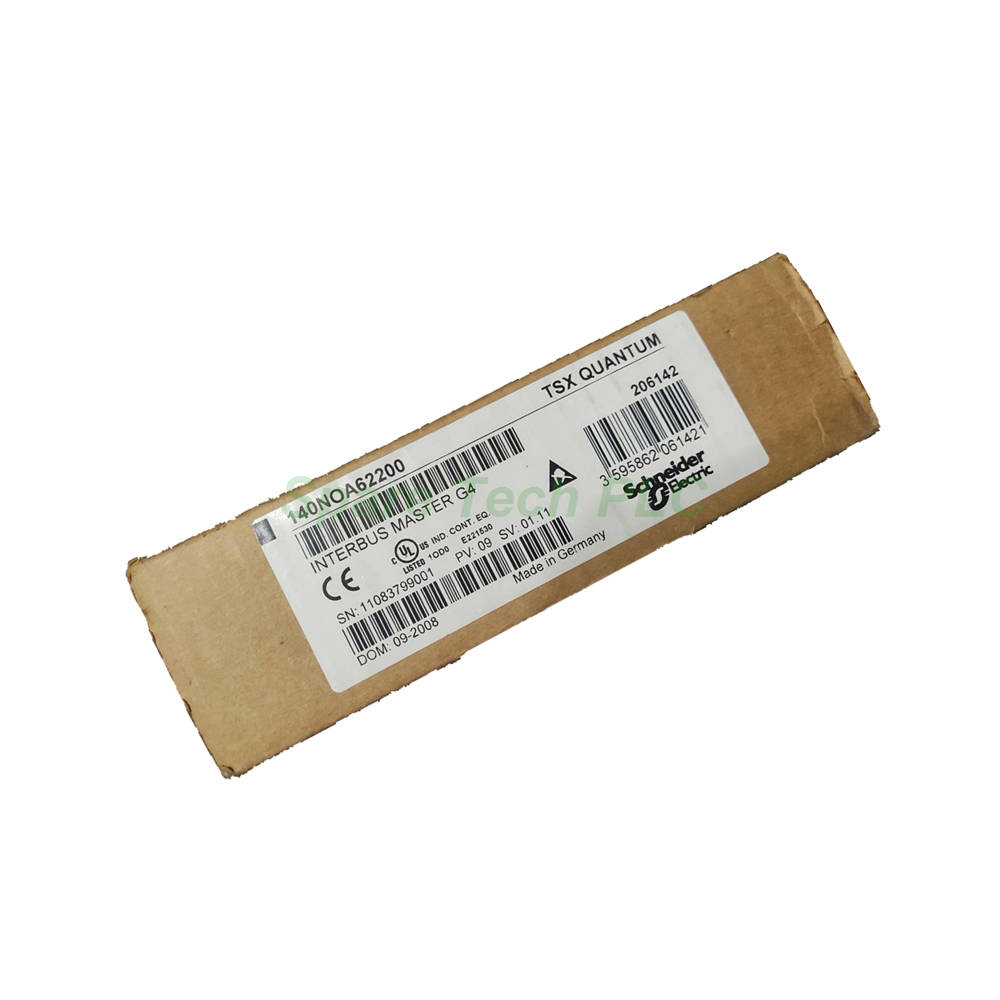

Packaging and Shipping

When you order the Schneider 140NOA62200, you will receive everything needed for installation.

• Packaging Content:

  • 1 x Modicon Quantum Interbus Master Module (140NOA62200)

  • 1 x Mounting hardware kit (screws and washers)

  • 1 x Quick reference guide (digital version available for download)

All items are carefully packed to ensure safe transportation. We ship globally using leading courier services, including FedEx, UPS, and DHL. This ensures your 140NOA62200 arrives quickly and in perfect condition, minimizing any delay to your project schedule.

Frequently Asked Questions (FAQ)

1. What software is compatible with the 140NOA62200 Interbus module?
The Schneider 140NOA62200 is compatible with Concept software and ProWORX 32. You need software version V 2.5 SR2 or later to configure and operate this module correctly.

2. How many 140NOA62200 modules can I install in one Quantum rack?
The maximum number depends on your CPU. With a 140CPU11303, you can install up to six modules. With a 140CPU43412A or 140CPU53414B, the maximum is two modules.

3. What is the maximum cable length for the Interbus network using this master module?
The 140NOA62200 supports a maximum cable distance of 20 meters between devices on the Interbus RS485 network using twisted pair cabling.

4. What do the red LEDs indicate on the 140NOA62200 front panel?
The red LEDs indicate various fault conditions. For example, the F LED signals a general module fault, while the Memory LED shows a memory fault. Refer to the module documentation for specific LED combinations.

5. Does the 140NOA62200 support PCP communication?
Yes, the Schneider 140NOA62200 is specifically designed with a PCP V2.0 module profile. This enables enhanced parameterization and data exchange capabilities with connected Interbus devices.
