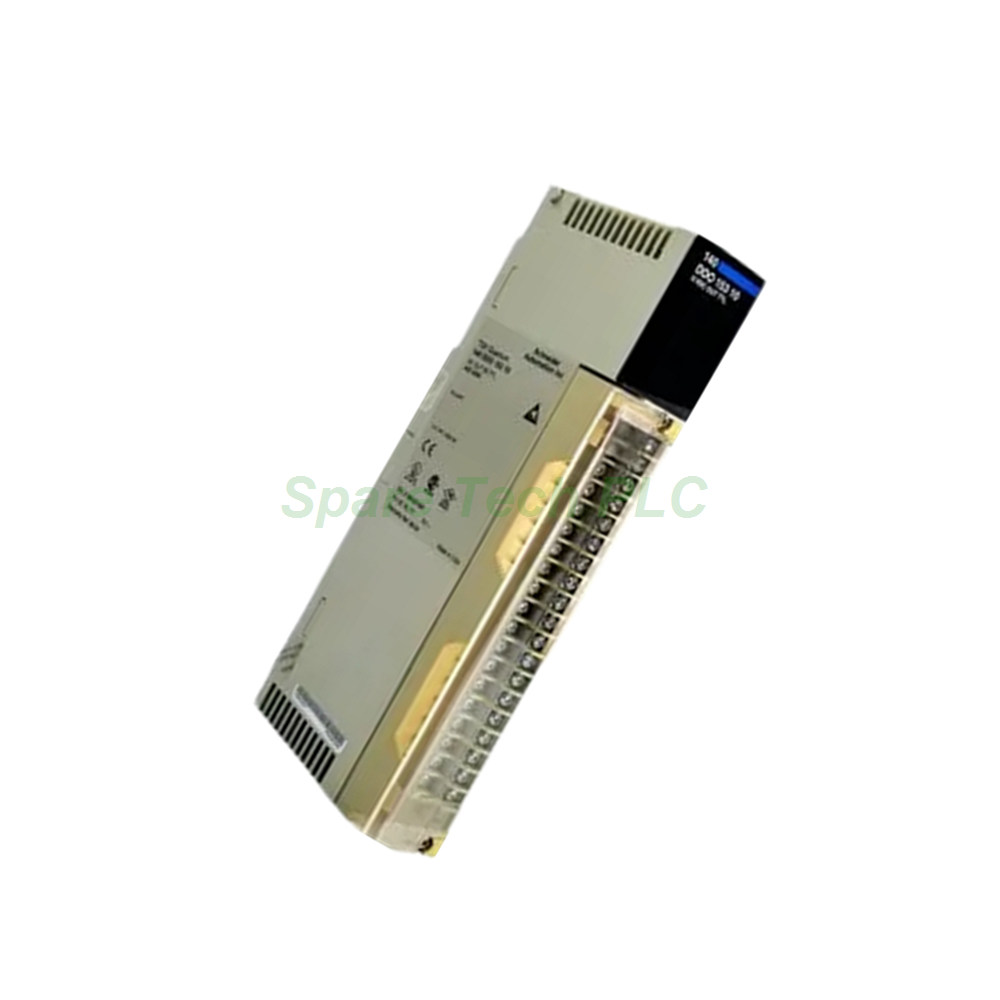

Schneider 140DDO15310 Quantum Output Module 32 Ch

140DDO15310 Schneider Electric TTL Output Module

Product Introduction

The Schneider Electric 140DDO15310 module forms a core component of the Modicon Quantum automation platform. This TTL discrete output module provides 32 discrete output channels, organized into four groups of eight. It operates with a 5V DC supply and uses a positive (sink) output configuration. Engineers frequently select the 140DDO15310 for applications that demand high-speed, low-voltage digital signalling. Its compact standard format fits seamlessly into Quantum racks. Additionally, the module includes comprehensive protection features, which safeguard both the module and connected field devices. For system integrators seeking a dependable 32-output solution, the Schneider 140DDO15310 represents a field-proven choice.

Technical Specifications of the 140DDO15310

The Schneider Electric 140DDO15310 offers robust technical performance for demanding control tasks. It requires a rated supply voltage between 4 and 5.5V DC, with a typical bus current draw of 350 mA. Moreover, the module's total current consumption reaches 2800 mA at 5V DC. It addresses two output words within the controller's memory map.

Each output channel includes an internal pullup resistor of 440 Ohms. The guaranteed voltage for state 1 is ≤ 0.2V, ensuring clear logic levels. Furthermore, the absolute maximum output pulse rating reaches 15V for 0.0013 seconds, providing a margin against voltage spikes. The response time is exceptionally fast, with transitions from state 0 to 1 and 1 to 0 both completed within ≤ 250 µs under resistive loads.

Load Capacity and Protection Mechanisms

When considering load management, the 140DDO15310 demonstrates clear specifications. The maximum load current per point is 75 mA, while each group (8 channels) can handle up to 600 mA. The entire module supports a maximum of 2.4 A across all outputs. For brief transient events, each point withstands a surge current of 750 A for 0.5 ms.

Protection is built directly into the design. Transient voltage suppression protects the outputs from damaging spikes. Additionally, an internal fuse provides overcurrent protection for the module. The module also features clear fault indication via red LEDs, which signal both loss of field power and a blown fuse. Consequently, troubleshooting becomes faster and more straightforward.

Isolation, Environment, and Compliance

The Schneider 140DDO15310 offers robust galvanic isolation of 500 Vrms for one minute between groups. This isolation enhances system reliability and prevents ground loop issues. It operates reliably across a wide ambient temperature range, from 0°C to 60°C. Storage temperatures may range from -40°C to 85°C. Furthermore, the module tolerates relative humidity up to 95% without condensation. It functions at altitudes up to 5000 meters.

This module holds multiple certifications, including RMRS, GOST, C-tick, and FM Class 1 Division 2. It also complies with UL 508 and CSA C22.2 No 142 standards. Moreover, it passes IEC 801-2 electrostatic discharge tests at 4 kV contact and 8 kV air. Its electromagnetic field resistance meets 10 V/m from 80 to 2000 MHz per IEC 801-3.

Local Signalling and Diagnostics

On the front panel, the Schneider Electric 140DDO15310 provides comprehensive visual diagnostics. A green LED indicates active bus communication. Meanwhile, a red LED illuminates for any external fault condition. Additionally, 32 green LEDs directly show the status of each input channel. Therefore, operators can quickly verify output states without needing a programming terminal. This feature significantly reduces maintenance and commissioning time.

Installation Guidelines for the 140DDO15310

Installing the 140DDO15310 follows standard Modicon Quantum procedures. First, ensure the rack power is off before inserting or removing the module. Then, align the module with the rack's card guides and slide it firmly into place until the retaining clips lock securely. Next, connect the field wiring to the appropriate terminal blocks, respecting the group isolation boundaries. Finally, apply power and verify the active LED illuminates. Remember to observe proper grounding practices to maintain isolation integrity and minimize electrical noise.

Packaging List

• One Schneider Electric 140DDO15310 TTL discrete output module

• One standard module retaining clip (pre-installed)

• Product identification label

• Quick start guide (multilingual)

Shipping will be via FedEx, UPS, or DHL.

Frequently Asked Questions (FAQ)

1. What is the output voltage level of the 140DDO15310?
The 140DDO15310 provides a discrete output voltage of 5V DC, with a state 1 guaranteed voltage of ≤ 0.2V.

2. How many output channels does the Schneider 140DDO15310 offer?
This module provides 32 discrete output channels, arranged in four independent groups of 8 channels each.

3. What type of output configuration does the 140DDO15310 use?
The Schneider Electric 140DDO15310 uses a positive (sink) TTL output type, suitable for low-voltage logic applications.

4. What protection features are included with this output module?
Built-in transient voltage suppression and an internal fuse protect the 140DDO15310. Additionally, red LEDs indicate blown fuse or loss of field power faults.

5. Can the 140DDO15310 withstand harsh industrial environments?
Yes, it operates from 0 to 60°C, stores from -40 to 85°C, and holds FM Class 1 Division 2 and UL 508 certifications for safety and reliability.
