Schneider 140CRA21110 Quantum DIO Drop Interface Module

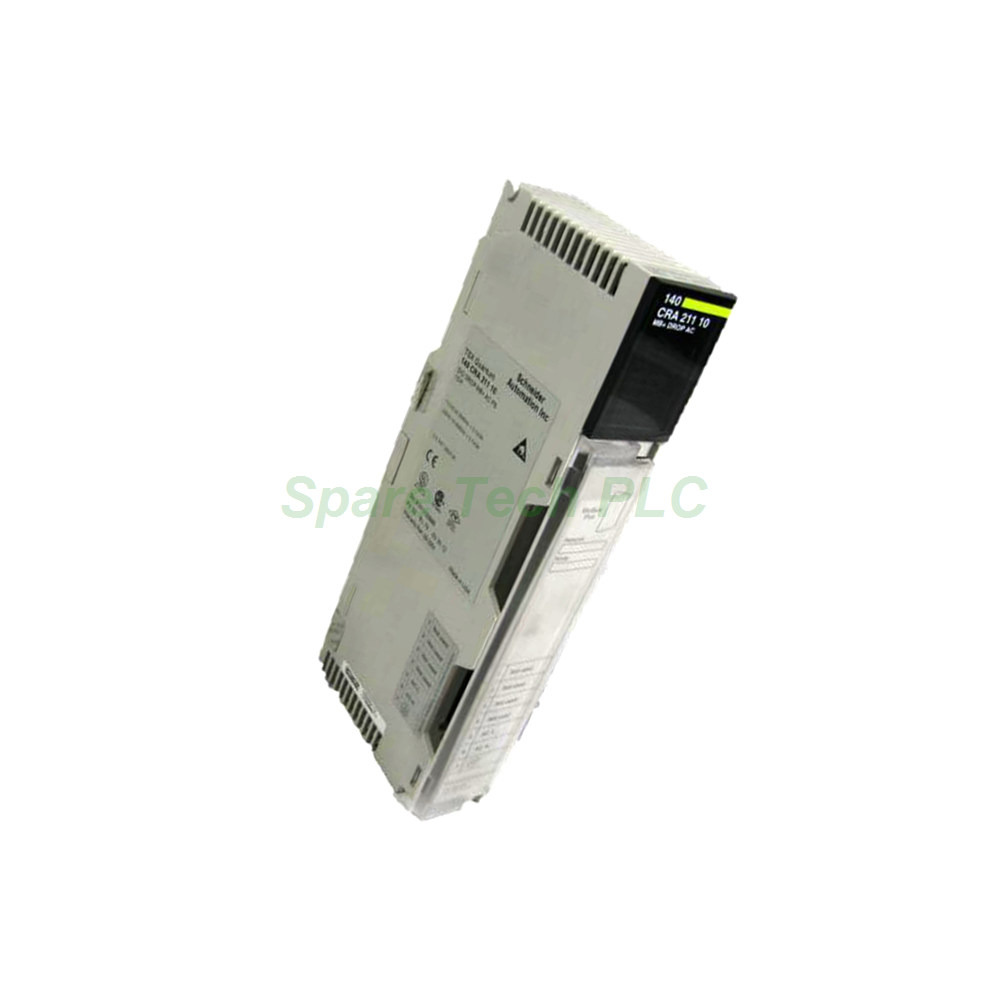

140CRA21110 Modicon DIO Drop Interface Module

Product Introduction

The 140CRA21110 module serves as a critical DIO drop interface within the Modicon Quantum automation platform. This interface enables seamless communication between the Quantum processor and distributed I/O drops located across your facility. Engineers value the Schneider 140CRA21110 for its wide-range power supply capability, accepting 85 to 276 V AC input. The module offers a single port for straightforward connectivity to the remote I/O network. Furthermore, it provides comprehensive diagnostic features, including RAM address verification and checksum validation during startup and runtime. Consequently, this module ensures reliable data exchange and simplifies system troubleshooting.

Key Technical Specifications

This section details the core electrical and communication parameters of the 140CRA21110.

• Power Supply: The module accepts a nominal voltage of 115/230 V AC with a wide operating range of 85 to 276 V.

• Supply Frequency: It functions with line frequencies between 47 and 63 Hz.

• Maximum Supply Current: The 140CRA21110 draws 0.2 A at 115 V and 0.4 A at 230 V.

• Inrush Current: It experiences 10 A at 115 V and 20 A at 230 V during startup.

• Rated Power: The module consumes up to 50 VA of apparent power.

• Associated Fuse Rating: A 1.5 A fuse provides protection for the input circuit.

• Output Voltage: It delivers a regulated 5.1 V DC output for connected devices.

• Nominal Output Current: The Schneider 140CRA21110 supplies up to 3 A continuously.

• I/O Capacity: It supports 30 input words and 32 output words for robust I/O handling.

Protection and Diagnostic Features

The 140CRA21110 incorporates several protective mechanisms to ensure system stability and longevity. First, the module includes built-in short-circuit protection to prevent damage from accidental wiring faults. Additionally, it features output overvoltage protection, which safeguards connected I/O devices from voltage spikes. These protective features significantly enhance the reliability of your control system.

Moreover, the Schneider 140CRA21110 offers comprehensive diagnostic capabilities. During startup, the module performs RAM address and checksum verification to confirm memory integrity. Similarly, during runtime, it continuously monitors RAM addresses and checksums to detect any anomalies. These diagnostics provide early warning of potential issues, allowing operators to take preventive action before system failures occur. Therefore, the 140CRA21110 contributes to higher system uptime and reduced maintenance costs.

Power Dissipation and Environmental Ratings

The 140CRA21110 is engineered for reliable operation in typical industrial environments.

• Power Dissipation: The module dissipates up to 11 W of thermal energy during normal operation.

• Connections: A 7-pole terminal block provides secure and organized wiring connections.

• Module Format: It uses the standard Quantum module form factor for easy installation.

• Operating Temperature: The interface operates reliably from 0 to 60 °C (32 to 140 °F).

• Storage Temperature: It can be stored between -40 and 85 °C (-40 to 185 °F).

• Relative Humidity: The 140CRA21110 tolerates up to 95% humidity without condensation.

• Operating Altitude: It functions effectively at altitudes up to 5000 meters (16404.2 feet).

Additionally, this module demonstrates excellent resistance to electrostatic discharge, meeting IEC 801-2 standards with 4 kV contact and 8 kV air discharge. It also withstands electromagnetic fields up to 10 V/m from 80 to 2000 MHz, as per IEC 801-3. The Schneider 140CRA21110 holds multiple certifications, including UL 508, CSA Class 1 Division 2, DNV, C-tick, and GOST, ensuring compliance with global standards.

Backplane Compatibility and System Integration

Understanding backplane compatibility is essential for proper system design with the 140CRA21110. This DIO drop interface works with various typical backplane configurations. Specifically, it supports 2-position, 3-position, 4-position, 6-position, 10-position, and 16-position backplanes. This flexibility allows you to configure the module in virtually any Quantum rack setup.

For integration, the Schneider 140CRA21110 connects to the Quantum processor via its single communication port. This port handles all I/O data exchange, supporting 30 input and 32 output words. The module operates as a drop interface, meaning it manages communication between the main controller and distributed I/O modules located in separate racks. Consequently, this architecture supports scalable system designs where I/O can be placed close to field devices, reducing wiring costs and improving signal integrity.

Installation and Wiring Guidelines

Installing the 140CRA21110 requires following specific procedures for safe and reliable operation. First, always disconnect the main power supply before inserting or removing the module. Next, slide the module into the chosen backplane slot until it firmly engages with the connector. Secure the module using the retaining screws provided. For electrical connections, use the 7-pole terminal block located on the front of the module.

When wiring the power input to the 140CRA21110, observe correct polarity and use appropriately sized conductors. Connect the 115/230 V AC supply to the designated terminals on the block. Additionally, install a 1.5 A fuse in series with the live conductor for protection. Finally, connect the communication cabling to the single port, ensuring proper termination according to the system architecture. After installation, power up the system and verify the module's operational status through the diagnostic indicators.

Packaging and Shipping

When you order the Schneider 140CRA21110, you will receive a complete package ready for installation.

• Packaging Content:

  • 1 x Modicon Quantum DIO Drop Interface Module (140CRA21110)

  • 1 x 7-pole terminal block (pre-installed)

  • 1 x Mounting hardware kit (screws and washers)

  • 1 x Product documentation leaflet (digital version available)

All items are securely packaged to prevent damage during transit. We ship globally using trusted courier services, including FedEx, UPS, and DHL. This ensures your 140CRA21110 arrives safely and on time, ready for immediate installation in your control system.

Frequently Asked Questions (FAQ)

1. What power supply does the 140CRA21110 require?
The Schneider 140CRA21110 accepts a wide-range AC input from 85 to 276 V, with nominal ratings of 115/230 V AC at 47 to 63 Hz. It consumes a maximum of 50 VA.

2. How many I/O words does this drop interface support?
The 140CRA21110 supports 30 input words and 32 output words, providing substantial capacity for distributed I/O applications within the Modicon Quantum system.

3. What backplane configurations are compatible with this module?
The Schneider 140CRA21110 works with various typical backplanes, including 2, 3, 4, 6, 10, and 16-position racks, offering flexibility in system design.

4. Does the module include protection against short circuits?
Yes, the 140CRA21110 features built-in short-circuit protection for both the output and overvoltage protection. It also requires an external 1.5 A fuse for input protection.

5. What diagnostics does the 140CRA21110 perform?
The Schneider 140CRA21110 performs RAM address and checksum diagnostics during both startup and runtime, ensuring memory integrity and reliable system operation.
