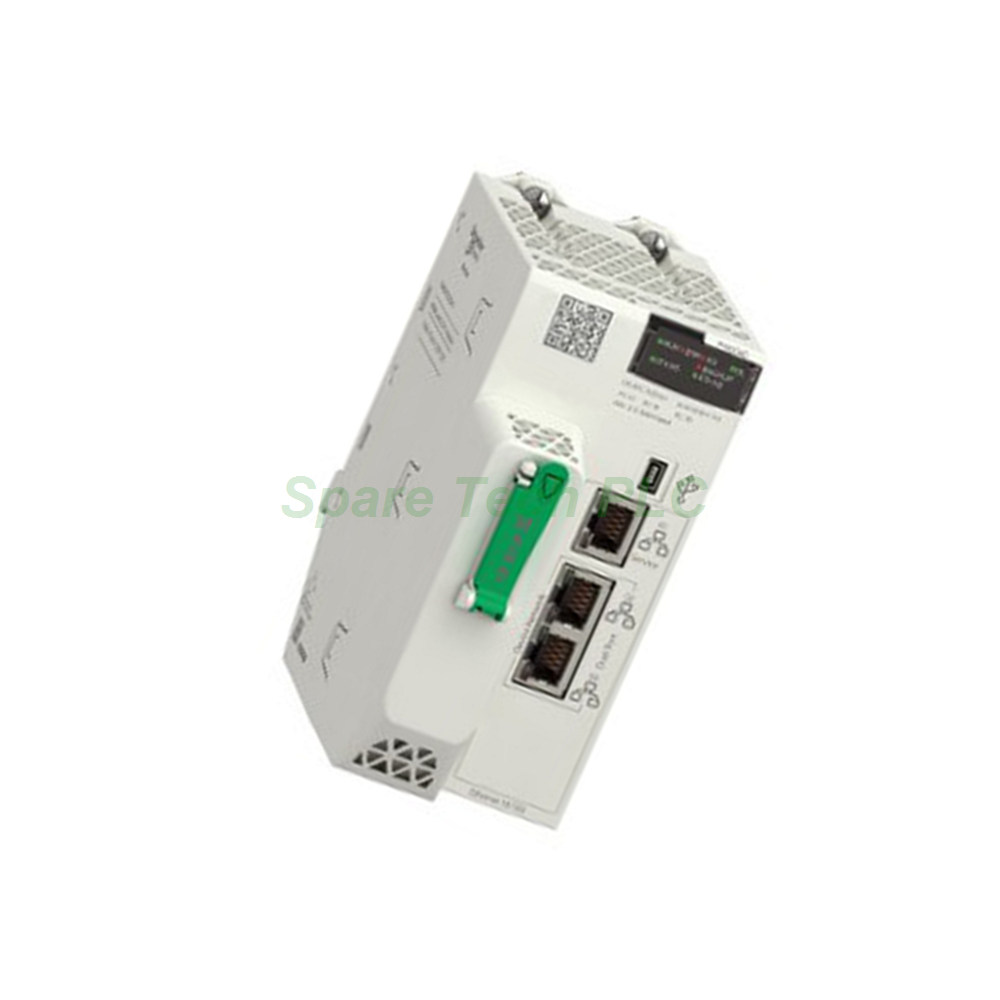

Schneider BMEP582040 Modicon M580 Standalone Processor

BMEP582040 Modicon M580 Standalone Processor

Product Introduction

The BMEP582040 processor module represents the cutting edge of industrial automation from Schneider Electric's Modicon M580 series. This standalone processor delivers exceptional performance with 8MB of integrated program memory. Engineers choose the Schneider BMEP582040 for its ability to manage complex control applications across multiple I/O racks. Specifically, it supports up to 4 local racks and 8 remote I/O stations. The module handles 2048 discrete I/O points and 512 analog I/O channels. Furthermore, this processor offers robust cybersecurity protection with Achilles certification and an embedded firewall. Consequently, the BMEP582040 provides a secure, high-performance foundation for mission-critical industrial control systems.

Processing Performance and Memory Architecture

The BMEP582040 delivers outstanding processing speed for demanding automation tasks. It executes up to 30 Kinstructions per millisecond when running a mix of 65% Boolean and 35% fixed arithmetic operations. For pure Boolean logic, the speed reaches an impressive 40 Kinstructions per millisecond. This performance ensures rapid response times for time-critical control loops.

Memory organization within the Schneider BMEP582040 supports complex applications efficiently. The module includes:

• Program Memory: 8 MB integrated RAM for application code

• Data Processing Memory: 768 kB integrated RAM for process data

• Safety Program Memory: 2 MB integrated RAM for safety-related functions

• Safety Data Memory: 512 KB integrated RAM for safety data

• System Memory: 10 kB for operating system functions

• Expandable Flash: 4 GB for data storage and application backup

This comprehensive memory architecture allows the BMEP582040 to handle large, sophisticated automation projects with ease.

Communication and Connectivity Capabilities

The Schneider BMEP582040 offers extensive connectivity options for modern industrial networks. The processor includes multiple integrated connection types to support diverse communication requirements.

• Ethernet Ports:

  • 1 Ethernet TCP/IP service port for programming and diagnostics

  • 2 Ethernet TCP/IP device network ports for plant-wide communication

• USB Port: 1 mini B USB port for local programming access

• Communication Modules: Supports up to 2 Ethernet communication modules and 16 AS-Interface modules

• Communication Services: DIO scanner and RIO scanner for distributed I/O management

Additionally, the BMEP582040 supports up to 61 Ethernet devices in a single network. This capability enables seamless integration with other Modicon M580 equipment and third-party devices. The processor also handles up to 64 distributed devices, providing exceptional scalability for growing automation systems.

Application Structure and Task Management

The BMEP582040 features a flexible application structure that supports various control strategies. The processor manages multiple task types to optimize system performance.

• Master Task: 1 cyclic/periodic master task for primary control logic

• Fast Task: 1 periodic fast task for time-critical operations

• Auxiliary Tasks: 2 auxiliary tasks for additional processing

• Event Tasks: Up to 64 event tasks for interrupt-driven operations

This task architecture enables the Schneider BMEP582040 to handle diverse control requirements simultaneously. For instance, fast tasks can manage high-speed motion control while the master task handles overall process coordination. The event tasks allow immediate response to specific conditions, enhancing system flexibility and efficiency.

Advanced Cybersecurity Features

The BMEP582040 incorporates comprehensive cybersecurity measures to protect critical industrial assets. In today's connected environment, security is paramount, and this processor delivers robust protection.

• Certification: Achilles certified, verifying security robustness

• Network Protection: IPSec for secure VPN connections and DoS prevention

• Access Control: Password protection and port hardening

• Secure Communication: HTTPS and Transport Layer Security (TLS)

• Monitoring: SNMP logging and Syslog protocol support

• Audit Trail: Comprehensive security logging for compliance

• Firmware Security: Signed firmware to prevent unauthorized modifications

• Firewall: Embedded firewall for network traffic control

These security features make the BMEP582040 suitable for critical infrastructure applications where cybersecurity is a primary concern. The TAA compliance further ensures eligibility for government and defense projects.

I/O Capacity and System Scalability

The Schneider BMEP582040 offers substantial I/O capacity to support large-scale automation systems. Understanding these specifications helps engineers design appropriate architectures.

• Local Racks: Supports up to 4 racks for local I/O

• Remote I/O Stations: Manages up to 8 remote stations with 2 remote drops each

• Local Discrete I/O: Handles up to 2048 discrete I/O points

• Local Analog I/O: Manages up to 512 analog I/O channels

• Application Channels: Supports up to 72 application-specific channels per local rack

• Application-Specific I/O: Serial links, counters, accurate time stamping, HART, motion control, and SSI encoder

This capacity ensures the BMEP582040 can accommodate most industrial applications without requiring additional controller modules. The support for HART communication is particularly valuable for process industries where smart instrumentation is common.

Mechanical and Environmental Specifications

The BMEP582040 is designed for reliable operation in demanding industrial environments.

• Power Supply: Internal power supply via the rack backplane

• Current Consumption: 270 mA at 24 V DC

• MTBF Reliability: 775,000 hours, ensuring long-term dependable operation

• Degree of Protection: IP20 rating for control cabinet installation

• Vibration Resistance: 3 gn, suitable for most industrial environments

• Shock Resistance: 15 gn, providing robust mechanical durability

• Operating Temperature: 0 to 60 °C (32 to 140 °F)

• Storage Temperature: -40 to 85 °C (-40 to 185 °F)

• Relative Humidity: 5 to 95% at 55 °C without condensation

• Operating Altitude: 0 to 2000 meters standard, derating applies up to 5000 meters

Additionally, the BMEP582040 meets stringent safety and environmental standards. It complies with IEC 61131-2, IEC 61010-2-201, and UL 61010-2-201. The module carries certifications including CE, UL, CSA, RCM, EAC, and Merchant Navy. It also meets environmental requirements for corrosion resistance, salt mist, dust resistance, and hazardous location Class I Division 2.

Status Indicators and Diagnostics

The BMEP582040 provides comprehensive status indication through front-panel LEDs. These indicators enable rapid system assessment and troubleshooting.

• RUN (Green): Processor is running normally

• ERR (Red): Processor or system fault detected

• I/O (Red): I/O module fault detected

• DL (Green): Download in progress

• BACKUP (Red): Memory card or CPU flash fault

• ETH MS (Green/Red): Ethernet port configuration status

• ETH NS (Green/Red): Ethernet network status

• SRUN (Green): Processor in safety mode

• SMOD (Green): Processor in maintenance mode

• FORCED IO (Red): I/O values overridden by user

These LEDs provide immediate visual feedback on system status, allowing operators and maintenance personnel to identify issues quickly and take appropriate action.

Installation and Configuration Guidelines

Installing the Schneider BMEP582040 requires attention to proper procedures for optimal performance. First, ensure the rack power supply is disconnected before inserting the processor. Next, align the module with the backplane guides and slide it firmly into the designated slot. Secure the processor using the retaining screws provided.

For configuration, use Schneider Electric's EcoStruxure Control Expert software. Connect to the BMEP582040 via the Ethernet service port or USB port for programming. Configure the processor parameters according to your application requirements. Set up the task structure, I/O mapping, and communication protocols. The software guides you through the configuration process with intuitive tools.

When configuring the network, assign appropriate IP addresses to the Ethernet ports. The BMEP582040 supports dual Ethernet ports for device networks, enabling redundant network topologies. Finally, download the application to the processor and verify its operation through the status LEDs.

Packaging and Shipping

When you order the Schneider BMEP582040, you will receive a complete package ready for installation.

• Packaging Content:

  • 1 x Modicon M580 Standalone Processor Module (BMEP582040)

  • 1 x Mounting hardware kit (screws and washers)

  • 1 x Product documentation leaflet (digital version available)

  • 1 x Protective cover for unused ports

All items are packed in a single PCE unit package measuring 9.2 x 17.8 x 25.2 cm. Bulk orders are available in S03 packaging containing 6 units. We ship globally using trusted courier services, including FedEx, UPS, and DHL. This ensures your BMEP582040 arrives safely and promptly, ready for immediate installation.

Frequently Asked Questions (FAQ)

1. What memory capacity does the BMEP582040 processor offer?
The Schneider BMEP582040 provides 8 MB of integrated RAM for program processing, along with 768 kB for data processing, 2 MB for safety programs, and 4 GB of expandable flash storage.

2. How many remote I/O racks does the BMEP582040 support?
The BMEP582040 supports up to 8 remote I/O stations with 2 remote drops each, providing extensive distributed I/O capability for large automation systems.

3. What cybersecurity features are included in this processor?
The Schneider BMEP582040 offers comprehensive security including Achilles certification, IPSec, embedded firewall, password protection, secure HTTPS communication, and signed firmware.

4. What is the processing speed of the BMEP582040?
The BMEP582040 executes up to 30 Kinstructions per millisecond with a mixed workload and up to 40 Kinstructions per millisecond with pure Boolean logic.

5. Does the BMEP582040 support HART communication?
Yes, the Schneider BMEP582040 supports HART communication as part of its application-specific I/O capabilities, making it suitable for process automation applications with smart instrumentation.
