Keyence IV-HG600MA Wide Mono Sensor

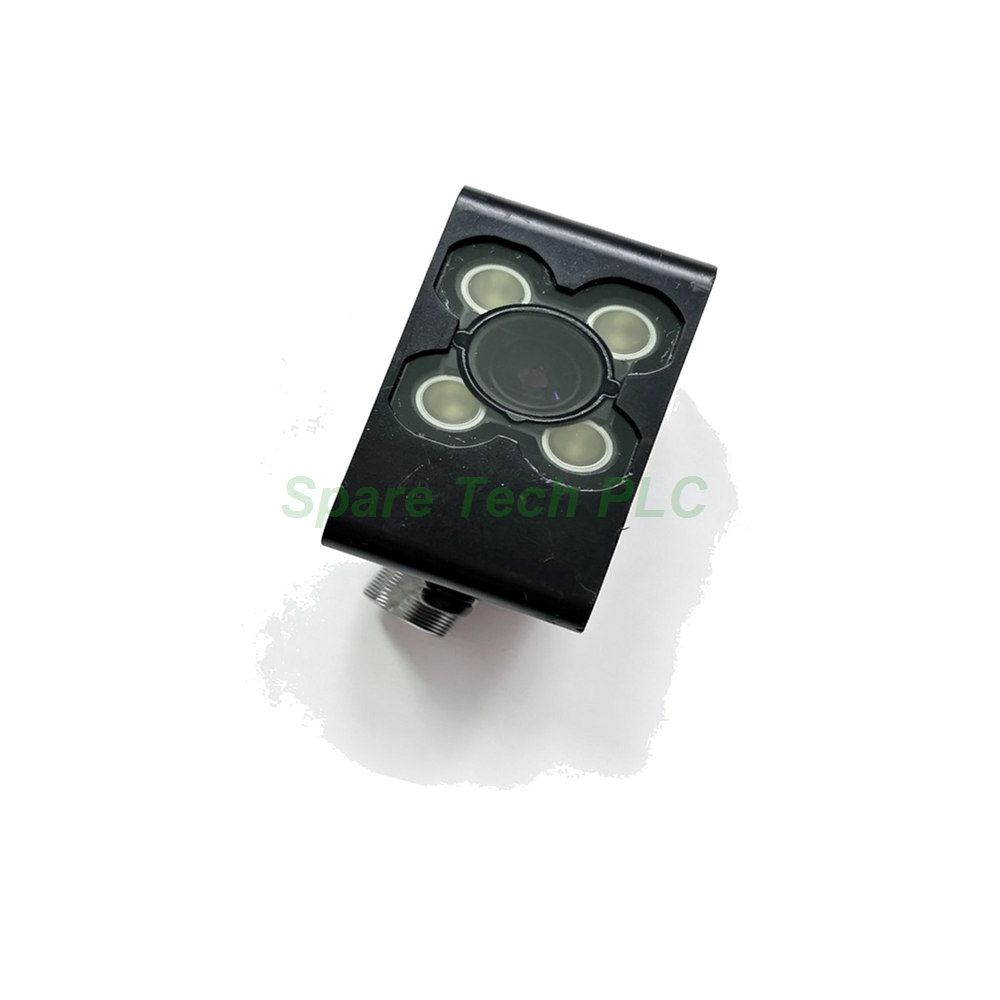

Keyence IV-HG600MA Sensor Head

Product Introduction

The IV-HG600MA is a compact sensor head built for the Keyence IV Series vision system. This model delivers a wide field of view and a monochrome image sensor. It serves as the optical front end, capturing images and sending them to the connected amplifier for processing. Typical uses include large part detection, position alignment, and presence checks over broad areas. Furthermore, this head requires the dedicated IV-HG10 or IV-HG15 amplifier, as it has no built-in communication or output ports.

Technical Specifications

The imaging core of the IV-HG600MA is a 1/3 inch monochrome CMOS sensor with 752 x 480 pixels. This resolution supports the wide area tasks the unit is designed for. Specifically, the field of view scales with distance, ranging from 42 x 31 mm at 40 mm to 550 x 412 mm at 600 mm. An auto focus mechanism simplifies setup, though the focus position locks during operation for stability. Additionally, the exposure time is configurable from 1/50 to 1/50,000, allowing the sensor to freeze motion on high-speed lines.

Lighting and Optical Design

This model uses an infrared LED illumination source with pulse lighting only. Infrared light helps reduce interference from ambient visible light on the factory floor. Meanwhile, the pulse method extends LED life and improves image consistency for moving targets. Because the sensor relies on infrared, it cannot produce color information. Therefore, the IV-HG600MA suits mono inspection tasks such as shape, edge, and contrast checks.

Mechanical and Environmental Parameters

Built for industrial environments, the IV-HG600MA carries an IP67 protection rating. However, this rating is void if you mount an optional polarized filter attachment. The main housing uses zinc die-casting for durability, while the front cover features a hard-coated acrylic window. This sensor head operates reliably in temperatures from 0 to +50°C without freezing. It also withstands vibration of 10 to 55 Hz and shock up to 500 m/s².

Installation Guide

Installing the IV-HG600MA involves mounting the sensor head and connecting it to the amplifier via a dedicated cable. First, position the head at the target distance between 40 and 600 mm. The auto focus function activates upon setup to find the correct focal point. Consequently, the amplifier's software manages all configuration and image processing. Finally, ensure the area is free of condensation to maintain the IP67 seal and optimal performance.

Packaging List

• 1 x Keyence IV-HG600MA Sensor Head

• 1 x Instruction Manual

Shipping: Fedex, UPS, DHL

FAQ

Q1: What amplifier works with the IV-HG600MA?
A: This sensor head is designed specifically for use with the Keyence IV-HG10 or IV-HG15 amplifier units. It receives power and communicates exclusively through the dedicated connection to these amplifiers.

Q2: Can the IV-HG600MA work as a standalone unit?
A: No, it cannot function alone. The IV-HG600MA lacks internal processing and communication ports. It must connect to the compatible amplifier for all power, logic, and output operations.

Q3: What is the field of view at the maximum distance?
A: At the maximum installation distance of 600 mm, the field of view is 550 mm horizontal by 412 mm vertical. This wide view helps cover large targets in a single image.

Q4: Why does this model use infrared LED instead of white LED?
A: The IV-HG600MA uses infrared LED to reduce interference from ambient visible light. This choice improves stability in long range mono inspection tasks.

Q5: What is the exposure time range for this monochrome model?
A: The IV-HG600MA offers an adjustable exposure time from 1/50 to 1/50,000. This range allows operators to capture clear images of both stationary and fast-moving targets.
