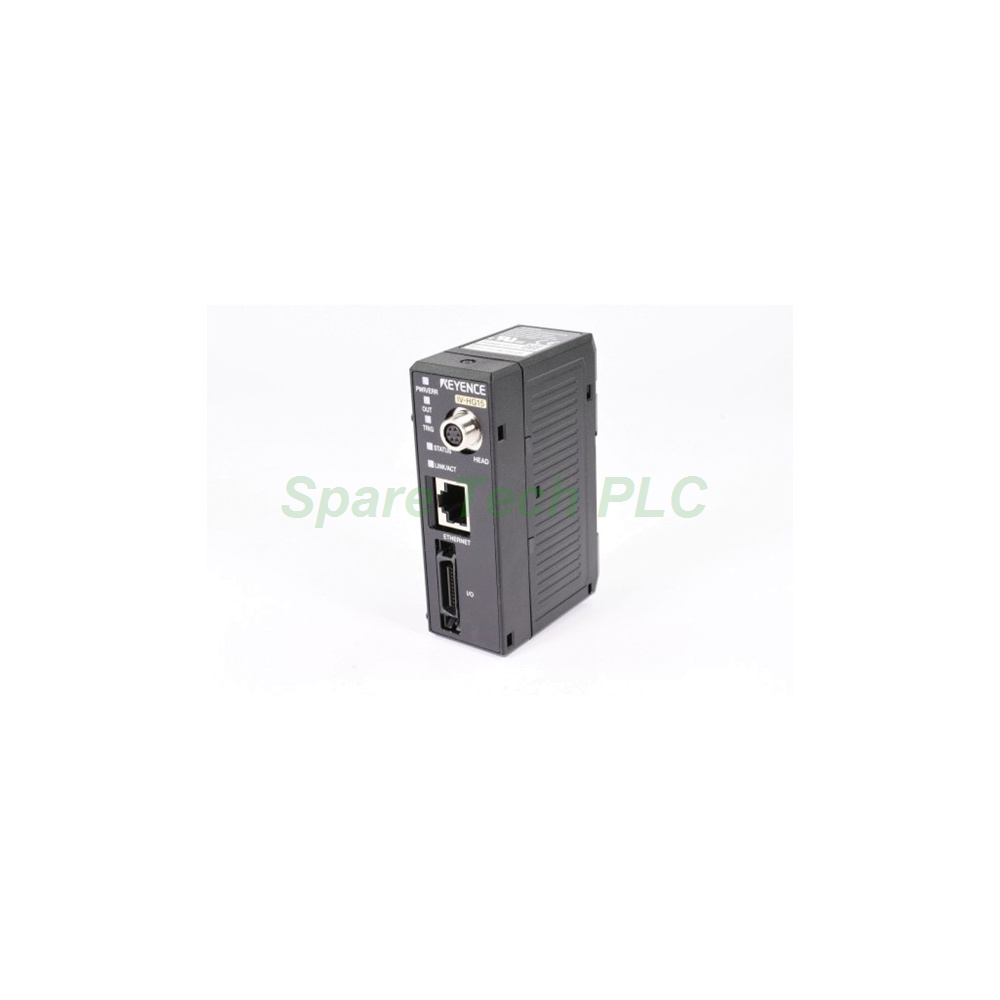

Keyence IV-HG15 Sensor Amplifier
Product Introduction
The IV-HG15 is the expansion sensor amplifier unit for the Keyence IV-HG series vision system. It pairs with the main IV-HG10 amplifier to add a second inspection channel. This setup lets one system run two sensor heads at once, which saves cabinet space and cost. Like the main unit, it handles shape detection, color area, edge pixels, OCR, and other tools. Moreover, it receives power directly from the main unit, so no separate supply is needed.
Technical Specifications
The IV-HG15 carries the same toolset as the main amplifier. It offers 16 detection tools plus 1 position adjustment tool. Users can store up to 32 programs for fast product changeover. Specifically, the tool list covers Shape Detection, Color Area, Area, Edge Pixels, Width/Height, Diameter, Edge Presence, Pitch, Position Adjustment, High Speed Position Adjustment, and OCR.
Communication and Networking
Networking on the IV-HG15 uses a built-in RJ-45 8-pin connector for 100BASE-TX/10BASE-T. The unit supports FTP client, EtherNet/IP, and PROFINET protocols. Therefore, it fits smoothly into networked factory lines. However, it has no communication expansion slot of its own. All network traffic routes through the paired IV-HG10 main unit.
Electrical Parameters
Power for the IV-HG15 comes from the main IV-HG10 unit, which supplies 24 VDC +/-10% including ripple. Because of this shared supply, Keyence does not list a separate power figure for the expansion unit. The output stage uses an open collector design. Users can switch between NPN and PNP as well as N.O. and N.C. Maximum output rating is 26.4 V at 50 mA. In addition, the unit provides 6 inputs (IN1 to IN6) and 8 outputs (OUT1 to OUT8).
Mechanical and Environmental Parameters
The case material is polycarbonate, matching the main amplifier for a consistent look and feel. Weight sits at roughly 150 g. Operating temperature ranges from 0 to +50°C without freezing, while humidity tolerance spans 35 to 85% RH with no condensation. Keyence does not publish a protection rating or dimensions for this unit. As a result, mount it inside a clean control cabinet.
Installation Guide
Installing the IV-HG15 begins with mounting it beside the main IV-HG10 on a DIN rail. Next, link the two units using the dedicated expansion connector. After that, attach the second sensor head and its cable. Then, wire the input and output lines as needed. Finally, configure the added channel through the same Keyence setup software used for the main unit.
Packaging List
1 x Keyence IV-HG15 Sensor Amplifier
1 x Instruction Manual
Shipping: Fedex, UPS, DHL
FAQ
Q1: What is the main purpose of the IV-HG15?
A: The IV-HG15 is an expansion unit. It adds a second channel to the IV-HG10 main amplifier. This lets one system control two sensor heads at the same time.
Q2: Can the IV-HG15 work without the IV-HG10?
A: No, it cannot operate alone. The IV-HG15 receives power and network access through the IV-HG10 main unit. Both must connect together.
Q3: How many programs does the IV-HG15 store?
A: The unit stores up to 32 programs. This matches the main amplifier. Operators can switch recipes quickly for mixed-model production.
Q4: Does the IV-HG15 need its own power supply?
A: No, it does not. Power comes from the main IV-HG10 unit. The shared supply simplifies wiring and reduces cabinet cost.
Q5: What happens to power draw when adding the IV-HG15?
A: Combined consumption with the main unit rises to 1.5 A or less. This figure excludes the output load. Plan the 24 VDC supply with this total in mind.
