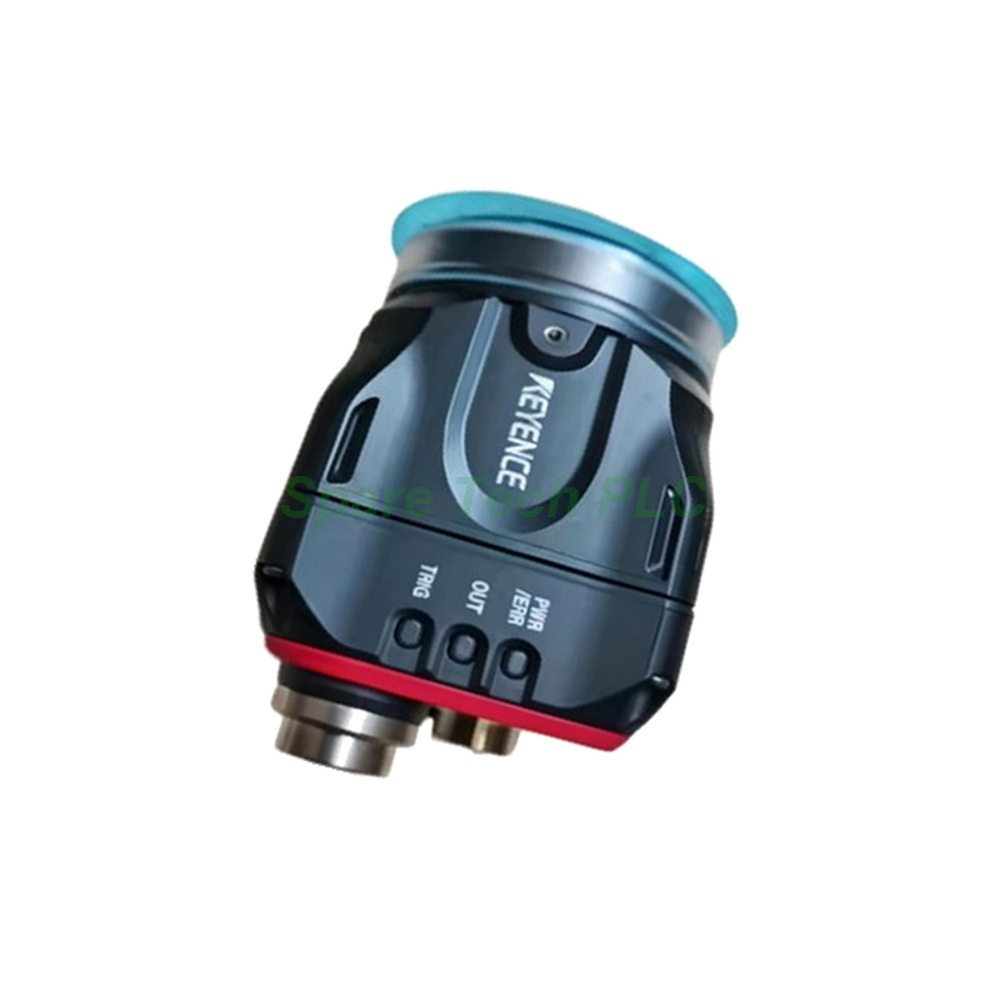

The IV-H500MA belongs to the Keyence IV Series of integrated vision sensors. This model uses a monochrome camera with a built-in controller. As a result, it saves panel space and simplifies wiring. The IV-H500MA handles many automated inspection jobs on production lines.
This sensor uses a 1/3-inch monochrome CMOS image sensor. It captures images at 752 (H) x 480 (V) pixels. The installed distance ranges from 50 mm to 500 mm. At 50 mm, the view covers 25 x 18 mm. At 500 mm, the view expands to 210 x 157 mm. Such range helps the device fit various mounting positions.
The IV-H500MA provides red LED illumination. Users can switch between pulse and DC lighting modes. Exposure time ranges from 1/10 to 1/25,000 second. Moreover, focus adjustment runs automatically. This feature cuts setup time for operators.
Sixteen detection tools come built into the unit. These tools include Shape Detection, Color Area, Area, Edge Pixels, Width/Height, Diameter, Edge Presence, Pitch, and Position Adjustment. Additionally, one position adjustment tool supports alignment tasks. The sensor stores up to 32 programs for quick product changeovers.
The IV-H500MA includes an M12 4-pin connector for 100BASE-TX/10BASE-T Ethernet. It supports FTP client, EtherNet/IP, and PROFINET protocols. Therefore, it integrates well with common factory networks.
Power comes from a 24 VDC supply with +/-10% tolerance. Current draw stays at 0.6 A or less. The output uses open collector design. Users can switch between NPN and PNP modes. They can also select N.O. or N.C. operation. Maximum output rating reaches 26.4 V at 50 mA. Six inputs (IN1 to IN6) and four outputs (OUT1 to OUT4) handle control signals.
The main case uses aluminium die-casting. The packing is NBR, the front cover is acrylic, and the mounting adapter is POM. The unit weighs approximately 270 g. It carries an IP67 protection rating. However, this rating does not apply when a polarized filter attachment (OP-87436/OP-87437) is mounted.
Operating temperature ranges from 0 to +50°C without freezing. Relative humidity stays between 35 and 85% RH without condensation. Vibration resistance reaches 10 to 55 Hz with 1.5 mm double amplitude. This applies for 2 hours in each X/Y/Z direction. Shock resistance hits 500 m/s², three times in each of six directions. These ratings exclude conditions where the dome attachment IV-D10 is mounted.
First, select a mounting position within the 50 to 500 mm distance range. Next, secure the unit using the mounting adapter. Then, connect the M12 4-pin connector to the network cable. After that, wire the power supply to the 24 VDC input. Finally, configure the 32 programs through the Keyence software interface.
1 x Keyence IV-H500MA Vision Sensor
1 x Mounting Adapter
1 x M12 4-pin Connector
1 x Quick Start Guide
Shipping
Fedex, UPS, DHL
Q1: What is the view size of the IV-H500MA at 500 mm?
A: At 500 mm installed distance, the view covers 210 (H) x 157 (V) mm.
Q2: Does the IV-H500MA use color or monochrome imaging?
A: This model uses a monochrome CMOS sensor with red LED illumination.
Q3: How many programs can the IV-H500MA store?
A: The sensor stores up to 32 programs for different inspection tasks.
Q4: Does the IV-H500MA support EtherNet/IP?
A: Yes, it supports FTP client, EtherNet/IP, and PROFINET protocols.
Q5: What is the power consumption of the IV-H500MA?
A: The unit draws 0.6 A or less at 24 VDC.
| Brand Name | |
| Model No. | IV-H500MA |
| Product Type | Integrated Vision Sensor Camera |
