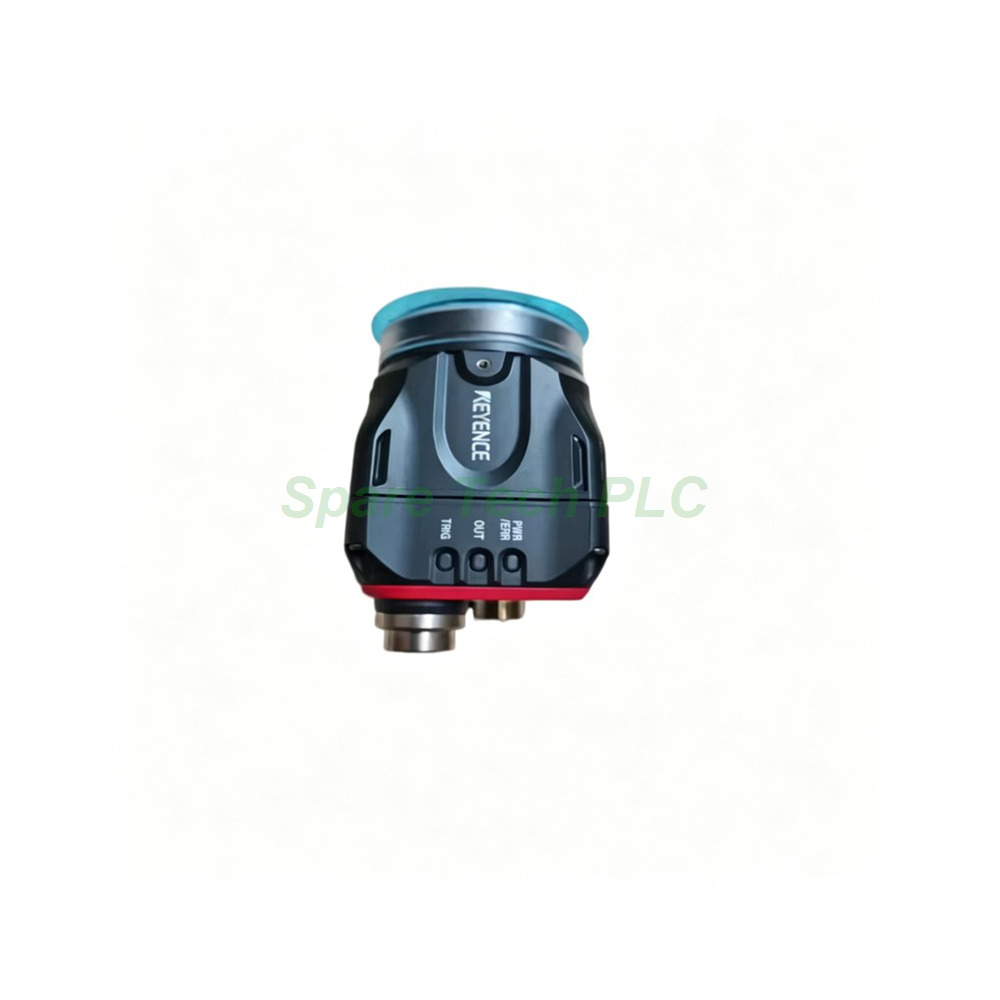

The IV-H2000MA from Keyence is a long range vision sensor engineered for large-scale inspection tasks. Specifically, this monochrome model handles distances from 300 to 2,000 mm with ease. Furthermore, its infrared LED illumination supports stable detection in varied lighting conditions. The IV-H2000MA integrates camera, light, and processing into a single IP67-rated unit.
The IV-H2000MA covers an installed distance of 300 to 2,000 mm. At 300 mm, the view measures 45 × 33 mm, expanding to 300 × 225 mm at 2,000 mm. Meanwhile, the 1/3 inch monochrome CMOS sensor delivers 752 × 480 pixel resolution. Exposure time ranges from 1/10 to 1/25,000 second for diverse speed needs. Illumination uses an infrared LED with pulse or DC lighting modes.
For tools, this sensor provides 16 detection tools and 1 position adjustment tool. Shape Detection, Area, Edge Pixels, and Pitch are among the available algorithms. Besides, 32 program settings enable rapid product changeover without reprogramming delays. The IV-H2000MA also supports FTP client, EtherNet/IP, and PROFINET for network integration.
Power runs on 24 VDC with a 0.6 A maximum current draw. The IV-H2000MA includes 6 inputs and 4 outputs. Outputs are open collector type with NPN or PNP selection. Therefore, wiring adapts to existing control cabinets. The M12 4-pin connector handles both 100BASE-TX and 10BASE-T Ethernet communication.
The main case uses aluminium die-casting for durability. Sealing material is NBR, while the front cover uses acrylic. This construction supports IP67 protection, excluding specific filter attachments. Operating temperature spans 0 to +50°C without freezing. Moreover, humidity tolerance reaches 35 to 85% RH with no condensation allowed. Vibration resistance follows 10 to 55 Hz at 1.5 mm double amplitude. Shock resistance is rated at 500 m/s² across six directions. Weight is approximately 270 g for the sensor body.
Mounting and Distance: First, mount the IV-H2000MA using the POM adapter at the target inspection point. Keep the lens surface 300 to 2,000 mm from the object. The autofocus function sets the optimal focal position automatically during setup.
Wiring: Next, connect the M12 4-pin connector for Ethernet communication. Then, wire the 24 VDC power supply and input/output lines per the manual diagrams. The IV-H2000MA accepts either non-voltage or voltage inputs.
Programming: Finally, configure detection tools and programs through the monitor or PC software. The 32-program memory allows storing different inspection recipes.
1 × Keyence IV-H2000MA Vision Sensor Unit
1 × Mounting Adapter (POM)
1 × M12 Connector Protection Cap

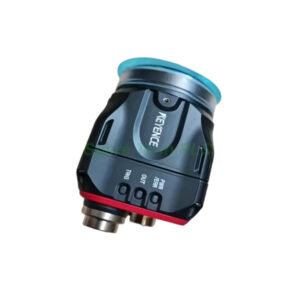

Q1: What is the difference between the IV-H2000MA and the IV-H150MA?
A: The IV-H2000MA covers a longer 300-2,000 mm range with a larger field of view. The IV-H150MA handles short range tasks at 50-150 mm.
Q2: Can the IV-H2000MA connect to a PLC directly?
A: Yes, it supports EtherNet/IP and PROFINET protocols for direct PLC communication.
Q3: What type of illumination does this sensor use?
A: The IV-H2000MA uses an infrared LED with selectable pulse or DC lighting modes.
Q4: Is the IV-H2000MA suitable for high-speed production lines?
A: Yes, exposure time down to 1/25,000 second and high-speed position adjustment tools support fast inspection.
Q5: How many inspection programs can the IV-H2000MA store?
A: It stores up to 32 programs for different product changeover requirements.
