Keyence IV-HG500MA Camera | IV Series Head
The IV-HG500MA is a compact monochrome sensor head for Keyence IV-HG10 and IV-HG15 amplifiers. It offers a 20 to 500 mm range, 1/3-inch CMOS imaging, auto focus, and IP67 protection.

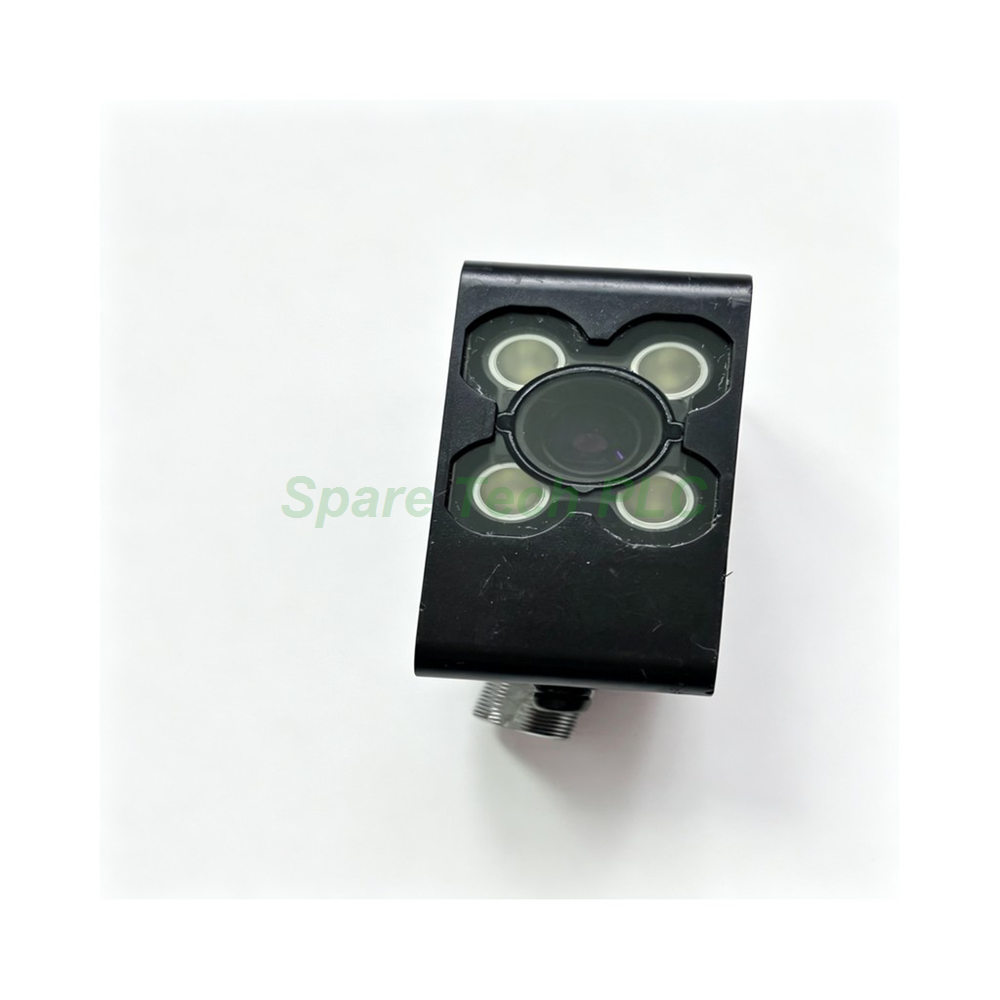

Keyence IV-HG150MA Sensor Head
Product Introduction
The IV-HG150MA is a compact sensor head designed for the Keyence IV Series vision system. This specific model features a narrow field of view and a monochrome image sensor. It functions as the optical front end, which captures images and sends them to the connected amplifier for processing. Typical applications include presence/absence checks, position alignment, and basic appearance inspection on production lines. Furthermore, this head requires the dedicated IV-HG10 or IV-HG15 amplifier to operate, as it lacks built-in communication or output ports.
Technical Specifications
The imaging core of the IV-HG150MA is a 1/3 inch monochrome CMOS sensor with 752 x 480 pixels. This resolution is well-suited for the narrow field tasks the unit is designed for. Specifically, the field of view scales with distance, ranging from 8 x 6 mm at 40 mm to 32 x 24 mm at 150 mm. An auto focus mechanism simplifies setup, though the focus position is locked during operation for stability. Additionally, the exposure time is configurable from 1/20 to 1/50,000, allowing the sensor to freeze motion on high-speed lines.
Mechanical and Environmental Parameters
Built for industrial environments, the IV-HG150MA carries an IP67 protection rating. However, this rating is void if you mount an optional polarized filter attachment. The main housing uses zinc die-casting for durability, while the front cover features a hard-coated acrylic window. This sensor head operates reliably in temperatures from 0 to +50°C without freezing. It also withstands vibration of 10 to 55 Hz and shock up to 500 m/s².
Installation Guide
Installing the IV-HG150MA involves mounting the sensor head and connecting it to the amplifier via a dedicated cable. First, position the head at the target distance between 40 and 150 mm. The auto focus function activates upon setup to find the correct focal point. Consequently, the amplifier's software manages all configuration and image processing. Finally, ensure the area is free of condensation to maintain the IP67 seal and optimal performance.
Packaging List
1 x Keyence IV-HG150MA Sensor Head
1 x Instruction Manual
Shipping: Fedex, UPS, DHL
FAQ
Q1: What amplifier works with the IV-HG150MA?
A: This sensor head is designed specifically for use with the Keyence IV-HG10 or IV-HG15 amplifier units. It receives power and communicates exclusively through the dedicated connection to these amplifiers.
Q2: Can the IV-HG150MA work as a standalone unit?
A: No, it cannot function alone. The IV-HG150MA lacks internal processing and communication ports. It must connect to the compatible amplifier for all power, logic, and output operations.
Q3: What is the field of view at the maximum distance?
A: At the maximum installation distance of 150 mm, the field of view is 32 mm horizontal by 24 mm vertical. This narrow view helps concentrate the sensor's resolution on small features.
Q4: Does the IP67 rating apply when using attachments?
A: The IP67 rating is only valid for the bare sensor. It does not apply when you mount the optional polarized filter attachments (OP-87899, OP-87900, OP-87901, or OP-87902) on the front.
Q5: What is the exposure time range for this monochrome model?
A: The IV-HG150MA offers an adjustable exposure time from 1/20 to 1/50,000. This range allows operators to capture clear images of both stationary and fast-moving targets.
