Keyence IV-HG500MA Camera | IV Series Head

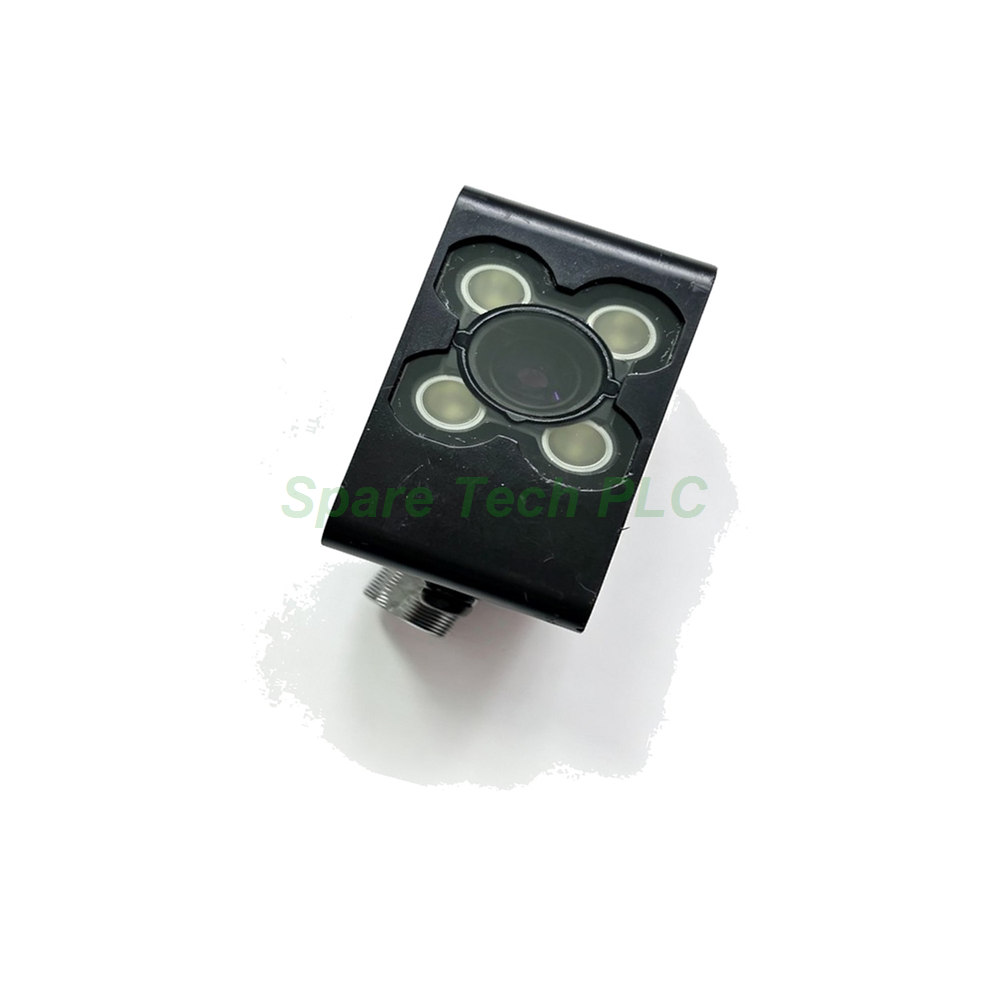

Keyence IV-HG500MA Compact Monochrome Sensor Head for IV Series

The IV-HG500MA captures grayscale images for IV Series vision inspections. This standard sensor head pairs with IV-HG10 and IV-HG15 amplifiers through a dedicated cable. Furthermore, its compact body fits tight machinery spaces. As a result, it handles presence checks, edge detection, and pattern verification tasks.

This Keyence sensor head belongs to the IV Series family. It uses a 1/3-inch monochrome CMOS image sensor with 752 x 480 pixels. Meanwhile, auto focus simplifies setup across different working distances. Therefore, operators can change targets without manual lens adjustment.

Technical Specifications

The installed distance ranges from 20 to 500 mm. At 20 mm, the field of view measures 10 (H) x 7.5 (V) mm. At 500 mm, it expands to 200 (H) x 150 (V) mm. This wide range covers small part inspection and larger assembly checks.

Exposure time runs from 1/10 to 1/50,000. Additionally, white LED illumination lights the target area. The lighting method supports pulse and DC modes, and users can switch between them. Consequently, the head adapts to moving and stationary targets.

The unit has no built-in communication ports of its own. Instead, it connects to the IV-HG10 amplifier via a dedicated cable. Protocols and communication expansion flow through the amplifier. Similarly, power comes from the connected amplifier, and outputs pass through the amplifier as well.

Mechanical and Environmental Parameters

The operating temperature range is 0 to +50°C with no freezing. Relative humidity must stay between 35 and 85% RH without condensation. Moreover, the unit carries an IP67 protection rating. This rating applies except when a polarized filter attachment is mounted. Compatible attachments include OP-87899, OP-87900, OP-87901, and OP-87902.

Vibration resistance covers 10 to 55 Hz with 1.5 mm double amplitude. The head withstands two hours in each of the X, Y, and Z directions. This rating excludes setups with dome attachments IV-GD05 or IV-GD10. Shock resistance reaches 500 m/s², tested three times in each of six directions. The same dome attachment exclusion applies here.

The main unit case uses zinc die-casting. The front cover uses acrylic with a hard coat. The operation indicator cover uses TPU. Weight is approximately 75 g.

Installation Guide

First, mount the sensor head on a stable bracket near the inspection point. Next, connect the dedicated cable to the IV-HG10 or IV-HG15 amplifier. Then, set the installed distance between 20 and 500 mm based on the target size. After that, power on the amplifier and let auto focus adjust the lens. Finally, select pulse or DC lighting to match the application.

Keep the front cover clean and free of dust. Also, avoid mounting the head where water jets hit the connectors directly. Moreover, confirm that vibration levels stay within the rated range. When using dome attachments, check the reduced vibration and shock limits.

Packaging List

• 1x Keyence IV-HG500MA Sensor Head

• 1x Dedicated Connection Cable

• 1x Mounting Bracket

• 1x Quick Start Guide

Shipping is available via Fedex, UPS, and DHL.

FAQ

Q1: Which amplifiers work with the IV-HG500MA?
A: This sensor head pairs with Keyence IV-HG10 and IV-HG15 amplifiers. It connects through a dedicated cable.

Q2: What is the field of view at 500 mm?
A: At an installed distance of 500 mm, the view measures 200 (H) x 150 (V) mm. At 20 mm, it measures 10 (H) x 7.5 (V) mm.

Q3: Does the IV-HG500MA include built-in lighting?
A: Yes. It uses white LED illumination with switchable pulse or DC lighting modes.

Q4: What is the protection rating of this Keyence sensor head?
A: It carries an IP67 rating. However, this rating does not apply when a polarized filter attachment is mounted.

Q5: How does the sensor head receive power?
A: The connected IV-HG10 or IV-HG15 amplifier supplies power. Outputs also pass through the amplifier.
