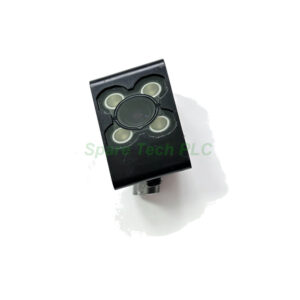

Keyence IV-HG150MA Monochrome Sensor
The IV-HG150MA is a narrow field sensor head from Keyence. It uses a monochrome CMOS and auto focus for precise inspection. It connects directly to the IV-HG10 or IV-HG15 amplifier for operation.

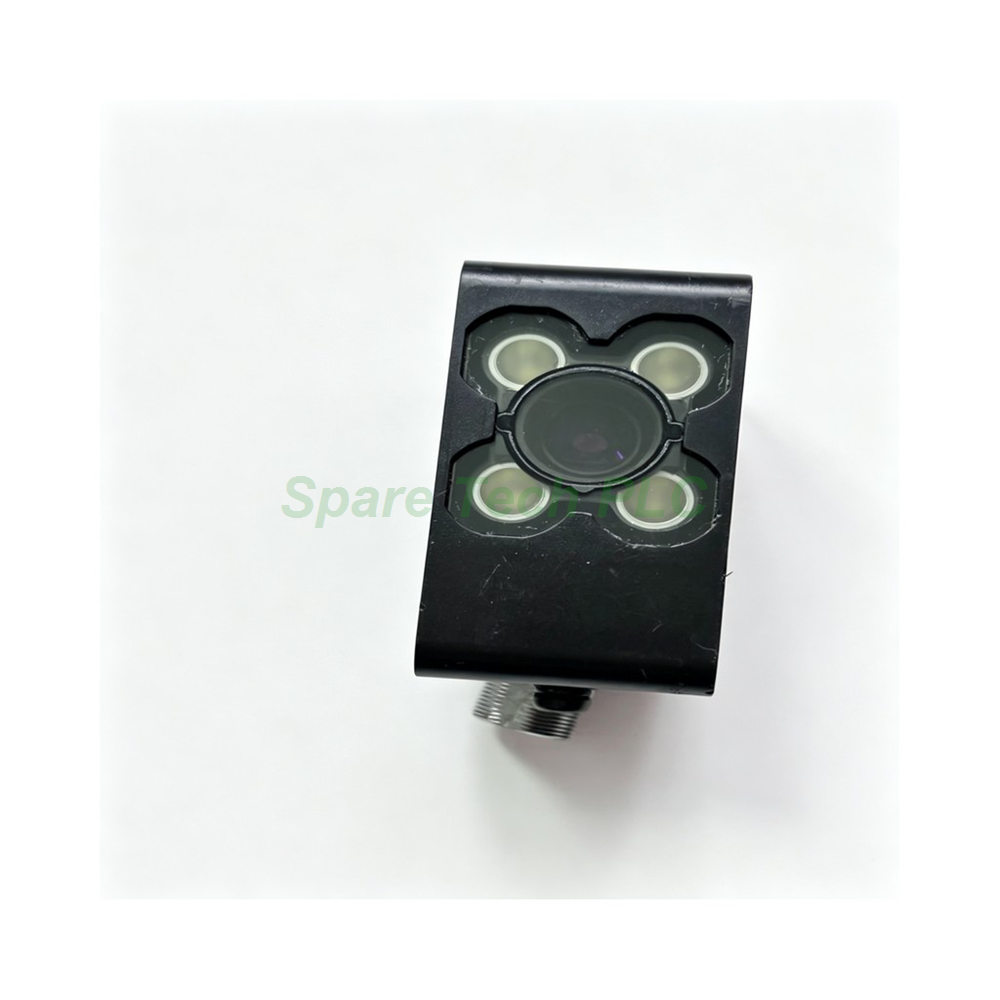

Keyence IV-HG300CA Sensor Head
Product Introduction
The IV-HG300CA is a compact sensor head built for the Keyence IV Series vision system. This model offers a wide field of view and a color image sensor. It acts as the optical front end, capturing images and relaying them to the connected amplifier for processing. Common uses include color sorting, presence/absence checks, and broad area inspection on production lines. Moreover, this head depends on the dedicated IV-HG10 or IV-HG15 amplifier, since it has no built-in communication or output ports.
Technical Specifications
The imaging core of the IV-HG300CA is a 1/3 inch color CMOS sensor with 752 x 480 pixels. This resolution suits the wide area tasks the unit is designed for. Specifically, the field of view scales with distance, ranging from 42 x 31 mm at 40 mm to 275 x 206 mm at 300 mm. An auto focus mechanism simplifies setup, though the focus position locks during operation for stability. Additionally, the exposure time is configurable from 1/25 to 1/50,000, allowing the sensor to freeze motion on high-speed lines.
Mechanical and Environmental Parameters
Built for industrial environments, the IV-HG300CA carries an IP67 protection rating. However, this rating is void if you mount an optional polarized filter attachment. The main housing uses zinc die-casting for durability, while the front cover features a hard-coated acrylic window. This sensor head operates reliably in temperatures from 0 to +50°C without freezing. It also withstands vibration of 10 to 55 Hz and shock up to 500 m/s².
Installation Guide
Installing the IV-HG300CA involves mounting the sensor head and connecting it to the amplifier via a dedicated cable. First, position the head at the target distance between 40 and 300 mm. The auto focus function activates upon setup to find the correct focal point. Consequently, the amplifier's software manages all configuration and image processing. Finally, ensure the area is free of condensation to maintain the IP67 seal and optimal performance.
Packaging List
1 x Keyence IV-HG300CA Sensor Head
1 x Instruction Manual
Shipping: Fedex, UPS, DHL
FAQ
Q1: What amplifier works with the IV-HG300CA?
A: This sensor head is designed specifically for use with the Keyence IV-HG10 or IV-HG15 amplifier units. It receives power and communicates exclusively through the dedicated connection to these amplifiers.
Q2: Can the IV-HG300CA work as a standalone unit?
A: No, it cannot function alone. The IV-HG300CA lacks internal processing and communication ports. It must connect to the compatible amplifier for all power, logic, and output operations.
Q3: What is the field of view at the maximum distance?
A: At the maximum installation distance of 300 mm, the field of view is 275 mm horizontal by 206 mm vertical. This wide view helps cover large targets in a single image.
Q4: Does the IP67 rating apply when using attachments?
A: The IP67 rating is only valid for the bare sensor. It does not apply when you mount the optional polarized filter attachments (OP-87899, OP-87900, OP-87901, or OP-87902) on the front.
Q5: What is the exposure time range for this color model?
A: The IV-HG300CA offers an adjustable exposure time from 1/25 to 1/50,000. This range allows operators to capture clear images of both stationary and fast-moving targets.
