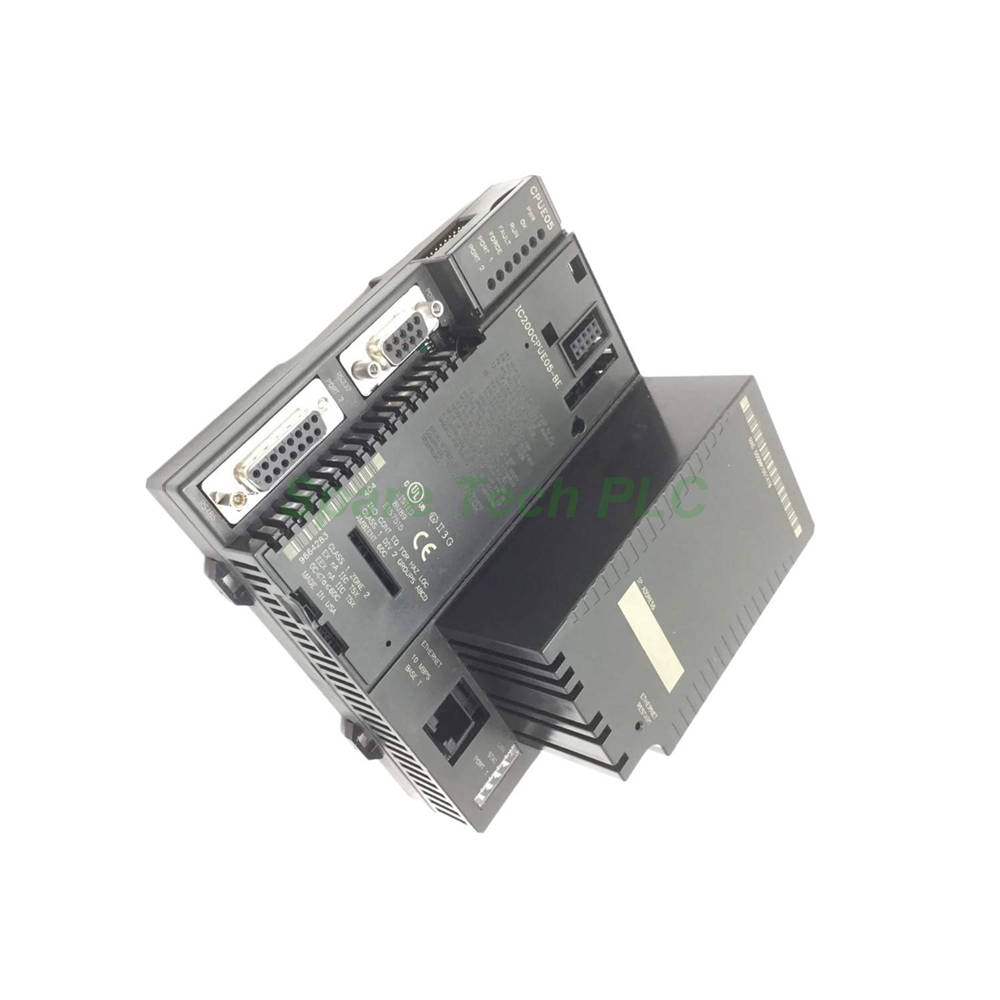

The IC200CPUE05 from GE Fanuc serves as the central brain for the VersaMax PLC system. This controller executes your downloaded logic programs reliably across various industrial applications. It offers a compact, scalable design that adapts to your automation needs. Meanwhile, its embedded communication options simplify integration with existing networks. Specifically, this module provides a balanced mix of memory, speed, and I/O capacity for mid-range control tasks. Therefore, the IC200CPUE05 is a practical choice for machine builders and system integrators.
First, let us examine the core processing power. The IC200CPUE05 delivers a typical Boolean execution speed of 0.8 ms per kilobyte of logic. This ensures responsive control for time-sensitive operations. Additionally, it provides 64 Kbytes of user-configurable memory, which is sufficient for many standard automation projects. Furthermore, the module supports floating-point data formats, enabling it to handle complex mathematical calculations without extra processing units.
Next, consider its extensive I/O and module capacity. The GE Fanuc IC200CPUE05 manages up to 64 modules in a single system. Moreover, it supports a maximum of 2048 I/O points, offering significant scalability for growing applications. Consequently, you can build a fairly large control system using just this single CPU.
For communication, this CPU is exceptionally well-equipped. It features one RS232 port using a 9-pin sub-D connector for local programming or HMI links. In addition, it includes one RS485 port via a 15-pin sub-D connector, which is ideal for multi-drop networks. Meanwhile, a built-in Ethernet port with an RJ45 connector provides high-speed connectivity. This Ethernet port operates at 10 Mbps in full or half-duplex mode. Besides that, it supports up to 8 SRTP server connections for data exchange with other devices. Finally, the module allows 32 Ethernet Global Data (EGD) configurations, with each exchange handling up to 100 data ranges and 1400 bytes of data.
The IC200CPUE05 is built for flexible installation. It mounts directly onto a standard DIN rail, which simplifies panel assembly and reduces installation time. Moreover, this module can be oriented either vertically or horizontally within your cabinet, giving you layout flexibility. Power requirements are modest, drawing 650 milliamperes at 3.3 Volts DC. This low power consumption helps minimize heat generation inside the control panel.
A key feature of this processor is its robust data retention mechanism. It includes a built-in super capacitor that maintains memory for up to one hour after power loss. For longer outages, the system automatically switches to an optional battery, which provides backup for up to six months. When stored unused, the battery itself has a shelf life of up to five years. This dual-layer protection ensures your program and critical data remain safe during unexpected shutdowns.
The GE Fanuc VersaMax IC200CPUE05 supports standard programming languages. You can develop logic using ladder diagrams or instruction lists, making it accessible to most PLC programmers. For diagnostics and status monitoring, the front panel features two sets of LEDs. Specifically, the PWR, OK, RUN, FAULT, FORCE, PORT 1, and PORT 2 indicators provide clear visual feedback on power, operation, and communication activity.
Over its product life, the IC200CPUE05 has seen several firmware updates. For instance, revision CPUE05-AA FW 2.10 was the initial release. Next, CPUE05-AB FW 2.20 added additional serial I/O baud rates. Moreover, CPUE05-AC FW 2.30 increased support for Modbus Master functions. Furthermore, CPUE05-AD FW 2.31 continued to refine Modbus Master capabilities. Finally, CPUE05-BE FW 2.2 introduced support for 32-bit register data in Modbus RTU Master mode. Please verify your firmware version to ensure compatibility with your specific application requirements.
Proper installation is crucial for reliable operation. First, ensure the DIN rail is firmly secured to the backplane. Then, clip the IC200CPUE05 module onto the rail until it clicks into place. Next, connect the power supply to the designated pins, observing the correct polarity for 3.3 VDC. After that, wire your serial and Ethernet cables, taking care to route them away from high-voltage lines to minimize noise. Finally, use the built-in run/stop switch to control the processor's operating mode during setup. Always power down the system before inserting or removing any module.
1 x IC200CPUE05 GE Fanuc VersaMax CPU module
1 x DIN rail mounting clip (pre-installed)
1 x Product information sheet
Note: Cables, batteries, and programming software are sold separately.
1. What is the maximum number of I/O points supported by the IC200CPUE05?
The IC200CPUE05 supports up to 2048 I/O points in total across all connected modules.
2. Can the IC200CPUE05 communicate with Modbus devices?
Yes, depending on the firmware revision. Newer versions like CPUE05-BE support Modbus RTU Master with 32-bit register data.
3. How long does the super capacitor retain data after power-off?
The built-in super capacitor retains memory for approximately one hour, after which the battery takes over.
4. What programming languages are compatible with this CPU?
You can program the GE Fanuc IC200CPUE05 using ladder diagram or instruction list languages.
5. How should the module be mounted in a control cabinet?
The IC200CPUE05 mounts onto a standard DIN rail and can be oriented either vertically or horizontally.
