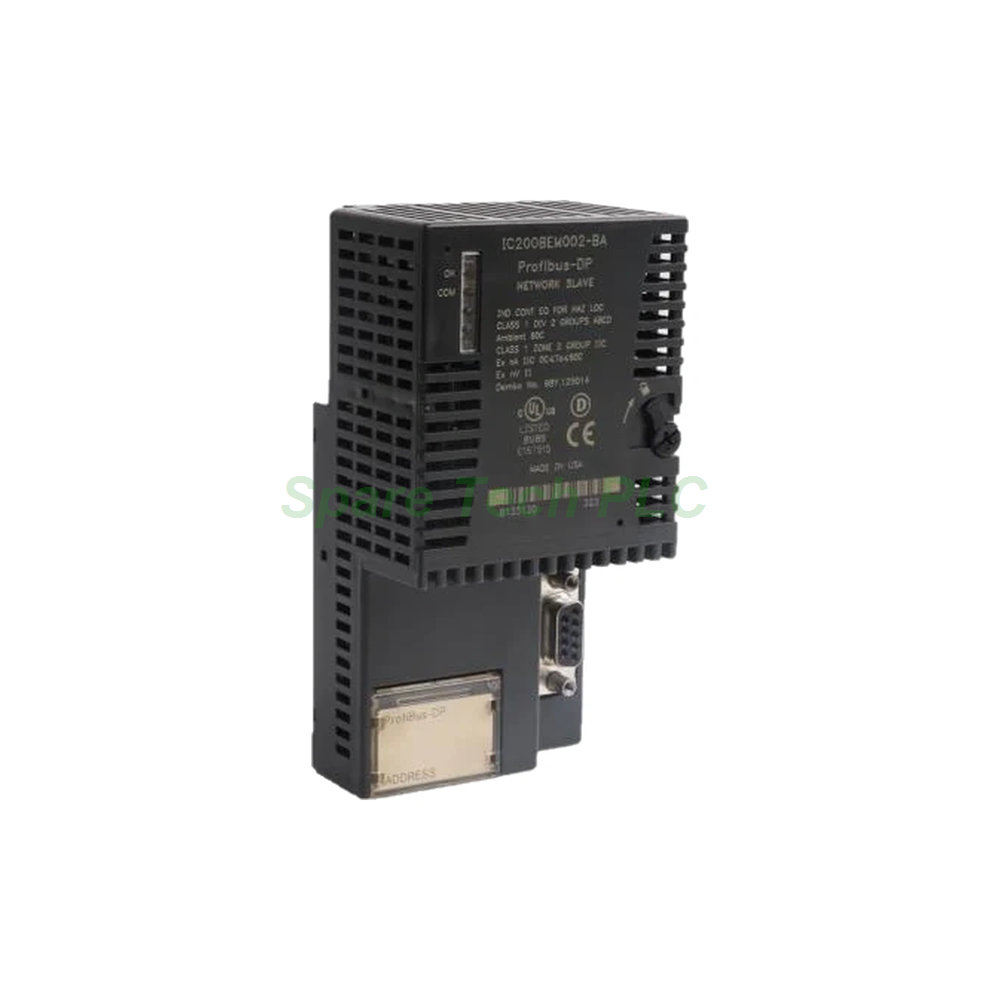

The IC200BEM002 is a network communication module from GE Fanuc. It belongs to the Versamax series of programmable automation controllers. This module enables Profibus DP connectivity for distributed I/O systems. Therefore, it integrates remote stations into a central control architecture. Engineers use it in manufacturing, process, and infrastructure projects.
The IC200BEM002 supports network data rates from 9.6 Kbaud to 12 Mbaud. This wide range allows flexible configuration across different network segments. Without a repeater, the module handles up to 32 stations. With a repeater, the network expands to 125 stations. Additionally, the module processes 384 bytes of I/O data.
At any given time, the IC200BEM002 can process 244 bytes of input data. It also pushes up to 244 bytes of output data. The connector uses a 9-pin D-sub type. For wiring, the module accepts a wire gauge greater than 0.64 millimeters. The input impedance rating falls between 135 and 165 ohms. Furthermore, the module draws 460 milliamps from the 5 V bus.
The communication module runs version 1.00 firmware. It includes flash memory for easy upgrades. Specifically, users connect a personal computer through the serial port to update firmware. This design simplifies maintenance and extends product life.
The IC200BEM002 uses a DIN rail mounting design. It features an open enclosure style. Therefore, it suits indoor applications only. The module should stay away from heat sources. These mechanical traits make installation straightforward in standard control cabinets.
First, place the IC200BEM002 in the unlocked position on the DIN rail. Next, align the connectors carefully. Then, click the module into place until it locks. After that, connect the Profibus DP cable to the 9-pin D-sub connector.
The front panel includes two LED indicators. A power LED shows the module power status. A COM LED displays communication activity. Meanwhile, check the wiring impedance to match the 135 to 165 ohm range. Finally, verify the 5 V bus current supply meets the 460 milliamp requirement.
1x GE Fanuc IC200BEM002 Network Communication Module
Q1: What network protocol does the IC200BEM002 support?
A: The IC200BEM002 supports Profibus DP communication. It connects Versamax I/O systems to a Profibus network.
Q2: How many stations can this module handle?
A: It supports 32 stations without a repeater. With a repeater, the network extends to 125 stations.
Q3: What is the maximum data rate of the IC200BEM002?
A: The module reaches a maximum data rate of 12 Mbaud. Its lowest supported rate is 9.6 Kbaud.
Q4: How is firmware updated on this module?
A: You update firmware through the serial port. Connect a personal computer and use the flash memory upgrade function.
Q5: What connector type does the IC200BEM002 use?
A: The module uses a 9-pin D-sub connector. It accepts Profibus DP cables for network connection.
| Brand Name | |
| Model No. | IC200BEM002 |
| Product Type | Communication Module |
