The IC200ALG430 is a versatile analog mixed module from the GE Fanuc VersaMax I/O platform. This module combines four differential analog inputs and two single-ended analog outputs in a single slot. All channels support 4-20 mA current signals with 12-bit resolution. Therefore, this module provides a compact solution for applications with limited panel space. It also maximizes available expansion slots in your I/O rack. Specifically, the input channels operate without an external power supply. However, the output circuits require an external 24 VDC supply to generate the current signal. This design makes the IC200ALG430 highly flexible for various control scenarios.
The IC200ALG430 offers four differential input channels arranged in a single group. Each input channel includes its own analog-to-digital converter. The input impedance is 200 Ohms maximum. For speed, the input update rate reaches just 0.4 ms. Meanwhile, the input filter response time is 5.0 ms. In terms of accuracy, the module achieves +/-0.3% typical of full scale at 25°C. The maximum accuracy is +/-0.5% at 25°C. Moreover, over the full 0-60°C temperature range, accuracy stays within +/-1% maximum of full scale. Consequently, this ensures reliable measurements across varying environmental conditions.
The output section of the IC200ALG430 features two single-ended output channels in one group. These channels generate 4-20 mA signals with 12-bit resolution. The output update rate is an impressive 0.3 ms. This enables rapid response for demanding control applications. Furthermore, the output channels offer configurable behavior during faults. For instance, you can select a hold state or define a constant value. This flexibility ensures safe and predictable operation during system errors.
This combination module draws 50 mA from the 5 VDC backplane bus. For the output circuits, an external supply voltage of +18 to +30 VDC is required. Additionally, the analog input circuits require a separate 9.6 to 15 VDC supply (12 VDC nominal). For isolation, the module provides 250 VAC continuous isolation between user input and logic. It also offers 1500 VAC for 60 seconds between input and ground. Moreover, the channel-to-channel crosstalk rejection is 30 dB minimum. Therefore, this robust isolation ensures signal integrity and protects against electrical noise.
The IC200ALG430 includes built-in diagnostic capabilities. The module monitors for loss of user-side power. Two LED indicators on the front panel provide visual status information. The FLD PWR LED indicates the presence of field power. The OK LED confirms active backplane power. These indicators enable quick troubleshooting. Therefore, maintenance personnel can rapidly identify power-related issues without additional diagnostic tools.
This analog combination module occupies a single slot in the VersaMax I/O rack. It is fully compatible with the complete VersaMax platform. This includes various CPUs, NIUs, power supplies, and communication modules. The module supports 4 words of input data and 2 words of analog output data. For input hold state features, the behavior depends on the CPU or NIU version. With version 2.x or later, inputs default to 0 during CPU stoppage. With version 1.5 or later, inputs match the jumper-defined output default. Consequently, this ensures backward compatibility with older systems.

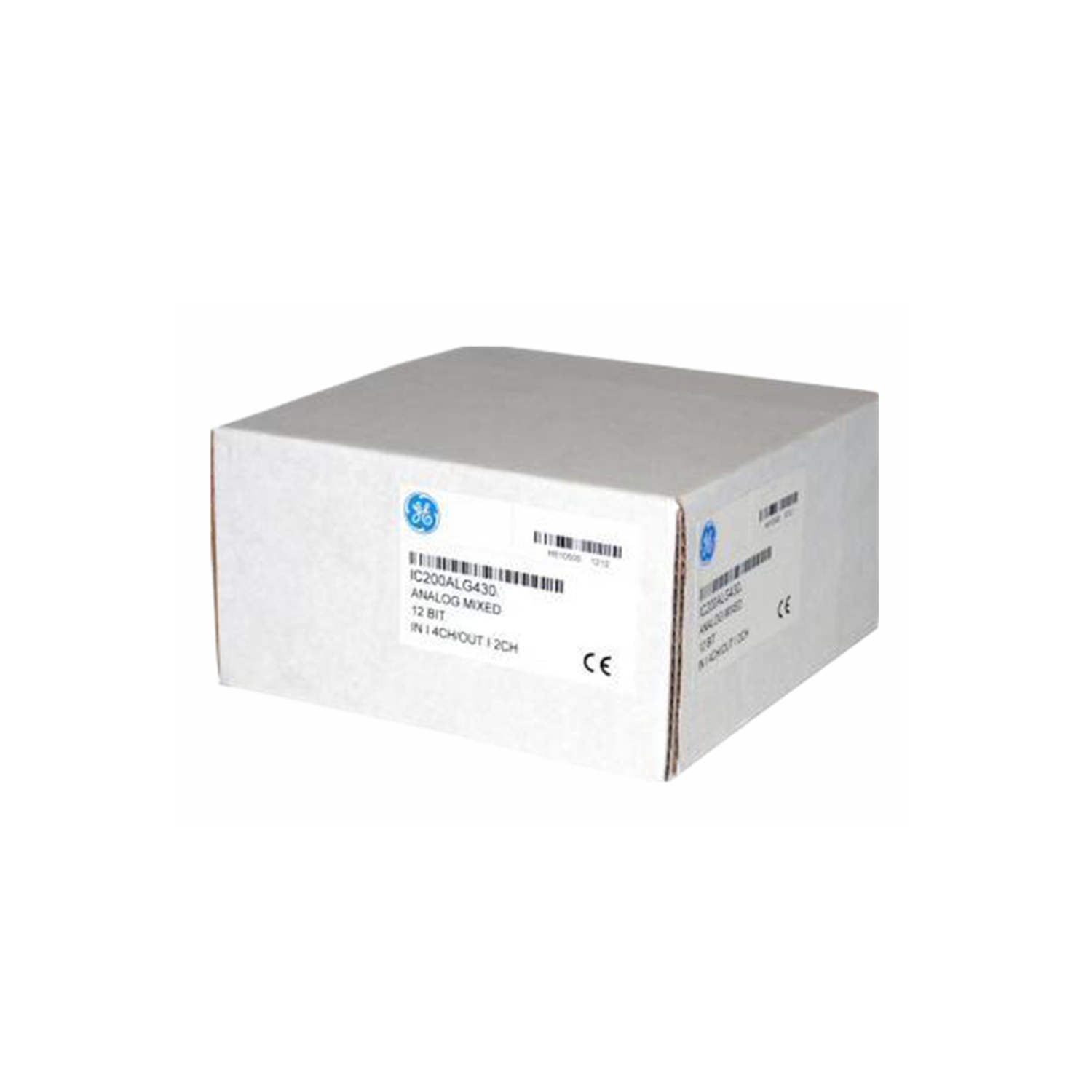

We package every IC200ALG430 securely for international transit. Our packaging protects against electrostatic discharge and physical damage. For delivery, we choose premier global couriers. Therefore, we ship via FedEx, UPS, and DHL to ensure fast and trackable service.
1x GE Fanuc IC200ALG430 Analog Combination Module
1x Product manual and installation guide
1. How many input and output channels does the IC200ALG430 have?
The IC200ALG430 provides four differential analog input channels and two single-ended analog output channels. All channels support 4-20 mA signals.
2. What is the resolution of this analog combination module?
This module offers 12-bit resolution for both input and output channels. This provides adequate precision for most industrial control applications.
3. Does the IC200ALG430 require external power for the input channels?
No, the input circuits operate without an external power supply. However, the output circuits require an external 18-30 VDC supply.
4. What is the update rate for inputs and outputs?
The input update rate is 0.4 ms maximum. The output update rate is even faster at 0.3 ms maximum.
5. What diagnostic features does this module include?
The IC200ALG430 includes diagnostics for loss of user-side power. It also features LED indicators for field power and module status monitoring.
| Brand Name | |
| Model No. | IC200ALG430 |
| Product Type | Analog Combination Module |
