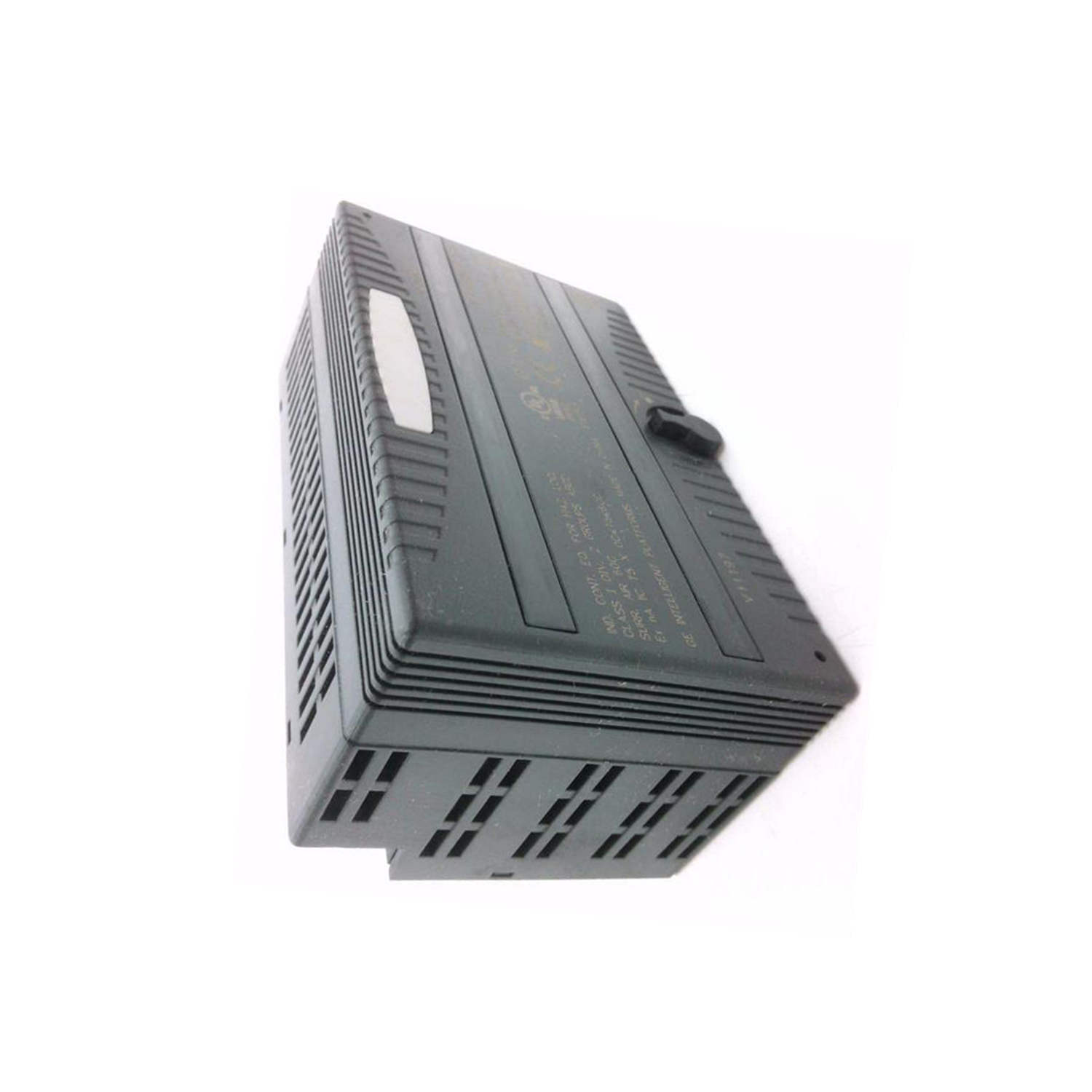

The IC200ALG331 is a versatile analog output module from the GE Fanuc VersaMax I/O platform. This module provides four individually isolated output channels. Each channel is software-configurable for either 4-20 mA current or +/-10 VDC voltage signals. Therefore, it serves as a critical interface between a PLC and field devices. Specifically, this module drives final control elements such as control valves, variable frequency drives, dampers, and positioners. It also handles analog signal relaying for panel meters and data loggers. Additionally, the IC200ALG331 supports cascade control architectures. Its fully software-configurable design eliminates the need for jumpers or switches. Consequently, this simplifies setup and reduces installation time.
The IC200ALG331 delivers outstanding precision with its 16-bit digital resolution. For current mode, the actual resolution is 381 nA nominal. For voltage mode, the resolution reaches 381 µV nominal. The output signal range spans from +1 to 20 mA in current mode. Meanwhile, the voltage mode covers -10 to +10 VDC. Furthermore, each channel achieves an accuracy of +/- 0.1% of full scale at 25°C. The maximum update rate is an impressive 7.0 ms per channel. Consequently, this ensures rapid response for time-sensitive control loops.
This analog output module requires an external supply voltage from +18 to +30 VDC. The backplane current consumption is 10 mA at 5 VDC and 115 mA at 3.3 VDC. For isolation, the module provides 250 VAC continuous between input and logic. It also offers 1500 VAC for 60 seconds between input and ground. Additionally, the channel-to-channel isolation is rated at 250 VAC continuous. Therefore, this robust isolation protects your control system from electrical noise and surges.
The IC200ALG331 includes comprehensive diagnostic capabilities. The module detects high/low limit conditions and over/underrange events. It also identifies open wire situations, loss of field power supply, and non-volatile memory faults. For output behavior during errors, you can configure each channel individually. For instance, you can select "hold last state" or downscale to zero (0). This flexibility ensures safe and predictable responses during system faults.
This output module features two LED indicators on its front panel. The FLD PWR LED shows the status of the field power supply. The OK LED indicates the module's operational health. These visual indicators enable quick troubleshooting. Therefore, maintenance personnel can rapidly diagnose issues without additional tools.
The IC200ALG331 occupies a single slot in the VersaMax I/O rack. It is fully compatible with the entire VersaMax platform. This includes various CPUs, power supplies, and communication modules. The module supports up to 4 words of analog output data from the system. No thermal derating occurs with this module. Hence, it performs reliably across its full operating temperature range.
We package every IC200ALG331 securely for worldwide delivery. Our packaging prevents electrostatic discharge and physical damage. For shipping, we utilize premier global couriers. Therefore, we ship via FedEx, UPS, and DHL to ensure fast and reliable service.
1x GE Fanuc IC200ALG331 Analog Output Module
1x Product manual and installation guide
1. What types of signals can the IC200ALG331 output?
The IC200ALG331 supports both current mode (4-20 mA) and voltage mode (+/-10 VDC) outputs. Each channel is individually software-configurable.
2. How many channels does this module have?
This module provides four individually isolated output channels. Each channel operates independently with its own configuration settings.
3. What is the update rate of this analog output module?
The maximum update rate is 7.0 ms per channel. This ensures fast response for demanding control applications.
4. Does the IC200ALG331 require jumpers for configuration?
No, this module is fully software-configurable. It does not require any jumpers or switches for setup.
5. What diagnostic features does this module offer?
The IC200ALG331 detects high/low limits, over/underrange, open wire, loss of field power, and memory faults. It also allows configurable output behavior during errors.
| Brand Name | |
| Model No. | IC200ALG331 |
| Product Type | Analog Output Module |
| hasMerchantReturnPolicy | Adjust according to reality |
| Shippingdetails | Adjust according to reality |
