The IC698ETM001 serves as the primary communication gateway for PACSystem RX7i controllers, connecting them to standard Ethernet networks for efficient data exchange. This module installs directly into any RX7i backplane and provides two independent 10/100 Mbps Ethernet ports with auto-sensing capability, plus one RS-232 serial port for station management. The IC698ETM001 supports a comprehensive suite of industrial protocols, including TCP/IP with SRTP (Service Request Transport Protocol), SRTP client functions, and Modbus TCP in both server and client modes. It also synchronizes system time with SNTP time servers, ensuring accurate time-stamping across distributed automation networks. With a dedicated 200 MHz microprocessor, this module handles communication tasks independently, offloading processing demands from the main CPU.
The IC698ETM001 operates on 5 VDC with a current draw of 1.2 A. Its two Ethernet ports use standard RJ45 connectors and require minimum CAT5 cabling for reliable 10/100 Mbps communication. Each port supports auto-negotiation, automatically adjusting to the connected network speed and duplex mode. The module accommodates one IP address at a time and supports redundant IP addressing configurations for enhanced network reliability. For serial communication, the IC698ETM001 includes a 9-pin female D-sub connector (RS-232 DCE) that functions as the station manager port, with baud rates adjustable from 1200 to 115200 bps. The module operates reliably across a temperature range of 0 °C to +60 °C, meeting standard industrial environmental requirements.
A key strength of the IC698ETM001 lies in its flexible network topology support. The two Ethernet ports enable daisy-chaining, allowing users to build linear, star, or ring topologies without requiring additional network switches for simple configurations. This design reduces cabling complexity and lowers overall system costs. The module connects directly to network hubs or switches without needing an external transceiver, simplifying installation. For remote I/O applications, the IC698ETM001 communicates seamlessly with distributed I/O stations across the factory floor. Additionally, it supports communication with visualization systems, third-party software tools, databases, and enterprise applications, making it an ideal bridge between plant-floor automation and higher-level IT systems.
The IC698ETM001 offers broad protocol compatibility to meet diverse application requirements. It supports TCP/IP communication services using SRTP, a protocol optimized for GE Fanuc controllers. Furthermore, the module acts as both a Modbus TCP server and client, enabling interoperability with a wide range of third-party devices such as drives, instruments, and other PLCs. For time-critical applications, the IC698ETM001 synchronizes with SNTP time servers on the Ethernet network, ensuring consistent time references across all connected controllers and devices. This feature proves particularly valuable for data logging, event sequencing, and coordinated motion control applications. The module stores its application process in onboard flash memory, and users can easily upgrade firmware via the CPU serial port when needed.
The front panel of the IC698ETM001 includes a comprehensive set of LED indicators that provide immediate operational feedback. The MODULE OK LED confirms the module is powered and functioning correctly. The LAN ONLINE LED indicates active network connectivity, while the STATUS LED reports overall communication health. For link status, the 100 LINK P1 and 100 LINK P2 LEDs illuminate when a 100 Mbps connection is established on each port respectively. These diagnostic tools help operators quickly identify network issues, link failures, or configuration errors without requiring additional test equipment. The station manager port further enables advanced configuration and diagnostic access through a standard terminal connection.
Installing the IC698ETM001 follows a straightforward procedure. First, ensure that the RX7i backplane power is turned off. Next, select an available slot on the backplane and slide the module into the card guides until it seats firmly against the backplane connector. Secure the module using the retaining screws at the top and bottom. Then, connect your Ethernet cables to the RJ45 ports labeled P1 and P2, using CAT5 or better cabling for optimal performance. For station management, connect a terminal or PC to the 9-pin serial port using a standard RS-232 cable. Finally, apply power and observe the LED indicators to confirm proper initialization. The IC698ETM001 automatically starts communicating with the CPU and other network devices without requiring complex manual configuration.
1 × IC698ETM001 Ethernet Interface Module
1 × Product identification and quick-start guide

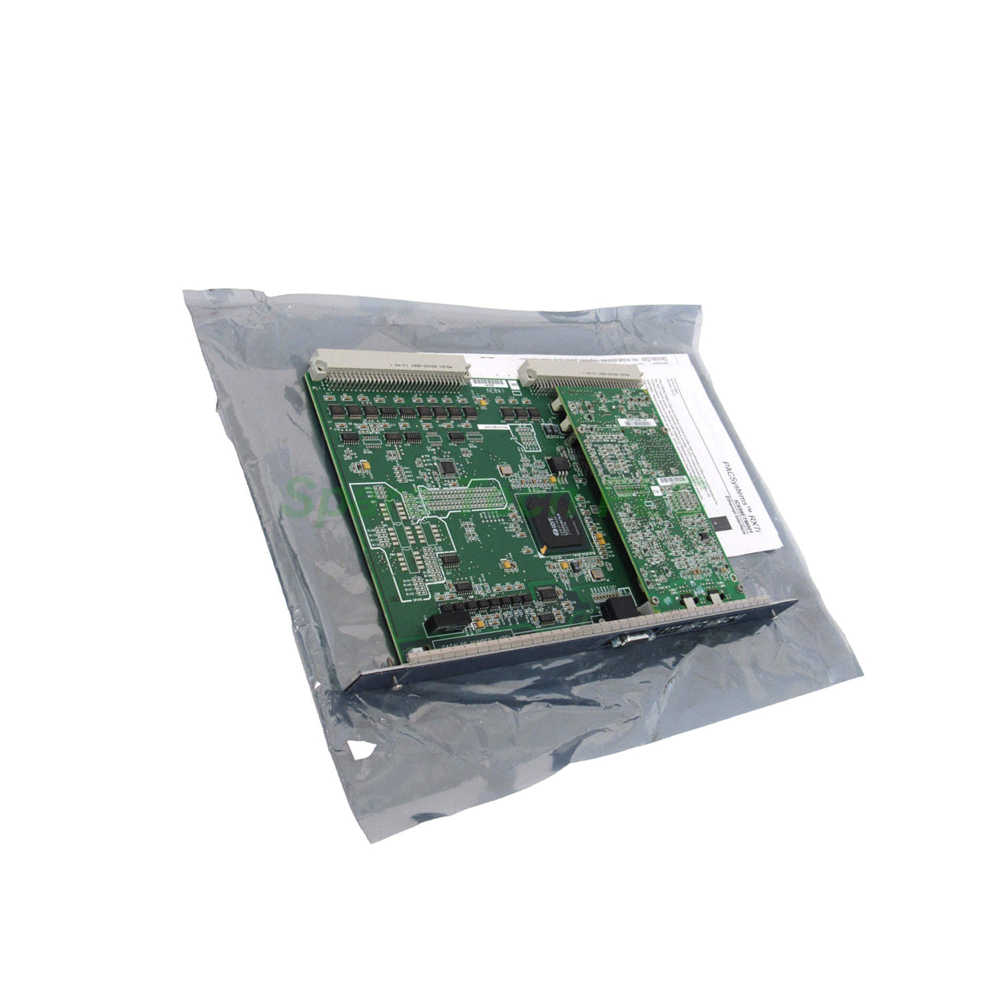

1 × Anti-static protective packaging bag
Shipping via FedEx, UPS, or DHL (with full tracking information)
1. Which protocols does the IC698ETM001 support for communication?
The IC698ETM001 supports TCP/IP with SRTP, SRTP client, Modbus TCP server, and Modbus TCP client, plus SNTP time synchronization.
2. Can I connect this module directly to a network switch?
Yes, the IC698ETM001 connects directly to a standard network switch or hub using RJ45 connectors and CAT5 cable without any external transceiver.
3. What is the purpose of the serial port on this module?
The serial port on the IC698ETM001 serves as a station manager interface for configuration, diagnostics, and firmware upgrades via a terminal connection.
4. Does this module support redundant IP addressing?
Yes, the IC698ETM001 supports redundant IP addressing configurations to enhance network reliability and fault tolerance.
5. What do the 100 LINK P1 and P2 LEDs indicate?
These LEDs on the IC698ETM001 illuminate when the corresponding Ethernet port is connected at 100 Mbps speed, confirming high-speed link status.
