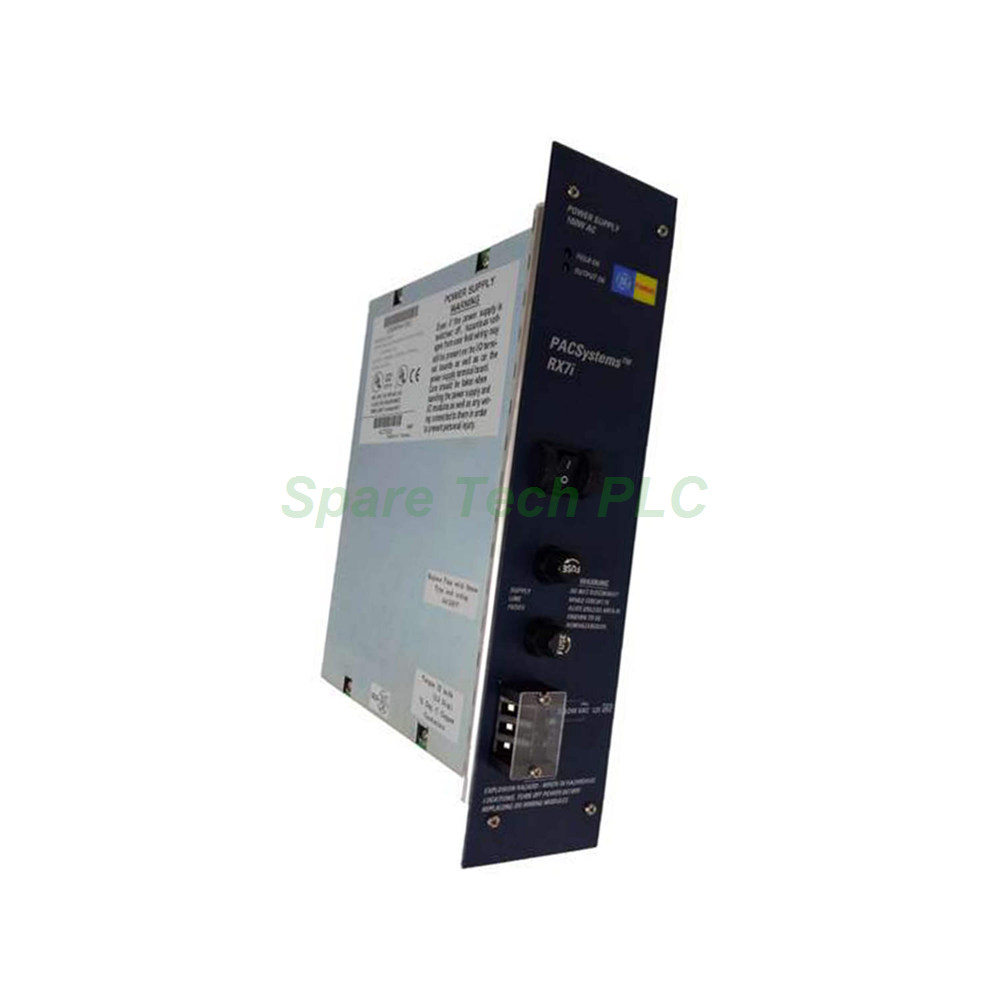

The IC698PSA100 serves as the primary power source for any PACSystem RX7i rack-based automation system. This module installs directly into the leftmost slot—designated as Slot 0—on a standard RX7i universal backplane. It accepts a wide AC input range from 85 to 264 VAC (47–63 Hz) or DC input from 100 to 150 VDC, making it suitable for diverse global power environments. The IC698PSA100 delivers three regulated DC outputs: 5.1 VDC at up to 20 A, +12 VDC at up to 2 A, and -12 VDC at up to 1 A, with a combined maximum output power of 100 W. Built-in protection features include overvoltage, overcurrent, and overtemperature safeguards, ensuring reliable power delivery to CPU, I/O, and communication modules across the backplane.
The IC698PSA100 operates with a nominal input of 120/240 VAC or 125 VDC. Its AC input frequency ranges from 47 to 63 Hz, and it maintains a minimum power factor of 0.99 for efficient energy usage. The module provides 1500 VDC isolation between input and output for enhanced system safety. Output voltages are precisely regulated at 5.1 VDC (4.875–5.25 V range), +12 VDC (11.64–12.6 V range), and -12 VDC (-11.64 to -12.6 V range). The total output power across all three outputs is 100 W, while the typical input power rating is 125 W, with a maximum of 150 W. For transient performance, the IC698PSA100 offers a minimum ride-through time of 15 ms and a hold-up time of 5 ms, protecting the system from brief power interruptions.
Safety remains a priority with the IC698PSA100. This module includes proactive overvoltage protection set at 5.7 to 6.7 V for the +5 VDC output. Overcurrent limits are configured at 21 A for the +5 VDC rail, 2.5 A for the +12 VDC rail, and 3.5 A for the -12 VDC rail. An overtemperature protection circuit further prevents damage under extreme thermal conditions. Front-panel LED indicators provide clear operational status at a glance: the FIELD OK LED confirms valid AC/DC input, the OUTPUT OK LED verifies proper DC output, and the OVER TEMP LED alerts users to excessive internal temperatures. Additionally, a front-mounted enable/disable switch allows operators to manually control the output channel without interrupting the AC line input.
The IC698PSA100 mounts exclusively in the leftmost slot (Slot 0) of any RX7i universal backplane, occupying a single slot position. Its rugged metal housing ensures durability in industrial environments. For field wiring, input terminals accept AWG #16 (1.3 mm²) solid or stranded copper wire with 75 °C insulation, while ground connections require AWG #12 (3.3 mm²) copper wire with the same insulation rating. Proper grounding significantly reduces system noise and enhances stability. The module operates reliably within a temperature range of 0 °C to 60 °C (32 °F to 140 °F) and is certified for Class 1 Division 2 hazardous locations, making it suitable for refinery, chemical, and other potentially explosive environments.
Installing the IC698PSA100 follows a clear and logical sequence. First, ensure that all external power sources are disconnected before handling the module. Next, insert the module into the leftmost slot (Slot 0) of the RX7i backplane, pressing firmly until the retaining screws align and lock it in place. Then, connect the AC or DC input power wires to the screw-type input terminals, observing correct polarity for DC connections. Use AWG #16 wire for line and neutral, and AWG #12 wire for the ground terminal. Finally, verify that all connections are tight, reapply power, and check that the FIELD OK and OUTPUT OK LEDs illuminate green. The IC698PSA100 automatically communicates with the backplane to supply logic-level signals to all installed modules without requiring any manual configuration.
1 × IC698PSA100 Power Supply Module
1 × Screw-type terminal connector kit (pre-installed)
1 × Product identification and wiring label
1 × Anti-static protective packaging bag
Shipping via FedEx, UPS, or DHL (with full tracking information)
1. Which backplanes support the IC698PSA100 power supply?
The IC698PSA100 mounts onto any standard RX7i universal backplane, occupying the designated leftmost slot (Slot 0) for proper system operation.
2. What is the total output power capacity of this module?
The IC698PSA100 delivers a combined output power of 100 W across its three DC outputs: 5.1 VDC at 20 A, +12 VDC at 2 A, and -12 VDC at 1 A.
3. Can I use this power supply with a DC input source?
Yes, the IC698PSA100 accepts DC input from 100 to 150 VDC, in addition to its AC input range of 85 to 264 VAC at 47–63 Hz.
4. What do the front-panel LED indicators show?
The IC698PSA100 features three LEDs: FIELD OK (valid input), OUTPUT OK (DC outputs active), and OVER TEMP (overtemperature warning) for instant status feedback.
5. Is this module suitable for hazardous area installations?
Yes, the IC698PSA100 carries Class 1 Division 2 certification, making it appropriate for use in environments with flammable gases or vapors.
When you place an order for the IC698PSA100, we process it promptly and ship worldwide via FedEx, UPS, or DHL. Each unit undergoes functional testing before packing and is carefully enclosed in anti-static material. Our package includes the module, its pre-installed terminal connectors, and a wiring label for easy reference. We do not include certificates or lengthy warranty documents in the box, but we offer responsive technical support for any integration questions. For urgent projects, please contact our sales team to confirm real-time stock levels and expedited shipping options. The IC698PSA100 remains a dependable, field-proven power solution for RX7i systems, combining wide input flexibility, robust protection, and clear diagnostic indicators. Choose this module to ensure stable, efficient power delivery across your entire PACSystem automation infrastructure.
| Brand Name | |
| Model No. | IC698PSA100 |
| Product Type | Power Supply Module |
| hasMerchantReturnPolicy | Adjust according to reality |
| Shippingdetails | Adjust according to reality |
