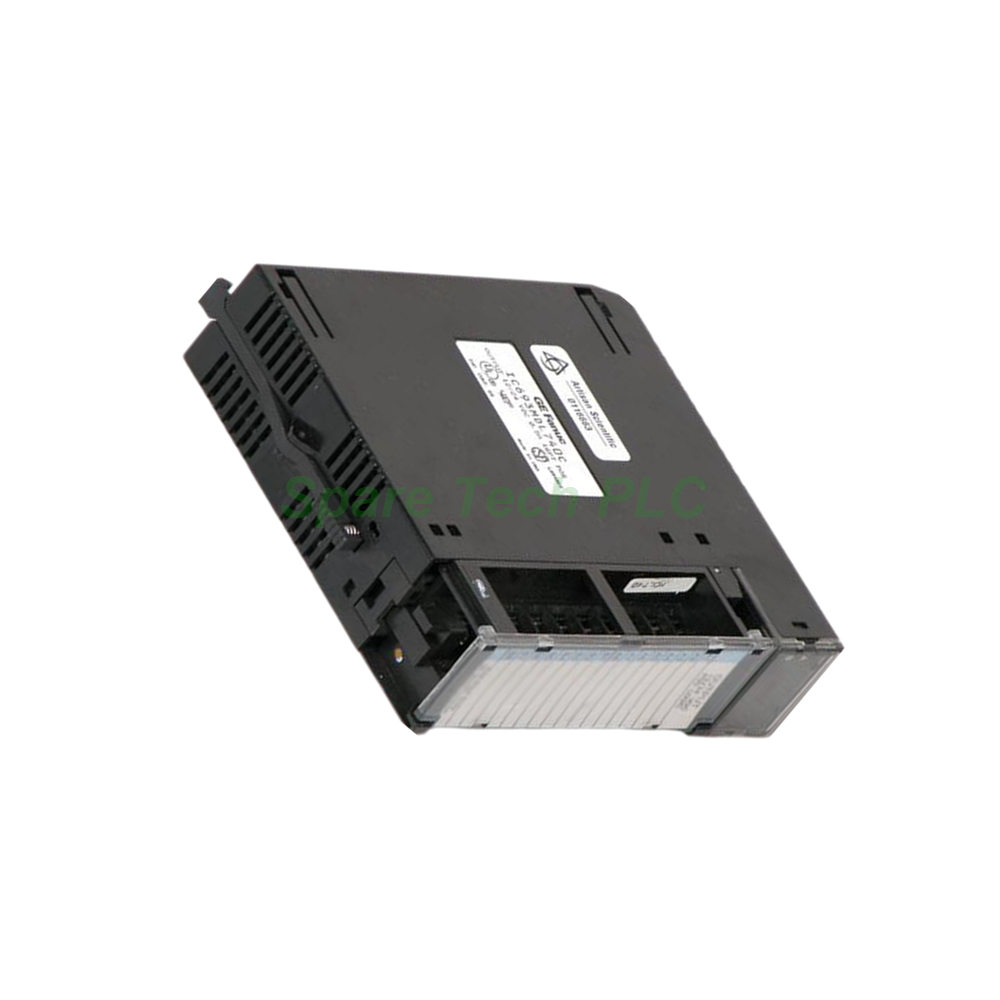

The GE Fanuc IC693MDL740 is a positive logic output module designed specifically for the Series 90-30 PLC system. This module provides sixteen sourcing output channels that deliver current directly to connected loads from the positive power bus. With two independent groups of eight channels each, the IC693MDL740 offers flexible wiring arrangements for various industrial applications. Each channel supports up to 0.5 A, making it capable of driving contactors, relays, pilot lamps, buzzers, and small solenoids. The module operates within a 12 to 24 VDC range and includes front-panel LED indicators for real-time status monitoring. Installation is simple, as the IC693MDL740 fits into any available slot on a 5-slot or 10-slot Series 90-30 baseplate.
The GE Fanuc IC693MDL740 delivers reliable digital output performance under typical factory conditions. It features sixteen sourcing outputs arranged into two groups, with each group containing eight channels. The output voltage range spans from 12 to 24 VDC, with a tolerance of +20% and -15%. For nominal operation, the module works with either 12 VDC or 24 VDC systems. Each channel provides a continuous output current of 0.5 A, while the maximum current per common group reaches 2 A for a 10 ms duration. Additionally, the inrush current rating is 4.78 A for 10 ms. The maximum output voltage drop is 1 VDC, ensuring efficient power delivery to loads. Both ON and OFF response times are rated at 2 ms maximum, which supports moderately fast switching applications. The off-state leakage current stays below 1 mA, preventing unintended load activation. For power consumption, the IC693MDL740 draws 110 mA from the 5 VDC backplane bus when all outputs are turned on.
The front panel of the IC693MDL740 includes individual LED indicators for each of the sixteen output channels. These lights clearly show the energized state of every point, allowing operators to verify output activity without opening the panel. Moreover, an additional status LED indicates the overall operational health of the module. This diagnostic feature significantly reduces troubleshooting time during maintenance or commissioning. Consequently, plant engineers can quickly identify faulty wiring or load issues by simply observing the LED pattern.
The GE Fanuc IC693MDL740 is fully compatible with the Series 90-30 PLC family. You can install it in any available slot on a 5-slot or 10-slot baseplate, provided that Slot 1 remains reserved for the CPU module. The number of modules you can install depends on the available memory capacity of your controller. Specifically, the IC693MDL740 occupies minimal backplane resources, so multiple units can be used in larger systems. However, note that this module does not include internal fusing. Therefore, we strongly recommend adding external fuses on each output group to protect both the module and connected devices from overcurrent conditions. This precaution enhances system reliability and prevents damage caused by unexpected load faults.
The GE Fanuc IC693MDL740 uses a standard open-frame construction suitable for indoor panel mounting. Its operating temperature range is 0°C to 60°C, while storage temperatures can span from -40°C to 85°C. Relative humidity should remain between 5% and 95% without condensation. These parameters align with typical industrial environments, but you should still house the module inside a clean, dry control cabinet. Avoid exposing the IC693MDL740 to excessive dust, moisture, or corrosive gases, as these conditions may shorten its service life. Proper ventilation around the module is also recommended to maintain stable thermal performance.
Installing the GE Fanuc IC693MDL740 is a straightforward task. First, ensure that the PLC rack is powered off before inserting or removing any module. Next, select an available slot on the baseplate, excluding Slot 1. Slide the IC693MDL740 into the chosen slot until it firmly seats against the backplane connector. Secure the module using the retaining screws at the top and bottom. After installation, connect your field devices to the terminal blocks according to your wiring diagram. Remember that this is a sourcing output module, so the load connects between the negative power bus and the module output. Finally, power up the system and verify that the LED indicators respond correctly to your control logic.
When you receive the GE Fanuc IC693MDL740, the package includes:
GE Fanuc IC693MDL740 module (1 unit)
Quick-start installation guide (printed)
Mounting screws (2 pieces)
Terminal block connector (pre-attached)
Please note that external fuses, wiring cables, and power supplies are not included. Furthermore, no certificates or warranty documents are provided with this shipment.
We dispatch all orders through trusted global carriers. Specifically, we use FedEx, UPS, and DHL as our standard shipping partners. Each IC693MDL740 is carefully packed in anti-static material and cushioned packaging to prevent transit damage. Tracking information will be sent to you within 24 hours after order confirmation. For time-sensitive projects, expedited shipping options are available at checkout.
Q1: What is the output current rating per channel on the IC693MDL740?
Each channel provides 0.5 A continuously. The maximum inrush current is 4.78 A for 10 ms.
Q2: Is the IC693MDL740 compatible with 12 VDC systems?
Yes. The module accepts 12 to 24 VDC with a tolerance of +20% and -15%, covering both nominal voltages.
Q3: Does this module include internal fusing for overcurrent protection?
No. The IC693MDL740 does not have built-in fuses. We recommend adding external fuses per output group for protection.
Q4: How many output groups does the IC693MDL740 have?
It has two independent groups. Each group contains eight channels, giving a total of sixteen output points.
Q5: Can I install the IC693MDL740 in any slot of the Series 90-30 rack?
Yes, except Slot 1. That slot is reserved exclusively for the CPU module. Any other available slot works fine.
