The GE Fanuc IC695PSD140 is a versatile power supply module designed for the RX3i PACSystem platform. This DC power supply accepts an input voltage range of 18 to 30 VDC and provides a maximum output power of 40 Watts. It delivers three separate output voltages: 5.1 VDC, 3.3 VDC, and 24 VDC for relay circuits. The IC695PSD140 supports both load sharing and redundancy configurations, making it suitable for mission-critical applications. You can install up to four units on a single RX3i universal backplane. The module occupies one slot and features front-panel LED indicators for power, fault, overtemperature, and overload status. With its robust design and simple installation, the IC695PSD140 ensures stable and reliable power delivery to all RX3i modules in your system.
The GE Fanuc IC695PSD140 offers precise and stable output characteristics for demanding industrial environments. Its input voltage range spans from 18 to 30 VDC, with a maximum input power of 60 Watts at full load. The module produces three DC outputs. First, the 5.1 VDC output delivers 0 to 6 Amps and serves most RX3i logic modules. Second, the 3.3 VDC output provides 0 to 9 Amps for internal circuitry. Third, the 24 VDC output supplies 0 to 1.6 Amps for power circuits and output relay modules. The maximum total output power is 40 Watts, with each of the 5.1 VDC and 3.3 VDC rails limited to 30 Watts individually. The module features an output ripple of 150 mV and a noise level of 150 mV, ensuring clean power for sensitive electronics. The ride-through time reaches 20 ms, which means the IC695PSD140 can sustain output during brief input interruptions.
The GE Fanuc IC695PSD140 excels in applications that demand high availability. It supports two operational modes: load sharing and redundancy. In load sharing mode, multiple power supplies share the total system load, reducing stress on individual units and extending their service life. In redundancy mode, one power supply acts as the primary while another stands by as a backup. If the primary fails, the backup automatically takes over without interrupting system operation. You can install up to four IC695PSD140 modules on a single RX3i universal backplane. For redundancy configurations, all power supplies must connect to the same power source. Additionally, never turn off the front-panel On/Off switch on any active module in a load-sharing arrangement, as this may compromise system stability.
The GE Fanuc IC695PSD140 fits into any RX3i universal backplane and occupies only one slot. It works with all RX3i CPU modules and I/O devices. However, you cannot use the IC695PSD140 with the IC695PSD040 or the IC695PSA040 power supplies in redundancy or increased capacity modes. These combinations are incompatible and may cause equipment damage. The IC695PSD140 does not include any jumper or DIP switches, so configuration is minimal. For wiring, we recommend using #14 to #22 AWG wire for terminal connections. Each input terminal accommodates up to 6 Amps maximum. When installing multiple units, ensure proper ventilation around each module to prevent overheating.

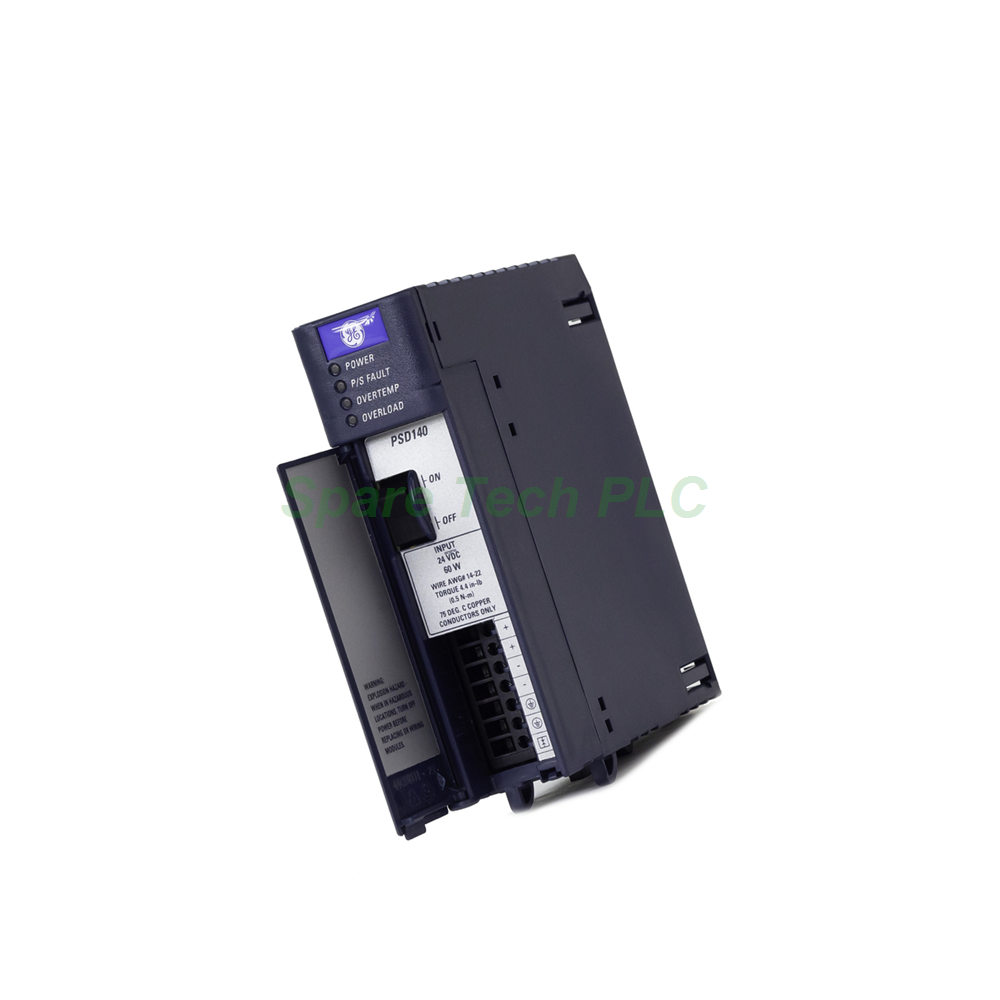

The front panel of the IC695PSD140 includes four LED indicators that provide clear operational status. The Power LED shows green when the module functions normally and amber when it operates in a degraded state. The P/S Fault LED lights red when the module detects an internal fault. The Overtemperature LED glows amber if the module exceeds its safe operating temperature. The Overload LED illuminates amber when the output current exceeds the rated capacity. These indicators enable quick diagnostics and reduce troubleshooting time. By monitoring these LEDs, you can identify issues such as excessive load, poor ventilation, or internal failures before they cause system shutdown.
The GE Fanuc IC695PSD140 operates reliably across a wide range of environmental conditions. Its operating temperature range spans 0°C to 60°C, while storage temperatures can extend from -40°C to 85°C. Relative humidity tolerance ranges from 5% to 95% without condensation. The module uses an open-frame design, so we recommend installing it inside a clean, dry control cabinet. Avoid exposing the IC695PSD140 to excessive dust, moisture, or corrosive gases. Proper ventilation around the module is essential to maintain stable thermal performance. The module weighs approximately 0.80 kg and has a compact form factor suitable for standard RX3i racks.
Installing the GE Fanuc IC695PSD140 requires following a few simple steps. First, ensure the RX3i backplane is powered off before inserting or removing any module. Next, select an available slot on the universal backplane. The IC695PSD140 occupies one slot and can go into any position. Slide the module firmly into the chosen slot until it seats properly against the backplane connector. Secure it using the retaining screws. Then, connect the DC power source to the input terminals on the front panel, observing correct polarity. For redundancy setups, connect all power supplies to the same DC source. Finally, power up the system and verify that the LED indicators show normal operation. The module does not require any software configuration.
When you receive the GE Fanuc IC695PSD140, the package includes:
GE Fanuc IC695PSD140 power supply module (1 unit)
Quick-start installation guide (printed)
Mounting screws (2 pieces)
Terminal block connector (pre-attached)
Please note that DC power cables, backplane connectors, and additional power supplies are not included. Additionally, no certificates or warranty documents come with this package.
We ship all orders through reputable international carriers. Specifically, we offer FedEx, UPS, and DHL as our standard shipping options. Each IC695PSD140 arrives in anti-static material and foam cushioning to prevent damage during transit. We will email tracking numbers within 24 hours of dispatch. For urgent projects, expedited shipping options are available at checkout.
Q1: What is the maximum output power of the IC695PSD140?
The IC695PSD140 delivers a maximum total output power of 40 Watts. The 5.1 VDC and 3.3 VDC outputs each support up to 30 Watts individually.
Q2: Can I use the IC695PSD140 with the IC695PSD040 or IC695PSA040 in redundancy mode?
No. The IC695PSD140 is not compatible with the IC695PSD040 or the IC695PSA040 in redundancy or increased capacity modes. Mixing these models may cause equipment damage.
Q3: How many IC695PSD140 modules can I install on one backplane?
You can install up to four IC695PSD140 modules on a single RX3i universal backplane for load sharing or redundancy applications.
Q4: Does the IC695PSD140 provide isolation between input and output?
No. The IC695PSD140 does not offer isolation between its input and output circuits. Design your system accordingly.
Q5: What do the LED indicators on the IC695PSD140 show?
The LEDs indicate Power (green/amber), P/S Fault (red), Overtemperature (amber), and Overload (amber). These lights help you quickly diagnose operating status and potential issues.
