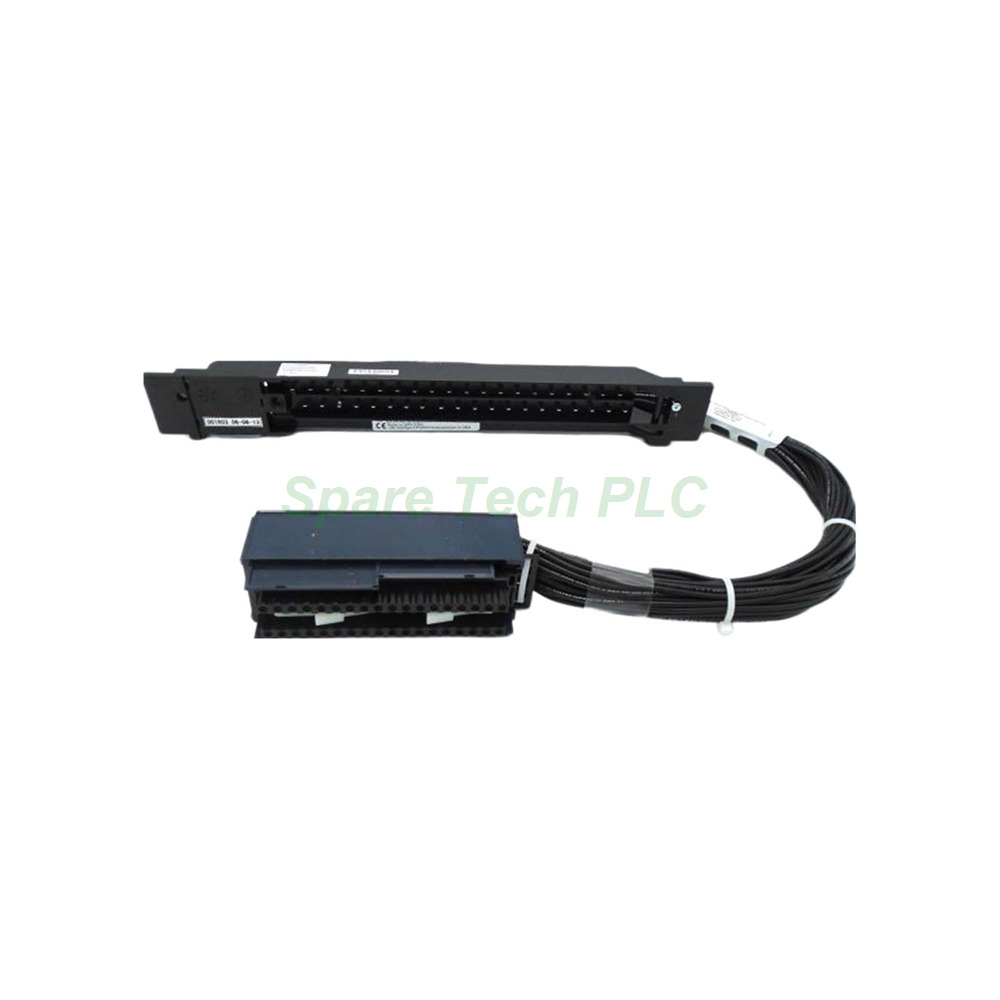

The GE Fanuc IC695CRH003 is a harness assembly designed specifically for the RX3i PACSystems platform. This cable assembly enables seamless connection between the Series 90-70 MDL250 input module and the RX3i MDL260 module. The IC695CRH003 supports 120 VAC operation and provides 32 input points divided into four groups of eight. This grouping allows you to use each input group with a separate phase of the AC supply, offering flexibility in wiring and system design. The harness meets VME Standard C.1, ensuring compatibility and reliable performance in industrial control systems. With its straightforward installation and robust construction, the IC695CRH003 simplifies module integration and reduces wiring errors.
The GE Fanuc IC695CRH003 harness assembly offers specific technical parameters that define its capabilities. It carries a voltage rating of 120 Volts AC, making it suitable for standard industrial AC input applications. The harness supports 32 input points, which are organized into 4 separate groups. Each group contains 8 input points, allowing distributed wiring across multiple AC phases. The IC695CRH003 works exclusively with the IC697MDL250 module and the IC694MDL260 module, serving as the physical connection between these two devices. This harness also complies with VME Standard C.1, which guarantees mechanical and electrical compatibility within the RX3i backplane environment.
The GE Fanuc IC697MDL250 is a 120 Volts AC input module that provides 32 input points for programmable controllers. This module features reactive inputs with current-voltage characteristics that comply with IEC standards. The IC697MDL250 works with a wide range of proximity switches, offering flexibility in sensor selection. LED indicators on the module display the on or off status of each input point, simplifying diagnostics. When using the IC695CRH003 harness, the IC697MDL250 draws 0.35 Amps at 5 Volts DC. The harness ensures proper signal routing between the MDL250 and the RX3i system, maintaining signal integrity across the connection.
The GE Fanuc IC694MDL260 module, when paired with the IC695CRH003, provides advanced input capabilities for the RX3i platform. Each input group on the IC694MDL260 offers isolation, while all input circuits within the same group share a common user connection. This design simplifies wiring for multi-phase AC systems. The IC695CRH003 enables you to configure the input filter times through a programmer, giving you control over response characteristics. The power requirement for the IC694MDL260 with the IC695CRH003 harness is 220 milliamps at 5 Volts DC when all inputs are on. The off-state voltage range spans 0 to 20 Volts AC, and the minimum on-state current is 5 milliamps. The maximum off-state current is 2.5 milliamps.
The IC695CRH003 harness assembly finds use in system upgrades and migrations from Series 90-70 to RX3i platforms. When you need to retain existing IC697MDL250 input modules while upgrading the controller to RX3i, the IC695CRH003 provides the necessary interface. This harness also supports mixed systems where both 90-70 and RX3i modules coexist. The 32 input points across 4 groups suit applications such as machine monitoring, conveyor systems, and packaging lines that require multiple AC input signals. Furthermore, the IC695CRH003 reduces the need for custom wiring, saving installation time and minimizing connection errors.
The IC695CRH003 harness assembly meets VME Standard C.1, a widely recognized specification for mechanical and electrical compatibility in VMEbus systems. This compliance ensures that the harness fits properly within the RX3i backplane and maintains consistent signal integrity. The VME Standard C.1 also guarantees that the IC695CRH003 works reliably with other RX3i components. This standardization simplifies system design and provides confidence in long-term operation.
The GE Fanuc IC695CRH003 uses durable materials that withstand typical industrial environments. Its cable construction resists flexing and abrasion, ensuring reliable connections over extended use. The harness is lightweight and flexible, which simplifies routing within control cabinets. While specific temperature and humidity ratings align with the host modules, we recommend installing the IC695CRH003 inside a clean, dry panel. Avoid exposing the harness to excessive heat, moisture, or chemicals that could degrade its insulation or connectors.
Installing the GE Fanuc IC695CRH003 is a straightforward process. First, ensure that the system is powered off before making any connections. Next, locate the IC697MDL250 module and the IC694MDL260 module on your backplane. Connect one end of the IC695CRH003 to the IC697MDL250 and the other end to the IC694MDL260. Ensure that the connectors seat firmly and latch properly. Route the harness away from sharp edges and high-voltage cables to prevent damage. After installation, power up the system and verify that the input signals appear correctly at the RX3i side. The LED indicators on both modules will help confirm proper operation.
When you receive the GE Fanuc IC695CRH003, the package includes:
GE Fanuc IC695CRH003 harness assembly (1 unit)
Installation instructions (printed sheet)
Please note that host modules, backplane connectors, and programming software are not included. Additionally, no certificates or warranty documents come with this package.
We ship all orders through reputable international carriers. Specifically, we offer FedEx, UPS, and DHL as our standard shipping options. Each IC695CRH003 arrives in a protective anti-static bag and cushioned packaging to prevent damage during transit. We will email tracking numbers within 24 hours of dispatch. For urgent projects, expedited shipping options are available at checkout.
Q1: Which modules work with the IC695CRH003 harness?
The IC695CRH003 connects the Series 90-70 IC697MDL250 input module to the RX3i IC694MDL260 module. This harness serves as the interface between these two devices.
Q2: What voltage rating does the IC695CRH003 support?
The harness carries a voltage rating of 120 Volts AC. It suits standard industrial AC input applications.
Q3: How many input points does the IC695CRH003 handle?
The IC695CRH003 supports 32 input points arranged into 4 groups. Each group contains 8 input points for flexible wiring.
Q4: Does the IC695CRH003 comply with any industry standards?
Yes. The IC695CRH003 meets VME Standard C.1, ensuring mechanical and electrical compatibility within the RX3i backplane environment.
Q5: What is the power requirement for the IC694MDL260 when using this harness?
When paired with the IC695CRH003, the IC694MDL260 draws 220 milliamps at 5 Volts DC with all inputs turned on.
