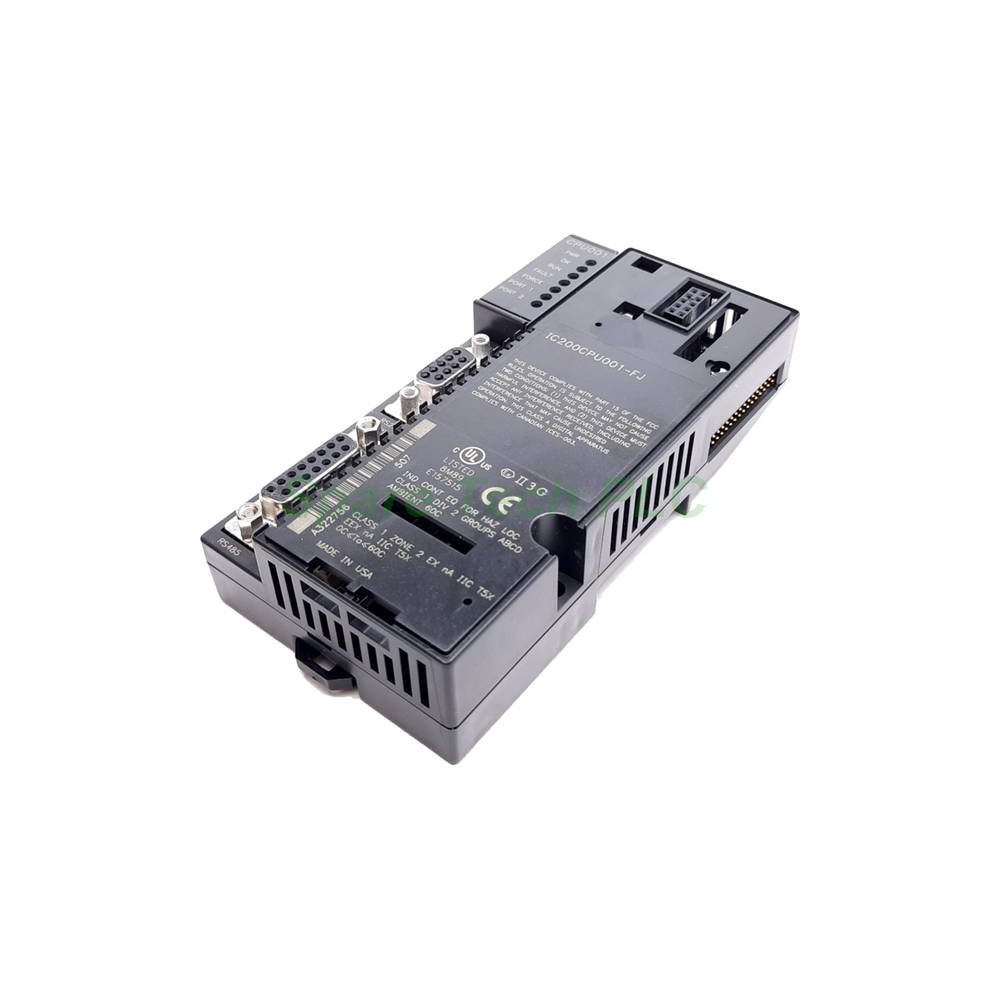

GE Fanuc IC200CPU001 Versamax CPU Module

GE Fanuc IC200CPU001 Versamax CPU Module

Product Introduction

The GE Fanuc IC200CPU001 is a central processing unit built for the Versamax platform. This compact controller handles up to 2048 discrete inputs and 2048 discrete outputs. Moreover, it provides 34KB of configurable memory for user programs, analog words, and internal registers. The module mounts easily on a DIN rail or panel. Engineers rely on the IC200CPU001 for flexible control in distributed I/O architectures. It exchanges data with HMIs, SCADA systems, and other compatible partner devices. The front panel includes LED indicators and a run/stop mode switch behind the module door.

Technical Specifications

The IC200CPU001 module supports 1024 discrete internal bits and 256 temporary bits. In addition, it offers 1280 global discrete bits for shared data. The typical Boolean execution speed reaches 1.8 milliseconds per 1K of logic. Floating point math is fully supported, which helps with complex calculations. The CPU also provides 32 Modbus registers and an enhanced PID function block. Furthermore, a battery-backed real-time clock keeps accurate time. This clock achieves 100 ppm accuracy across the full temperature range. That equals roughly plus or minus 9 seconds per day. The clock timestamps critical events during operation.

Memory and Programming

This CPU uses system flash memory and battery-backed RAM. The 34KB configurable memory covers program code, registers, and analog I/O words. Users program the device with Ladder Diagram or Instruction List languages. Configuration relies on CIMPLICITY Machine Edition Logic Developer, VersaPro, or Control programmer software. Besides these tools, the CPU supports override functions for flexible testing. The memory holds programs safely during power loss, thanks to the battery backup.

Communication Ports and Protocols

Two serial ports come integrated on the IC200CPU001 CPU. First, one RS-232 interface handles point-to-point connections. Next, one RS-485 port supports multi-drop networks. These ports work with SNP Slave, RTU Slave, and Serial I/O protocols. Therefore, the module fits distributed I/O and data exchange tasks. The serial ports are user configurable through software. They can switch automatically between RTU and SNP slave modes when needed. This flexibility simplifies integration with existing systems.

Power and Mechanical Parameters

Backplane current consumption reaches 140 milliamps at 5 Volts. Meanwhile, the 3.3 Volt rail draws 100 milliamps. The compact housing fits standard Versamax racks. Installation requires a DIN rail or panel mount with a compatible power supply. The CPU operates reliably in industrial environments. LED indicators on the front show different system events. These lights help technicians diagnose issues quickly.

Installation Guide

First, mount the IC200CPU001 module on a DIN rail beside the power supply. Next, connect the backplane power and secure the module latches. Then, wire the RS-232 and RS-485 ports to the target devices. After that, configure the serial ports using the programming software. Set the protocol mode to RTU Slave, SNP Slave, or Serial I/O as required. Subsequently, download the user program through the appropriate port. Finally, place the run/stop switch in the run position and verify LED status. Proper grounding and cable shielding ensure stable communication.

Packaging List

• 1 x GE Fanuc IC200CPU001 CPU Module

• 1 x Terminal connector set

• 1 x Installation guide

Shipping

We ship via Fedex, UPS, and DHL. Tracking details are provided after dispatch.

FAQ

Q1: What memory does the IC200CPU001 provide?
A: The IC200CPU001 offers 34KB of configurable memory. This space stores user programs, registers, and analog I/O words.

Q2: Which programming languages are supported?
A: It supports Ladder Diagram and Instruction List. Users configure it with CIMPLICITY Machine Edition, VersaPro, or Control programmer.

Q3: How many communication ports are available?
A: The module includes one RS-232 port and one RS-485 port. Both support SNP Slave, RTU Slave, and Serial I/O protocols.

Q4: Does this CPU have a real-time clock?
A: Yes, a battery-backed real-time clock is installed. It achieves 100 ppm accuracy, about plus or minus 9 seconds per day.

Q5: What are the power requirements?
A: The IC200CPU001 draws 140 milliamps at 5 Volts. It also consumes 100 milliamps at 3.3 Volts from the backplane.
