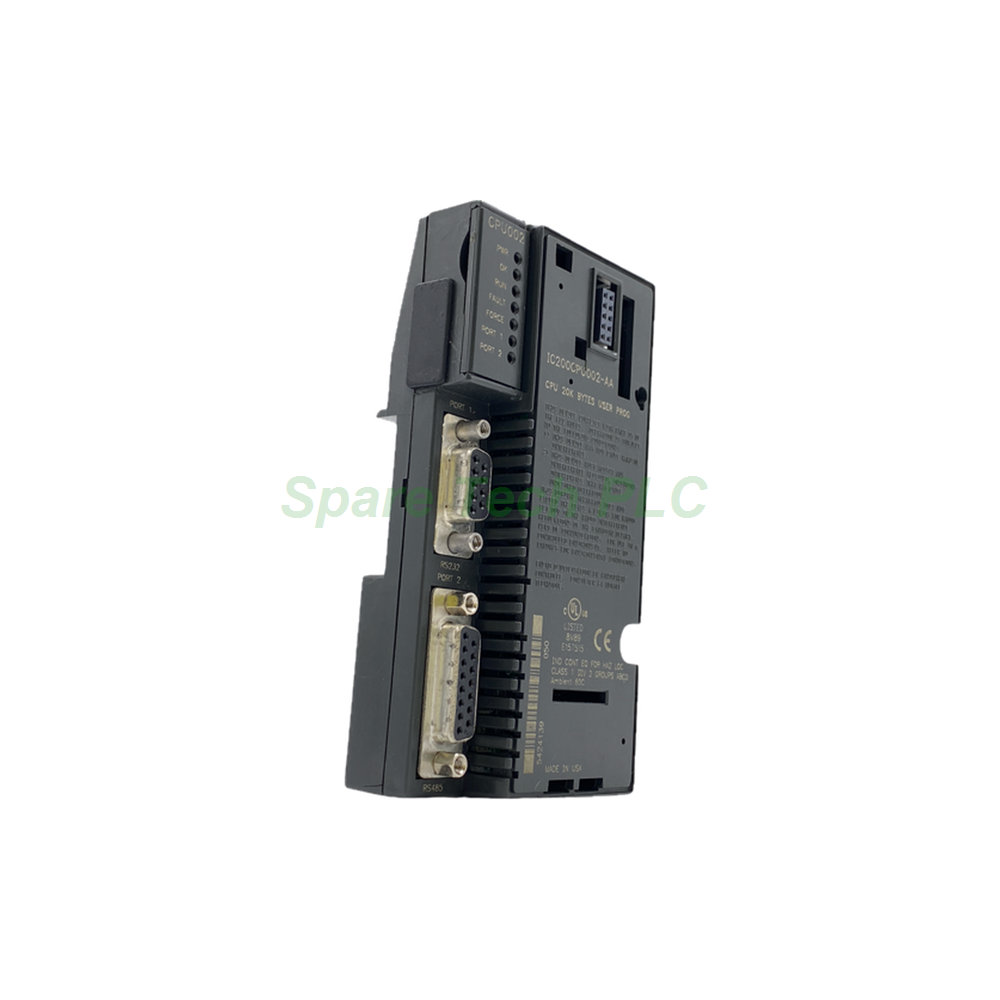

IC200CPU002 Versamax PLC CPU by GE Fanuc
Product Introduction
The IC200CPU002 CPU module belongs to the GE Fanuc Versamax series. This controller manages different PLC modules with ease. It provides 2048 digital inputs and 2048 digital outputs for versatile control tasks. Furthermore, the unit includes 42 KB of user-configurable memory for program storage. The module uses non-volatile flash memory to retain programs and instructions safely. It supports ladder diagram and instruction list programming languages. Additionally, both floating point and real data functions are available to users.
Technical Specifications
The IC200CPU002 CPU operates on a 5 V power supply. It features RS-232 and RS-485 serial ports for internal communication. These ports support SNP slave, RTU slave, and Serial I/O protocols. The real-time clock accuracy reaches 0.01%. Meanwhile, the time-of-day clock accuracy is 0.0023% at 30 degrees Celsius. A battery powers the real-time clock, and it lasts up to 5 years under normal usage. The module also includes a Run/Stop switch for starting and stopping operations. This switch helps control data write processes and isolated data changes.
Mechanical and Environmental Parameters
The IC200CPU002 module mounts vertically or horizontally on a DIN rail. The DIN rail requires proper grounding to protect against EMC interference. Front-facing LED indicators illuminate during module activity. These lights help operators monitor status quickly. The compact design fits space-limited control cabinets. Its robust construction supports reliable performance in industrial settings.
Installation Guide
First, select a suitable DIN rail location inside the control panel. Next, verify that the rail is properly grounded for EMC protection. Then, snap the IC200CPU002 module onto the rail in either vertical or horizontal orientation. After that, connect the 5 V power supply to the module. Subsequently, wire the RS-232 or RS-485 serial ports as needed. Finally, use the Run/Stop switch behind the module door to start operation. For instance, you can change isolated data through this switch during setup.
Packaging List
FAQ
Q1: What is the memory size of the IC200CPU002?
A: The IC200CPU002 provides 42 KB of user-configurable memory for programs and data.
Q2: How long does the battery last?
A: The battery lasts approximately 5 years with normal usage. It powers the real-time clock.
Q3: Which communication protocols does this CPU support?
A: It supports SNP slave, RTU slave, and Serial I/O protocols via RS-232 and RS-485 ports.
Q4: Can I mount this module vertically?
A: Yes, the IC200CPU002 supports both vertical and horizontal DIN rail mounting.
Q5: What shipping methods are available?
A: We ship via Fedex, UPS, and DHL for reliable delivery.
Q6: What is the power supply requirement?
A: The module requires a 5 V power supply for proper operation.
Q7: Does the CPU support floating point math?
A: Yes, both floating point and real data functions are supported.
