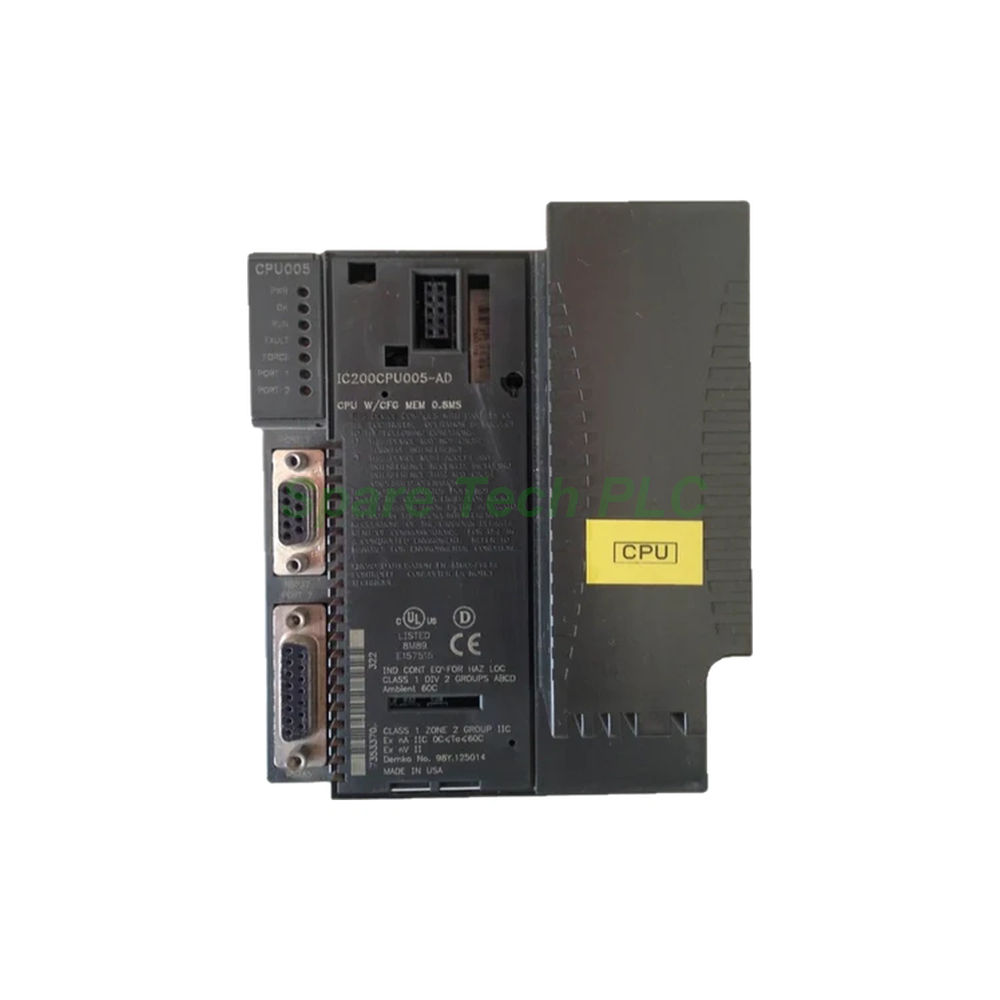

IC200CPU005 Versamax PLC CPU by GE Fanuc
Product Introduction
The IC200CPU005 CPU module belongs to the GE Fanuc Versamax series. This controller provides 64 KB of user-configurable memory for demanding tasks. It manages up to 2048 input and output points across 64 modules. Furthermore, the unit includes RS-232 and RS-485 serial ports for internal networking. These ports connect the CPU to a programmer or personal computer for configuration. The module supports ladder diagram and instruction list programming. Additionally, its boolean execution speed reaches 0.8 ms/k for fast processing.
Technical Specifications
The IC200CPU005 CPU operates on a 5 V power supply. It draws 35 milliamps without a serial port converter. Moreover, current consumption rises to 135 milliamps when a converter is used. The real-time clock stores time events during operation. A removable battery powers both the RAM and the real-time clock. Meanwhile, the module supports a maximum of 2048 I/O points. Its compact dimensions measure 4.20 inches wide, 5.04 inches long, and 2.72 inches deep. The CPU carries CE certification for quality assurance.
Mechanical and Environmental Parameters
The IC200CPU005 module uses an open enclosure design. Therefore, keep it away from water sprays and moisture. It operates within a temperature range of 0 to 60 degrees Celsius. Convection cooling handles heat dissipation efficiently. As a result, air flow to the module must remain unobstructed. The CPU requires proper grounding to prevent electrical damage. Its small form factor fits tight control cabinets with ease.
Installation Guide
First, select a suitable DIN rail mounting base for the CPU. Next, verify that the rail is properly grounded for electrical protection. Then, snap the IC200CPU005 module onto the base securely. After that, connect the 5 V power supply to the unit. Subsequently, wire the RS-232 or RS-485 serial ports as needed. Finally, insert the removable battery to power the RAM and clock. For instance, you can connect a personal computer through the serial port for configuration.
Packaging List
FAQ
Q1: What is the memory size of the IC200CPU005?
A: The IC200CPU005 provides 64 KB of user-configurable memory for programs and data.
Q2: How many I/O points does this CPU support?
A: It supports a maximum of 2048 input and output points across 64 modules.
Q3: What is the boolean execution speed?
A: The boolean execution time is 0.8 ms/k for fast control response.
Q4: What are the dimensions of this module?
A: The CPU measures 4.20 inches wide, 5.04 inches long, and 2.72 inches deep.
Q5: What shipping methods are available?
A: We ship via Fedex, UPS, and DHL for reliable delivery.
Q6: What is the current consumption?
A: It draws 35 milliamps at 5 V without a converter, or 135 milliamps with one.
Q7: Does the CPU need special cooling?
A: Yes, it uses convection cooling, so keep air flow unobstructed.
