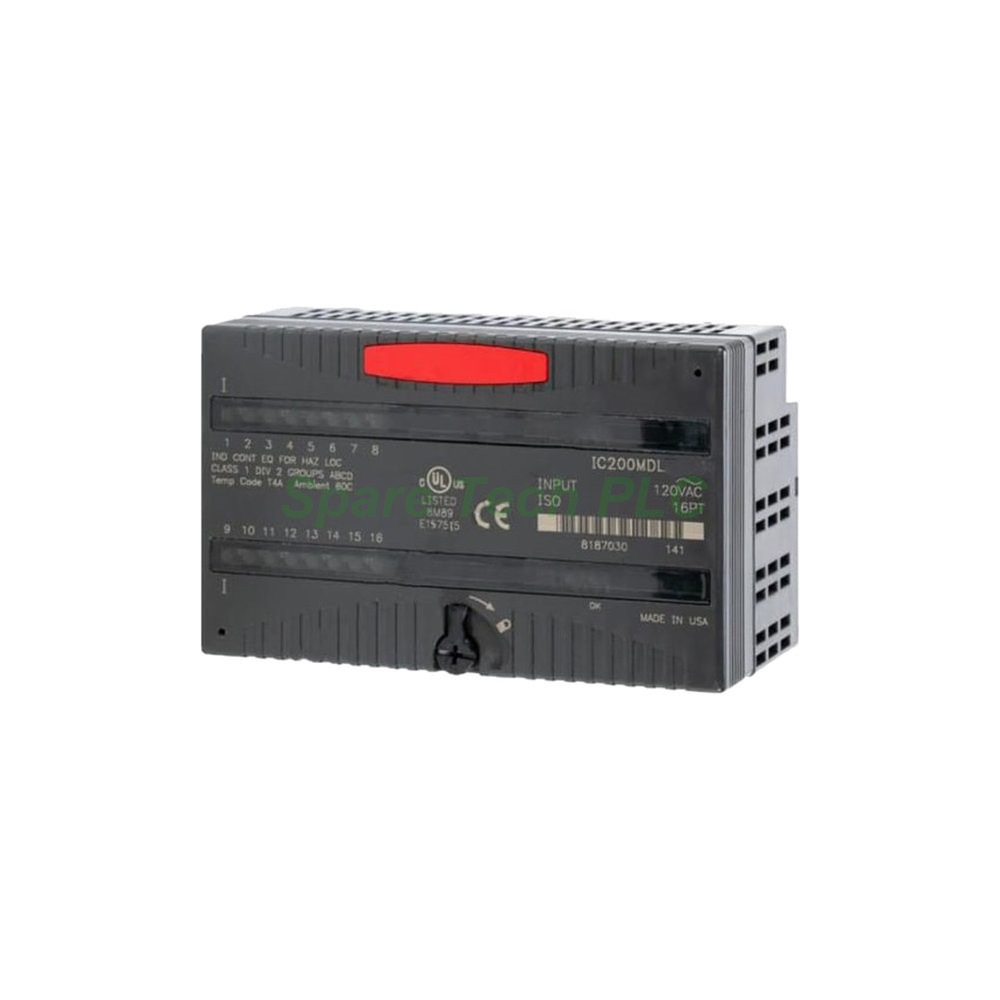

The IC200MDL241 is a discrete input module for the Versamax I/O and control system. It provides 16 non-isolated inputs arranged in two groups of eight. This module accepts 240 V AC signals from pushbuttons, sensors, and switches. Then, it sends them to the CPU as 16-bit discrete input data. Therefore, it fits demanding industrial control panels.
The IC200MDL241 offers 16 logic or sourcing inputs in two groups of eight channels each. It carries a nominal operating voltage rating of 240 V AC. The operating voltage range spans 0 to 264 V AC. Additionally, the on-state range covers 155 to 264 V AC. The off-state range covers 0 to 40 V AC.
The module draws all power from the backplane. It does not need a user-supplied power module. Maximum backplane current consumption reaches 110 milliamps at 5.0 Volts. Furthermore, the maximum response time for the on state is one cycle.
Group isolation reaches 1500 Volts for one minute between each group. However, the IC200MDL241 has no point-to-point isolation. This design balances safety with cost efficiency in standard applications.
The module includes 16 individually labeled LEDs. These show the status of each input point. One additional LED indicates backplane operation. Therefore, operators can quickly verify signal activity and power health.
The IC200MDL241 installs on a DIN rail-supported I/O carrier base. The carrier features snap-in terminals that simplify field wiring. It also supports hot swapping for reduced downtime. The module measures approximately 4.3 x 2.63 x 1.9 inches. Its compact design delivers flexible, cost-effective I/O similar to larger PLCs.
First, mount the Versamax I/O carrier on a DIN rail. Next, snap the IC200MDL241 into the carrier base. Then, wire the AC input devices to the snap-in terminals. After that, verify the backplane power LED turns on.
Check the numbered LEDs to confirm each input channel works. Ensure the input voltage stays within the 0 to 264 V AC range. Finally, confirm the backplane supply provides 110 milliamps at 5 Volts. This step supports stable long-term operation.
1x GE Fanuc IC200MDL241 Discrete Input Module
Q1: How many inputs does the IC200MDL241 provide?
A: The module offers 16 discrete inputs. They are arranged in two groups of eight channels each.
Q2: Does this module require an external power supply?
A: No, it draws all power from the backplane. No user-supplied power module is needed.
Q3: What is the operating voltage range?
A: The nominal rating is 240 V AC. The operating range spans 0 to 264 V AC.
Q4: What isolation does the IC200MDL241 offer?
A: It provides 1500 V isolation for one minute between groups. There is no point-to-point isolation.
Q5: Does the module support hot swapping?
A: Yes, the Versamax carrier base supports hot swapping. This feature helps reduce system downtime.
