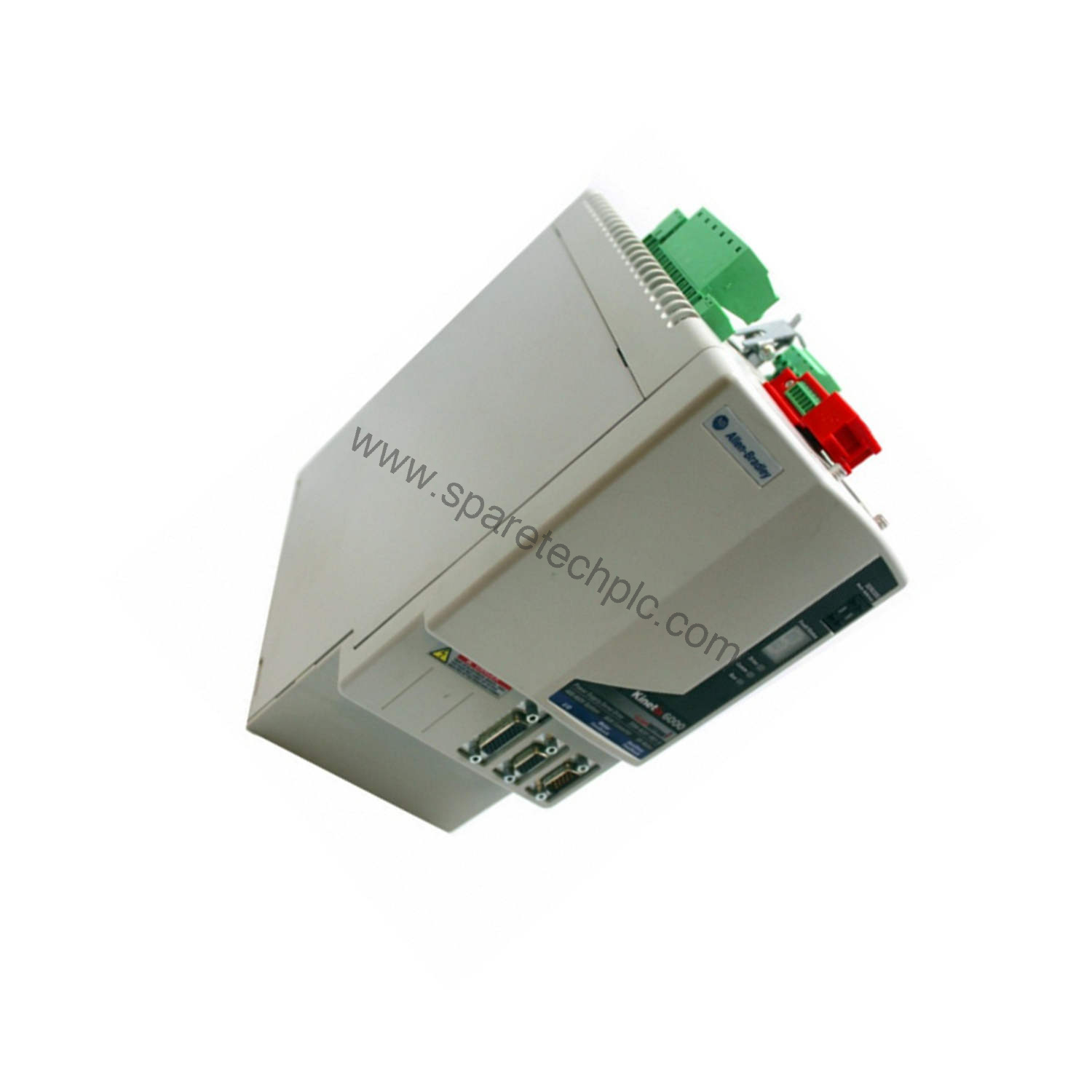

Allen-Bradley 2094-BC07-M05-M Kinetix 6000 Integrated Axis Power Module

## Product Overview

When your motion control system demands a robust and efficient power source, the Allen-Bradley 2094-BC07-M05-M delivers. This Kinetix 6000 Integrated Axis Module combines a converter and inverter in one unit, simplifying your cabinet layout and reducing wiring complexity. Designed for high-performance servo applications, it provides a reliable power backbone for multi-axis systems.

## Technical Specifications Breakdown

The 2094-BC07-M05-M operates on a nominal drive voltage of 360-480 Volts (3 Phase), with a voltage rating of 400/460VAC. Its converter section outputs 45 kW, while the inverter section delivers 49 A. The module dissipates 71-226 Watts of power, depending on load. Continuous output current to the bus is 67.7 A, and the output current rating is 45 Amperes. These parameters ensure stable power delivery even under demanding conditions.

## Industry Applications

This integrated axis module excels in applications requiring precise speed and torque control. Common use cases include packaging machinery, material handling, and converting lines. In a packaging line, the 2094-BC07-M05-M powers servo drives that control film feed, sealing, and cut-off, maintaining high throughput with minimal waste. Its modular design allows easy integration into existing Kinetix 6000 systems, reducing spare parts inventory.

## Installation & Setup Guidance

Proper installation ensures reliable operation. The module requires a minimum enclosure depth of 302 mm (11.9 in.) and an installation clearance of 80 mm (3.10 in.) at the bottom for airflow. Dimensions are 7.7 x 11.9 x 16.7 in (196 x 302 x 426 mm), and weight is 22.0 lbs (9.98 kg). Use the specified control input fuse (FNQ-R-10 or FNQ-R-7.5) and control input breaker (1492-SPM2D060 or 1492-SPM1D150) per the manual. For the DC bus, use a Bussmann FWJ-125A fuse.

## Maintenance & Reliability

Routine inspection of the 2094-BC07-M05-M focuses on verifying proper ventilation and checking for dust buildup. Operating temperature range is 32-122 F (0-50 C). The module's embedded safety features, such as Safe Speed and Safe Maximum Speed monitoring, help protect personnel and equipment, reducing unplanned downtime. Regular testing of these safety functions according to the manufacturer's guidelines is recommended.

## Compatibility & Integration

The 2094-BC07-M05-M is part of the Kinetix 6000 family and integrates seamlessly with Allen-Bradley ControlLogix and CompactLogix controllers. It uses a common DC bus architecture, allowing multiple axis modules to share power. The module supports velocity and current loop bandwidths of 500 Hz and 1300 Hz respectively, with a PWM frequency of 4 kHz. Verify compatibility with your existing system before ordering.

## Selection Guide & Purchasing Advice

Before purchasing the 2094-BC07-M05-M, confirm your system voltage matches the 360-480VAC range and that your enclosure meets the minimum depth requirement. The module's part number is 2094-BC07-M05-M, manufactured by Rockwell Automation under the Allen-Bradley brand. For current availability and lifecycle status, contact SpareTechPLC. We stock this module and can advise on replacement options if needed.

## Frequently Asked Questions

**Q: What is the input voltage range for the 2094-BC07-M05-M?**
A: The nominal drive voltage is 360-480 Volts (3 Phase), with a voltage rating of 400/460VAC.

**Q: What is the converter output power?**
A: The converter section outputs 45 kW.

**Q: What is the inverter output current?**
A: The inverter section outputs 49 A.

**Q: What are the dimensions and weight of this module?**
A: Dimensions are 7.7 x 11.9 x 16.7 in (196 x 302 x 426 mm), and weight is 22.0 lbs (9.98 kg).

**Q: What safety features does the 2094-BC07-M05-M include?**
A: It includes Safe Speed, Safe Maximum Speed, Safe Maximum Acceleration Monitoring, Safe Direction Monitoring, Zero Speed Monitoring, Enabling Switch Control, and Door Monitoring and Control.
