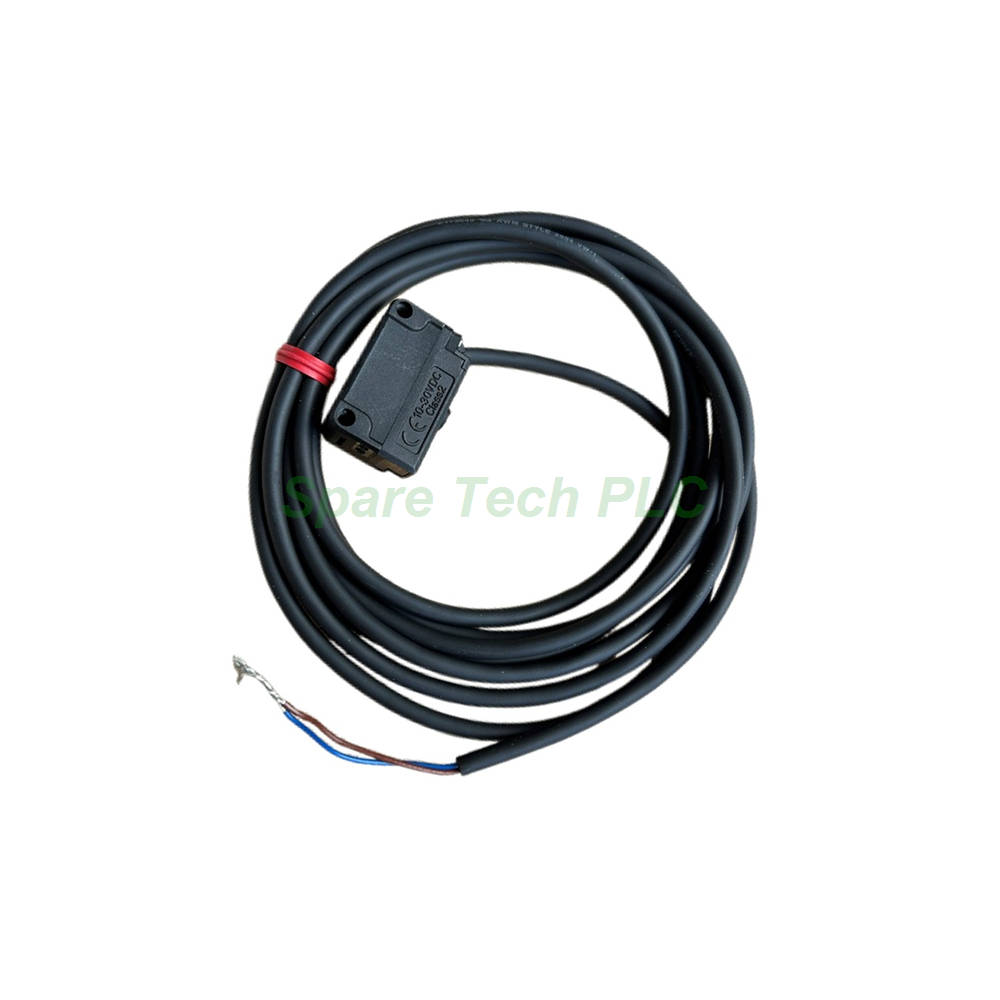

Keyence PZ-G42CP Diffuse Reflective Sensor
Product Introduction
The Keyence PZ-G42CP belongs to the PZ-G series of built-in amplifier photoelectric sensors. Specifically, this model uses a diffuse reflective sensing method with a short-range capability. It detects targets up to 300 mm away when using a 10 × 10 cm white paper standard. Furthermore, the compact rectangular shape allows flexible mounting in confined areas. The sensor includes a red LED light source and a 1-turn trimmer for sensitivity adjustment. Additionally, its PNP open collector output supports positive-common control systems. Therefore, this device fits many precision automation tasks.
Technical Specifications
First, the PZ-G42CP provides a maximum response time of 500 µs. This fast reaction suits high-speed detection lines. The operation mode switches between LIGHT-ON and DARK-ON. Meanwhile, an orange LED shows output status, and a green LED indicates stable operation. The sensitivity trimmer rotates 230 degrees for fine tuning.
Electrical Characteristics
Next, the supply voltage ranges from 10 to 30 VDC nominal. Ripple tolerance reaches 10% peak-to-peak. Current consumption stays at 34 mA or less. The control output handles 30 V and 100 mA maximum with residual voltage below 1 V. Besides, protection circuits include reversed polarity, overcurrent, and surge absorption. An M8 connector links the sensor to a separately sold cable. For interference suppression, the sensor supports up to two units via polarization filters or automatic frequency switching.
Mechanical and Environmental Parameters
Moreover, the housing uses glass-fiber reinforced PBT. The lens cover is polyarylate (PAR). The PZ-G42CP weighs approximately 10 g. Operating temperature spans -20 to +55 °C without freezing. Relative humidity stays between 35 and 85 % RH without condensation. The protection rating meets IEC IP67, NEMA 4A, 6, 12, and DIN IP69K. Ambient light resistance reaches 5,000 lux for incandescent lamps and 20,000 lux for sunlight. Vibration resistance covers 10 to 55 Hz with 1.5 mm double amplitude for 2 hours per axis. Shock resistance reaches 1,000 m/s² six times per axis.
Installation Guide
Proper mounting ensures reliable performance. First, use the mounting hole part with a maximum torque of 0.5 N·m. Next, connect the M8 connector cable carefully. Then, adjust the 1-turn trimmer to set sensitivity for your target. Meanwhile, avoid strong ambient light exceeding the rated lux values. Furthermore, keep the lens cover clean for accurate detection. Finally, verify the green stable operation LED before full operation.
Packaging List
FAQ
Q1: What is the maximum detection distance of the PZ-G42CP?
A: The sensor detects up to 300 mm using a 10 × 10 cm white paper target.
Q2: Does this model include a cable?
A: No, the M8 connector requires a separately sold cable.
Q3: Which output type does the PZ-G42CP support?
A: It provides a PNP open collector output.
Q4: Can I use two PZ-G42CP sensors close together?
A: Yes, interference suppression supports up to two units with filters or frequency switching.
