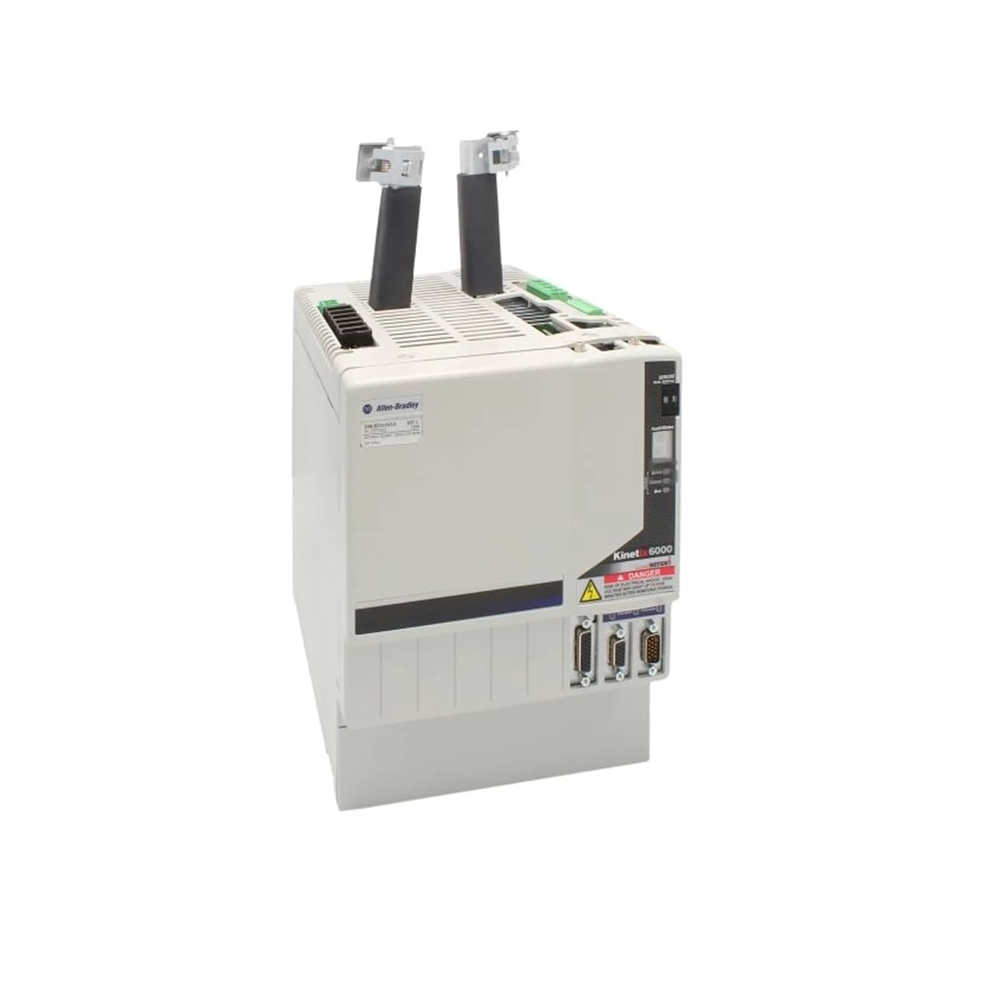

Allen-Bradley 2094-BC07-M05-M Integrated Axis Module

## Product Introduction

The Allen-Bradley 2094-BC07-M05-M is a Kinetix 6000 Integrated Axis Module. This converter module accepts an input voltage range of 324-528V rms 3-phase with an acceptable AC input voltage range of 360-480VAC. The module delivers a converter section output of 45kW and an inverter section output of 49 A. Its power dissipation ranges from 71 to 226 Watts. The module is manufactured by Rockwell Automation under the Allen-Bradley brand.

## Technical Specifications Analysis

This module operates within a temperature range of 32-122 F (0-50 C). It has a voltage rating of 400/460VAC and a nominal drive voltage of 360-480 Volts (3 Phase). The continuous output current to the bus is 67.7 A, and the output current is 45 Amperes. The module's wattage is 22 kWatts. The dimensions are 7.7 x 11.9 x 16.7 in (196 x 302 x 426 mm) and it weighs 22.0 lbs (9.98 kg). The maximum bus capacitance is 17,915 Microfarads. The module requires an installation clearance of 80 mm (3.10 in.) and a minimum enclosure depth of 302 mm (11.9 in.). The control input fuse is FNQ-R-10 (10 A) or FNQ-R-7.5 (7.5 A), and the control input breaker is 1492-SPM2D060 or 1492-SPM1D150. The DC bus power fuse is a Bussmann Fuse: FWJ-125A Mersen: Bussmann Fuse.

## Application Scenarios & Usage Methods

The 2094-BC07-M05-M is ideal for multi-axis motion control applications in packaging, printing, converting, and material handling industries. It integrates seamlessly into Kinetix 6000 systems, providing reliable power conversion for servo drives. Use it in high-speed automation lines where precise speed and torque control are critical. The module's modular design simplifies system expansion and reduces wiring complexity.

## Installation Guide & Packing List

Mount the module in a suitable enclosure with a minimum depth of 302 mm (11.9 in.) and maintain a bottom clearance of 80 mm (3.10 in.) for proper airflow. Use the specified control input fuse (FNQ-R-10 or FNQ-R-7.5) and control input breaker (1492-SPM2D060 or 1492-SPM1D150). The DC bus power fuse must be a Bussmann FWJ-125A or equivalent. The packing list includes the 2094-BC07-M05-M module only; mounting hardware and cables are sold separately.

## Purchasing Advice

When purchasing the 2094-BC07-M05-M, verify that your system's voltage matches the 360-480VAC input range. Confirm the converter and inverter ratings (45kW and 49A) meet your load requirements. Check the enclosure dimensions and clearance to ensure proper installation. Buy from authorized distributors like SpareTechPLC to guarantee genuine Rockwell Automation products.

## Repair & Maintenance Tips

Regularly inspect the module for dust accumulation and clean with compressed air. Monitor the operating temperature to stay within 32-122 F (0-50 C). Check the DC bus fuse and control fuses periodically. If the module shows fault indicators, use the enhanced diagnostic features to identify the issue. Always disconnect power before servicing.

## FAQs

**Q1: What is the input voltage range for the 2094-BC07-M05-M?**
A: The acceptable AC input voltage range is 360-480VAC, with an input voltage range of 324-528V rms 3-phase.

**Q2: What are the converter and inverter ratings?**
A: The converter section output is 45kW, and the inverter section output is 49 A.

**Q3: What is the power dissipation of this module?**
A: The power dissipation ranges from 71 to 226 Watts.

**Q4: What are the dimensions and weight?**
A: Dimensions are 7.7 x 11.9 x 16.7 in (196 x 302 x 426 mm) and weight is 22.0 lbs (9.98 kg).

**Q5: What fuses and breakers are required?**
A: Use control input fuse FNQ-R-10 (10 A) or FNQ-R-7.5 (7.5 A), control input breaker 1492-SPM2D060 or 1492-SPM1D150, and DC bus power fuse Bussmann FWJ-125A.
