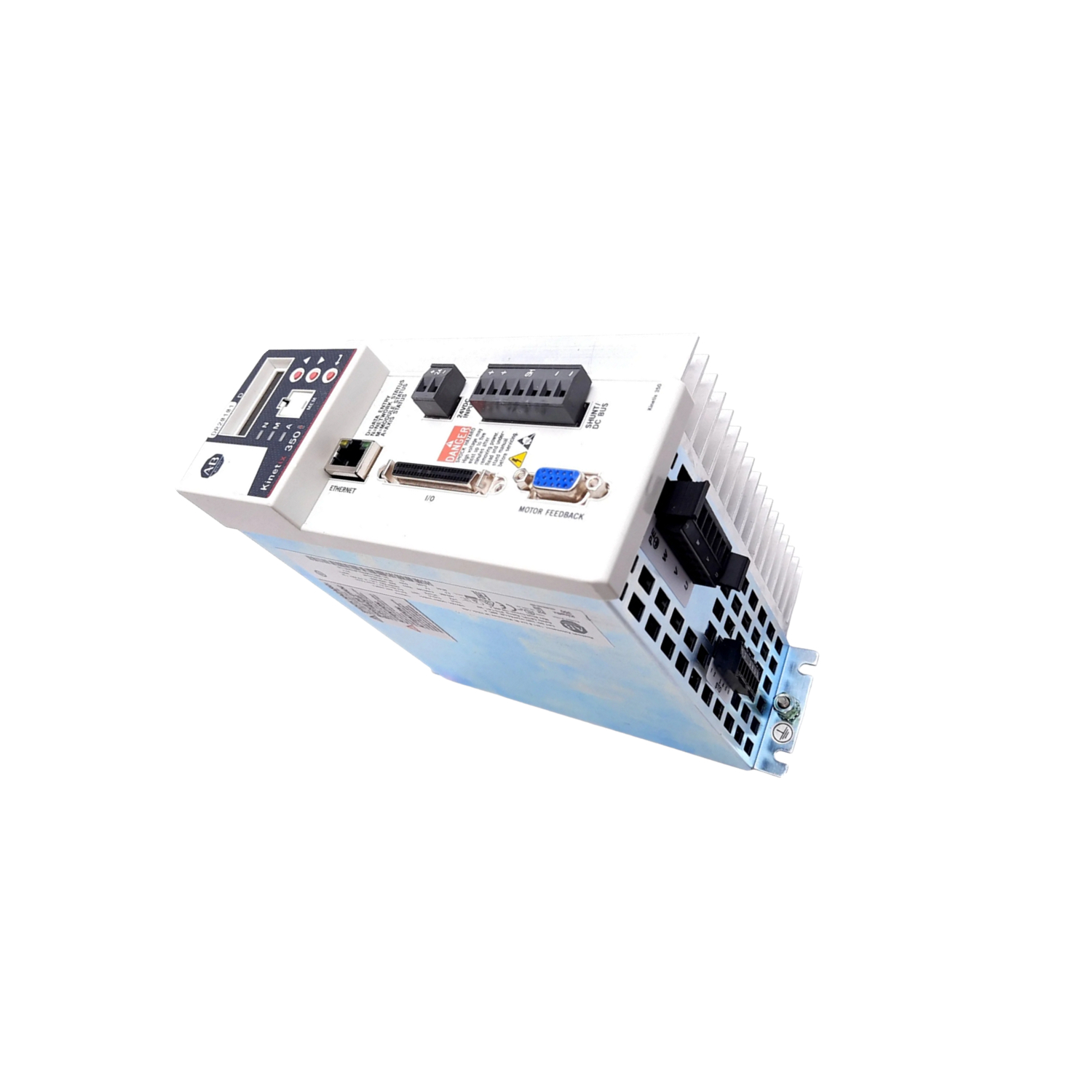

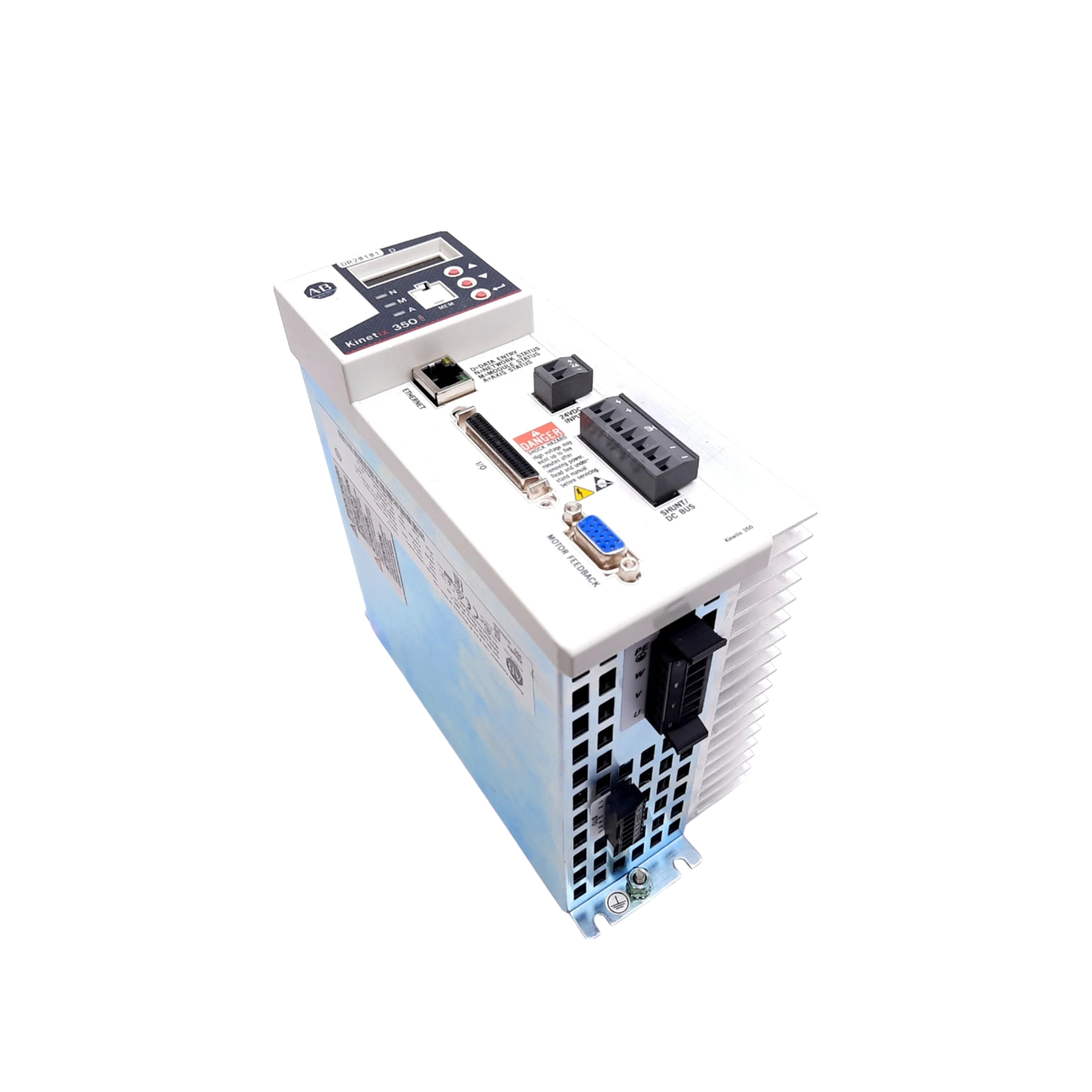

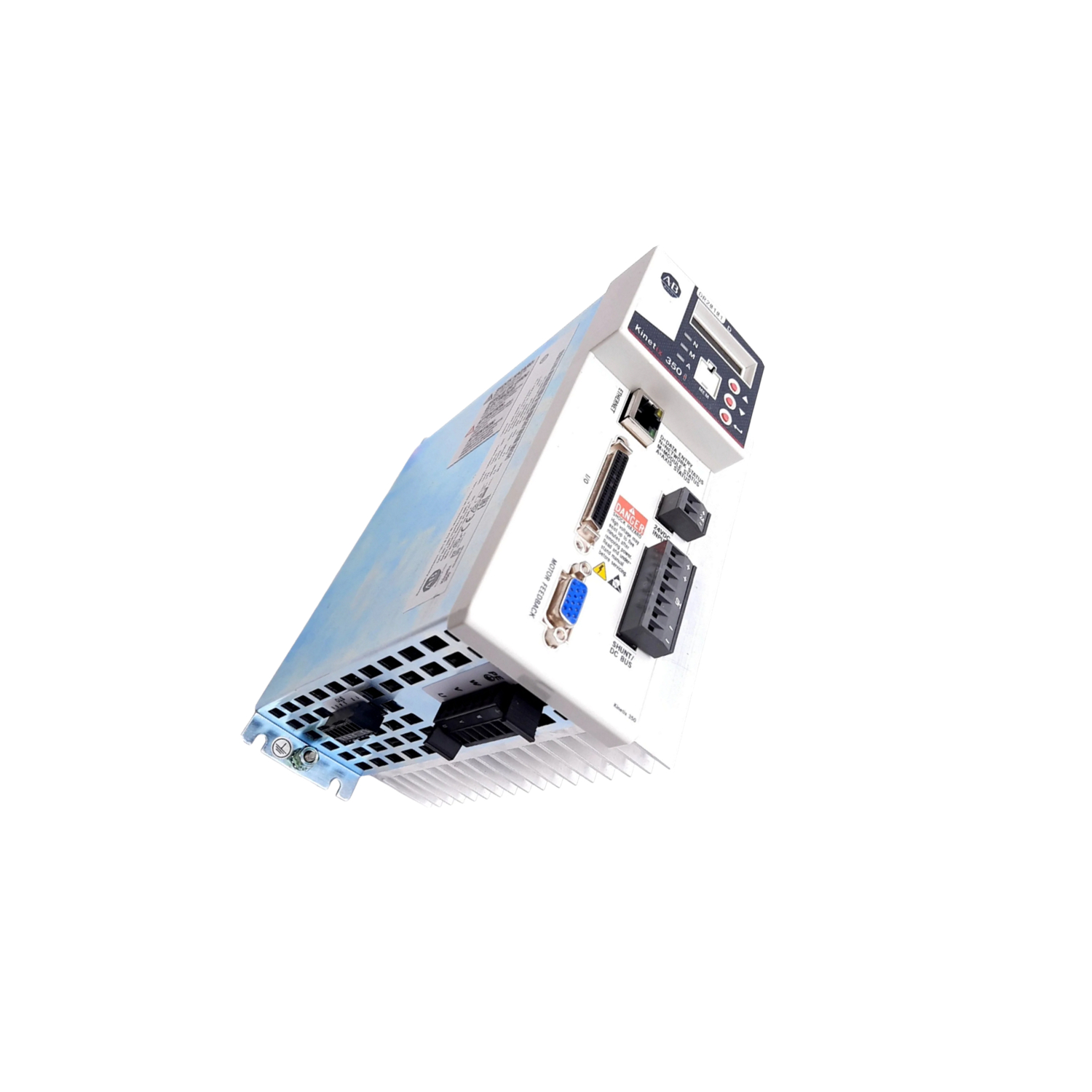

## Allen-Bradley 2097-V33PR5 Kinetix 300 EtherNet/IP Indexing Servo Drive

### Product Introduction

The Allen-Bradley 2097-V33PR5 is a Kinetix 300 Ethernet I/P Indexing servo drive from Rockwell Automation. This drive supports AC input voltages of 80-132VAC, 1-Phase, 80-264VAC, 1-Phase, and 80-264VAC, 3-Phase. It delivers a continuous output power of 2.00 kW and a continuous output current of 11.3 A (0-pk). The drive includes a Safe Torque-Off feature certified for ISO 13849-1 PLd/SIL2 levels, ensuring safety during maintenance.

### Technical Specifications Analysis

The 2097-V33PR5 operates with an input frequency of 48…62 Hz. Its main AC input current nominal (rms) for 120/240V single-phase is 15.0 A, with a max inrush of 1.15 A. For 240V three-phase, nominal current is 8.7 A with max inrush of 2.3 A. The control power back-up input voltage is 20…26V DC, drawing 500 mA nominal current. Continuous output current (rms) is 8.0 A, peak output current (rms) is 24.0 A, and peak output current (0-pk) reaches 33.9 A. Power dissipation is 67 Watts, and torque value is 4.5 lb*in (0.5 N*m). Operating temperature ranges from 32-104 F (0-40 C). Dimensions are 9.37 x 7.29 x 3.72 in (238 x 185 x 94.0 mm), and weight is 4.4 lbs (2.0 kg).

### Application Scenarios & Usage Methods

This servo drive is ideal for indexing, positioning, and motion control applications requiring precise speed and torque control. It supports 5 indexing types, S-Curve and trapezoidal moves, and 32 index capabilities. Use it with MP-Series and TL-Series motors and actuators for automated assembly, packaging, and material handling. The drive enables indexing, PTO, analog, and Ethernet/IP commanded control. Smart Motor Technology automatically classifies and establishes correct motor-to-drive connectivity, reducing commissioning time.

### Installation Guide & Packing List

Install the drive inside an enclosure with appropriate climate control. Consider the 67 Watts power dissipation when selecting heaters or coolers. Maintain minimum clearance of 3 mm (0.12 inches) on both sides and 25 mm (1 inch) bottom and rear for airflow. For UL applications with 1-Phase 120/240VAC, use Bussmann fuse KTK-R-30 (30 A) and circuit breaker 1489-A1C300. For 3-Phase, use KTK-R-20 (20 A) and 1489-A3C200. The packing list includes the drive unit only; cables and accessories are sold separately.

### Purchasing Advice

When purchasing the 2097-V33PR5, verify your input voltage matches one of the supported configurations: 80-132VAC single-phase, 80-264VAC single-phase, or 80-264VAC three-phase. Ensure your motor is compatible with MP-Series or TL-Series. Consider the 2.00 kW continuous power output and 8.0 A continuous output current (rms) for your application requirements. The Safe Torque-Off feature adds safety for maintenance tasks.

### Repair & Maintenance Tips

Regularly inspect the drive for dust accumulation and ensure proper ventilation. Check all connections for tightness and signs of wear. Monitor power dissipation (67 Watts) to prevent overheating. If the drive fails, consult Rockwell Automation documentation for troubleshooting. Always disconnect power before servicing. Use only authorized replacement parts to maintain safety and performance.

### FAQs

**Q: What input voltages does the 2097-V33PR5 support?**
A: It supports 80-132VAC single-phase, 80-264VAC single-phase, and 80-264VAC three-phase.

**Q: What is the continuous output current?**
A: The continuous output current is 8.0 A (rms) or 11.3 A (0-pk).

**Q: Does this drive include Safe Torque-Off?**
A: Yes, it features Safe Torque-Off certified for ISO 13849-1 PLd/SIL2 levels.

**Q: What motors are compatible?**
A: It works with MP-Series (e.g., MPL-A320H) and TL-Series (e.g., TLY-A2530P) motors and actuators.

**Q: What are the dimensions and weight?**
A: Dimensions are 9.37 x 7.29 x 3.72 in (238 x 185 x 94.0 mm), weight is 4.4 lbs (2.0 kg).
