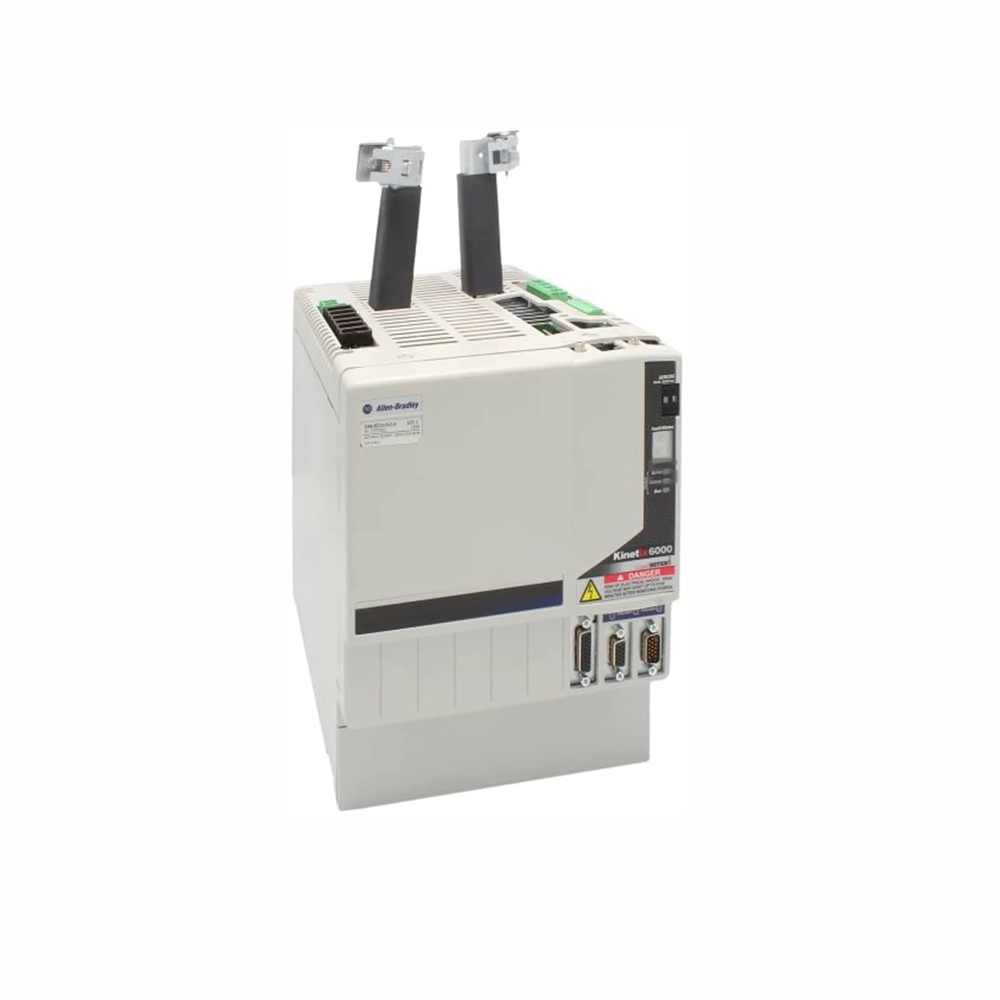

Allen-Bradley 2094-BC02-M02-M Integrated Axis Power Module

## Product Introduction

The Allen-Bradley 2094-BC02-M02-M is an Integrated Axis Power Module (IAM) from Rockwell Automation. This module operates with a voltage rating of 400/460VAC and delivers a converter section output of 15kW. It includes both an inverter and converter section, and requires one control module for operation. The 2094-BC02-M02-M is designed for demanding industrial automation environments where reliable power distribution is critical.

## Technical Specifications Analysis

The 2094-BC02-M02-M offers precise electrical ratings tailored for multi-axis servo systems. Key specifications include an output current of 15 A and an inverter section output of 72 Watts. Power dissipation ranges from 36-75 Watts, with heat dissipation of the converter section rated at 44 W at 20% and the inverter section at 72 W at 40%. The module has a maximum bus capacitance of 8955 Microfarads and a nominal drive voltage of 360-480 Volts (3 Phase). Its wattage is 6.6 kWatts. The operating temperature range is 32-122 F (0-50 C), ensuring stable performance in typical industrial environments.

## Application Scenarios & Usage Methods

This Integrated Axis Power Module is ideal for multi-axis motion control applications in manufacturing, packaging, material handling, and assembly lines. It integrates seamlessly with Allen-Bradley Kinetix drives and control systems to provide regulated power to multiple servo axes. Use the 2094-BC02-M02-M in applications requiring coordinated motion, such as robotic cells, CNC machines, and printing presses. It simplifies wiring and reduces cabinet space by combining converter and inverter functions in one unit.

## Installation Guide & Packing List

When installing the 2094-BC02-M02-M, ensure proper ventilation and maintain an installation clearance of 80 mm (3.10 in.) around the module. The minimum enclosure depth required is 302 mm (11.9 in.). Use the specified control input fuse: FNQ-R-10 (10 A) or FNQ-R-7.5 (7.5 A). The dimensions are 4.9 x 11.9 x 13.2 in (125 x 302 x 336 mm), and the weight is 13.0 lbs (5.90 kg). The packing list includes the module only; control modules are sold separately.

## Purchasing Advice

Before purchasing, verify that the 2094-BC02-M02-M matches your system voltage (400/460VAC) and power requirements (15kW converter output). Check that your control module is compatible and that your enclosure meets the minimum depth of 302 mm. This module is a genuine Rockwell Automation product, ensuring reliability and support. For high-availability applications, consider stocking a spare unit.

## Repair & Maintenance Tips

Regularly inspect the 2094-BC02-M02-M for dust accumulation on heat sinks and ensure airflow is unobstructed. Monitor the operating temperature to stay within 32-122 F (0-50 C). Check the control input fuse periodically and replace with the correct type (FNQ-R-10 or FNQ-R-7.5) if blown. If the module shows signs of overheating or erratic performance, contact Rockwell Automation authorized service centers for diagnostics and repair.
