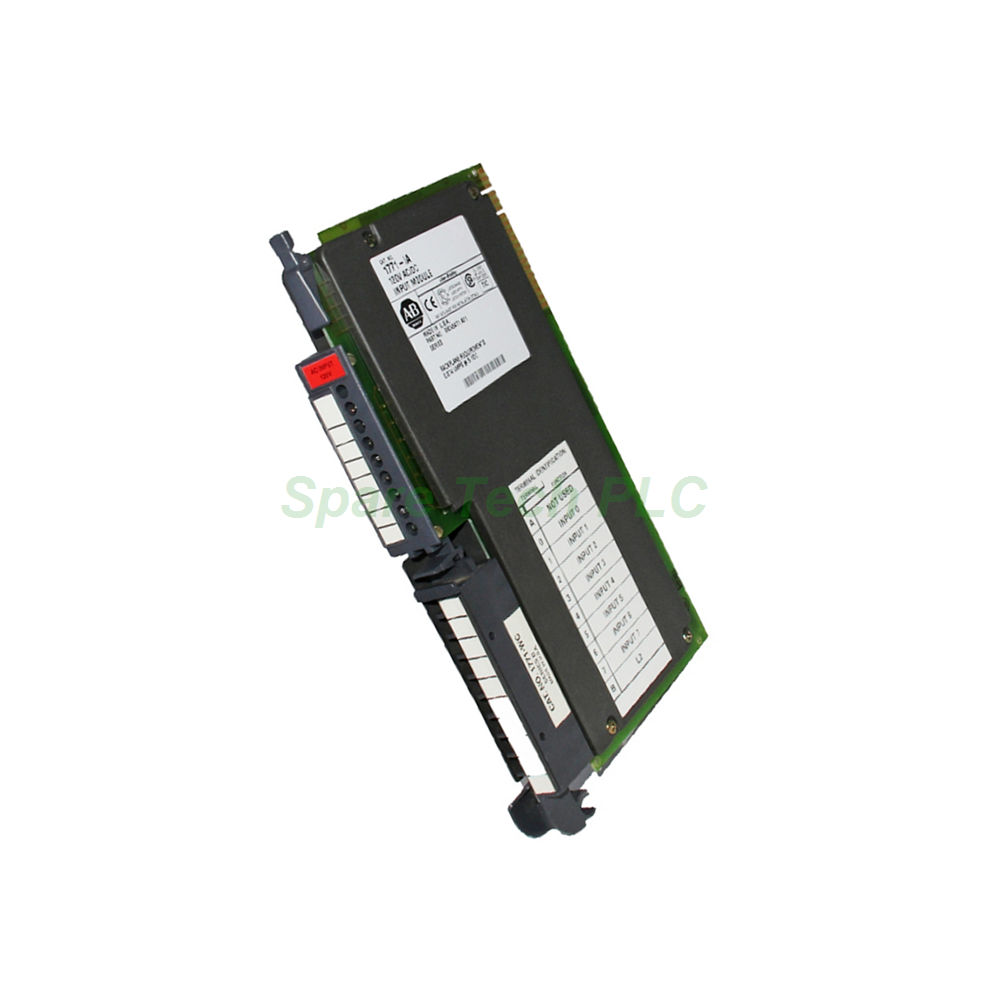

The Allen-Bradley 1771-IA module serves as a critical interface between field devices and your PLC-5 control system. It converts high-voltage AC or DC signals from pushbuttons, limit switches, and other sensors into logic-level signals that the processor can understand. Consequently, this module enables the controller to monitor and react to real-world conditions, improving overall system control.
Furthermore, this module is designed with user convenience in mind. It includes a pre-attached 1771-WA wiring arm, which simplifies field wiring and allows for quick module replacement without the need to re-terminate individual wires. Therefore, you can swap out a faulty unit with minimal downtime, a key advantage for maintaining productivity in industrial settings.
The Allen-Bradley 1771-IA is a robust and reliable input solution. It features eight input channels that are compatible with both AC and DC voltage sources, making it highly versatile. Specifically, the input voltage range for AC is from 87 to 138 Volts and for DC from 97 to 138 Volts. It maintains a nominal input current of 6.83mA at 120V AC/50Hz and 7.9mA at 120V AC/60Hz.
Moreover, this module has distinct signal delay characteristics depending on the input type. For AC signals, the typical turn-on delay is 24 milliseconds (±10 ms). For DC signals, the turn-on delay is faster, at 10 milliseconds (±4 ms), while the turn-off delay is 20 milliseconds (±9 ms). It draws a backplane current of 75 mA and has a maximum off-state current of 2.8 mA to prevent false triggering.
The physical design of this module ensures it fits seamlessly into your existing PLC-5 system. It measures approximately 3.5 x 6.5 x 2.0 inches (89 x 165 x 51 mm) and is designed to occupy a single slot in any 1771 series chassis, such as the 1771-A1B through 1771-A4B.
Additionally, the front panel features eight orange status indicators. These LEDs provide a quick visual confirmation of the ON/OFF state of each input channel, simplifying troubleshooting. The module also incorporates optoelectrical isolation, which protects the processor and backplane from harmful electrical transients and noise. This, together with internal input filtering, ensures reliable operation even in electrically noisy environments.
Installing the 1771-IA module is straightforward, but attention to detail is crucial. First, ensure the PLC-5 chassis power supply has sufficient capacity to handle the 75 mA backplane load. Next, insert the module into any available slot within the chassis, ensuring the backplane connectors align correctly.
Proper keying is essential to prevent incorrect module insertion. Specifically, you must place keying bands between pins 10 and 12 on the upper connector and between pins 4 and 6 on the lower connector. This physical keying mechanism helps secure the module and ensures it is correctly positioned, preventing potential damage to the module or the chassis backplane.
Your shipment for the Allen-Bradley 1771-IA module includes the following items:
(1) Allen-Bradley 1771-IA Digital AC/DC Input Module
(1) Pre-installed 1771-WA Field Wiring Arm
(1) Installation and User Instruction Sheet
All items are carefully packaged to prevent damage during transit. We ship exclusively via reputable carriers such as FedEx, UPS, and DHL to ensure fast and reliable delivery.
1. Is the Allen-Bradley 1771-IA compatible with 230V AC systems?
No, this specific model is designed for 120V AC or 125V DC systems. Its operating voltage range is limited to 87-138V AC and 97-138V DC. Using a higher voltage could permanently damage the module.
2. Can I use the 1771-IA module with a ControlLogix chassis?
No, the 1771-IA is a legacy PLC-5 module and is only physically and electrically compatible with 1771 series I/O chassis. It requires a PLC-5 processor to function correctly.
3. What is the purpose of the 1771-WA wiring arm?
The 1771-WA wiring arm is a removable terminal block for field wiring. It allows you to connect all your input device wires to the arm, which can then be quickly detached from the module. This design facilitates easy module replacement without disconnecting any wires.
4. How can I tell if a specific input channel is active?
The front panel of the 1771-IA is equipped with eight orange status LEDs, one for each input. When a valid signal is present on a channel, its corresponding LED will illuminate, providing a clear visual indication of the input status.
5. What are the keying bands for this module?
Keying bands are small plastic inserts that prevent you from installing a module in the wrong slot. For the 1771-IA, you must place these bands between pins 10 and 12 on the upper connector and pins 4 and 6 on the lower connector.
| Brand Name | |
| Model No. | 1771-IA |
| Product Type | Digital Input Module |
