Allen-Bradley 1771-IB PLC-5 DC Input Module 8 Channel 24V

Product Introduction

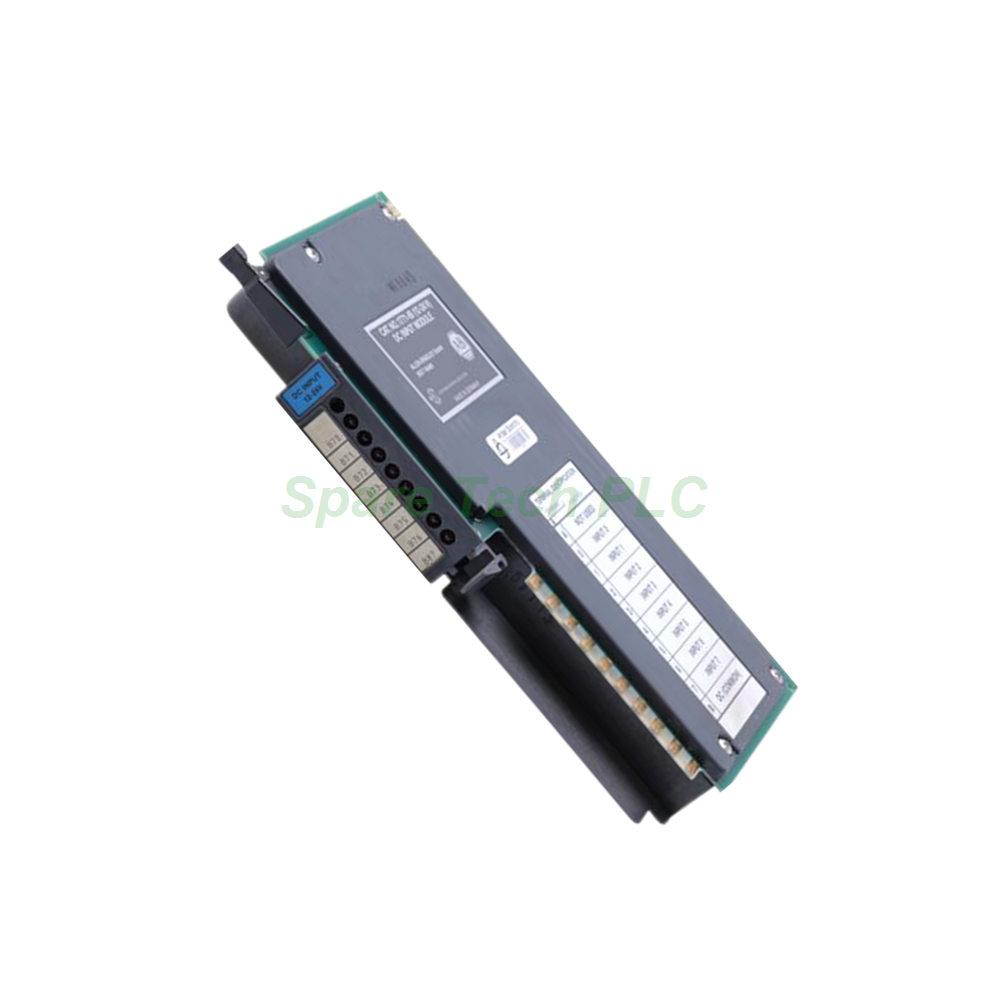

The Allen-Bradley 1771-IB module provides reliable DC input capability for your PLC-5 control system. This module features eight discrete input channels that accept DC voltages from 10 to 27 Volts. It interfaces directly with source-switching devices such as dry-contact switches, pushbuttons, and selector switches. The module then converts these DC signals into logic-level inputs that the processor can read and act upon.

Additionally, this module includes the 1771-WA field wiring arm. This removable terminal block lets you pre-wire all field connections before installing the module. You can quickly detach the arm during replacement without disturbing the existing wiring. Therefore, you reduce downtime significantly and simplify ongoing maintenance tasks.

Technical Specifications of the 1771-IB

The Allen-Bradley 1771-IB offers eight input channels with a voltage category of 10-60V DC sink (source load). The operating voltage range spans 10 to 27 Volts DC, accommodating typical low-voltage DC control circuits. Its nominal current ratings are 8 mA at 12V DC and 24 mA at 24V DC, making it suitable for various field devices.

Moreover, this module features well-defined signal delay characteristics. The typical DC ON delay is 12 ms (±7 ms), while the OFF delay is 20 ms (±7 ms). These timing specifications suit most general-purpose DC control applications. The module draws a backplane current of only 74 mA, which is quite modest. It has a maximum DC off-state current of 3.0 mA to prevent false triggering.

Power Dissipation and Thermal Characteristics

The 1771-IB module manages its power consumption efficiently for an 8-channel unit. Its maximum power dissipation reaches 5.7 Watts. Correspondingly, the thermal dissipation measures 19.3 BTU/hr at maximum load. These specifications help you calculate the overall heat load within your control cabinet accurately.

Mechanical and Installation Parameters

Physically, the 1771-IB measures 3.5 x 6.5 x 2.0 inches (89 x 165 x 51 mm). It occupies a single slot in any 1771 series I/O chassis. This module is a Series A unit and supports ½-slot, 1-slot, and 2-slot I/O addressing. This flexibility allows you to optimize slot usage based on your specific system requirements.

Furthermore, the front panel provides clear visual diagnostics. It features eight red status indicators, one for each input channel. Each LED illuminates when its corresponding channel receives a valid input signal. These LEDs provide immediate field-side indication and simplify troubleshooting significantly.

Installation and Keying Guidelines

Installing the 1771-IB requires proper keying for safety and correct operation. First, insert the module into any available slot within the compatible chassis. Ensure the backplane connectors mate securely. Next, verify that the system power supply can handle the 74 mA backplane load.

Proper keying is essential to prevent incorrect module insertion. For the 1771-IB, you must install keying bands between pins 14 and 16 on the upper connector. Additionally, you need to place them between pins 4 and 6 on the lower connector. This physical keying mechanism protects both the module and the chassis backplane from potential damage.

Packaging List

Your shipment for the Allen-Bradley 1771-IB module includes the following items:

• (1) Allen-Bradley 1771-IB Digital DC Input Module

• (1) Pre-installed 1771-WA Field Wiring Arm

• (1) Product Installation and Configuration Guide

All components come securely packaged to prevent transit damage. We ship all orders using trusted global carriers such as FedEx, UPS, and DHL.

Frequently Asked Questions (FAQ)

1. What types of field devices work with the 1771-IB module?
The 1771-IB works with source-switching devices such as dry-contact switches, pushbuttons, selector switches, and electro-mechanical transmitters. It does not work with AC devices or sinking-output sensors.

2. Can the 1771-IB accept 5V DC signals?
No, the 1771-IB requires a minimum operating voltage of 10 Volts DC. For 5V DC applications, consider other PLC-5 input modules with lower voltage ranges.

3. What is the difference between sink and source configurations?
The 1771-IB operates as a sink input (source load), meaning the field device supplies the voltage to the input. The common terminal connects to the DC return (negative). This configuration works with source-switching field devices.

4. What keying positions does the 1771-IB require?
For correct installation, place keying bands between pins 14 and 16 on the upper connector. Also place them between pins 4 and 6 on the lower connector of the chassis backplane.

5. Does the 1771-IB include input filtering for noise reduction?
Yes, the 1771-IB includes built-in input filtering to reduce electrical noise. This feature helps prevent false triggering in electrically noisy industrial environments.
