Allen-Bradley 1794-OV32 Flex I/O Output Module

1794-OV32 32-Point Digital Output Module by Allen-Bradley

Product Introduction

The Allen-Bradley 1794-OV32 is a high-density digital output module from the Flex I/O family. This module provides 32 sink-type outputs for controlling various field devices. It operates at 24V DC nominal voltage. Users can rely on this module for demanding industrial automation tasks. It controls solenoids, indicator lights, motor starters, and other actuators. The module integrates seamlessly into Flex I/O distributed control systems. Its compact design saves valuable panel space.

Key Technical Specifications

The 1794-OV32 offers 32 digital output points in a single module. Each output is a sink-type configuration. The nominal voltage rating is 24V DC, with an operating range of 10 to 31.2V DC. Each point supports a continuous current of 0.5A. The total module current is 8A. The response time is typically 1 ms for both ON and OFF delays.

This module provides 1500V AC optical isolation between the field side and the logic side. This isolation protects the control system from electrical transients. The 1794-OV32 also includes electronic protection features. These include short-circuit protection and thermal shutdown. The module consumes 150 mA from the 5V DC backplane.

Environmental Ratings and Certifications

The 1794-OV32 is designed for industrial environments. It is rated for Pollution Degree 2 environments. The overvoltage rating is Category II. The operating temperature range is 32 to 131°F (0 to 60°C). The storage temperature range is -40 to 185°F (-40 to 85°C). The module tolerates 5 to 95% non-condensing relative humidity. It can withstand 30 G of operating shock and 50 G of non-operating shock.

This module carries Group 1, Class A emissions classification per CISPR 11. It is UL Listed and CE marked. The 1794-OV32 ships as open equipment. Therefore, it requires installation inside an appropriate enclosure. The enclosure must protect against water, dust, debris, flames, and electrostatic discharge.

Indicators and Diagnostics

The 1794-OV32 features 32 yellow status indicators on its front panel. Each indicator corresponds to one output channel. These LEDs provide immediate visual feedback on the output status. They help operators quickly identify active outputs. This feature simplifies troubleshooting and system diagnostics. Users can monitor both the module and connected machines easily.

Installation Guidelines

Installing the Allen-Bradley 1794-OV32 is a straightforward process. The module mounts on a 1794 terminal base unit. It requires either the 1794-TB3 or 1794-TB3S terminal base. The module features an alignment bar that fits into a groove on the terminal base. Press firmly and evenly to seat the module until the latching mechanism locks.

For electrical safety, ground the module using a zinc-plated yellow chromate steel DIN rail. The wiring connections are clearly marked on the terminal base. Connect output wiring to the numbered terminals on rows A and B. Connect the associated power (+V1, +V2) and common (COM1, COM2) to terminals on row C. Use the removable terminal block (RTB) for easy wiring and maintenance.

Application Scenarios

The 1794-OV32 excels in various industrial applications. It controls conveyor systems, pneumatic actuators, and automated assembly equipment in manufacturing lines. In process control, it manages valve actuators, pump controls, and alarm indicators. Material handling systems benefit from its use in sortation and robotic operations. It also coordinates with PLCs for machine control and sequential logic operations. Building automation applications include HVAC dampers, lighting circuits, and access control systems.

Hot-Swap Capability

This module supports hot-swapping when used with compatible Flex I/O adapters. This feature allows you to replace the module without shutting down the entire system. It significantly reduces downtime during maintenance. However, exercise caution when inserting or removing the module with power on. An electric arc can occur in hazardous locations. Always ensure the area is non-hazardous before proceeding.

Packaging and Shipping

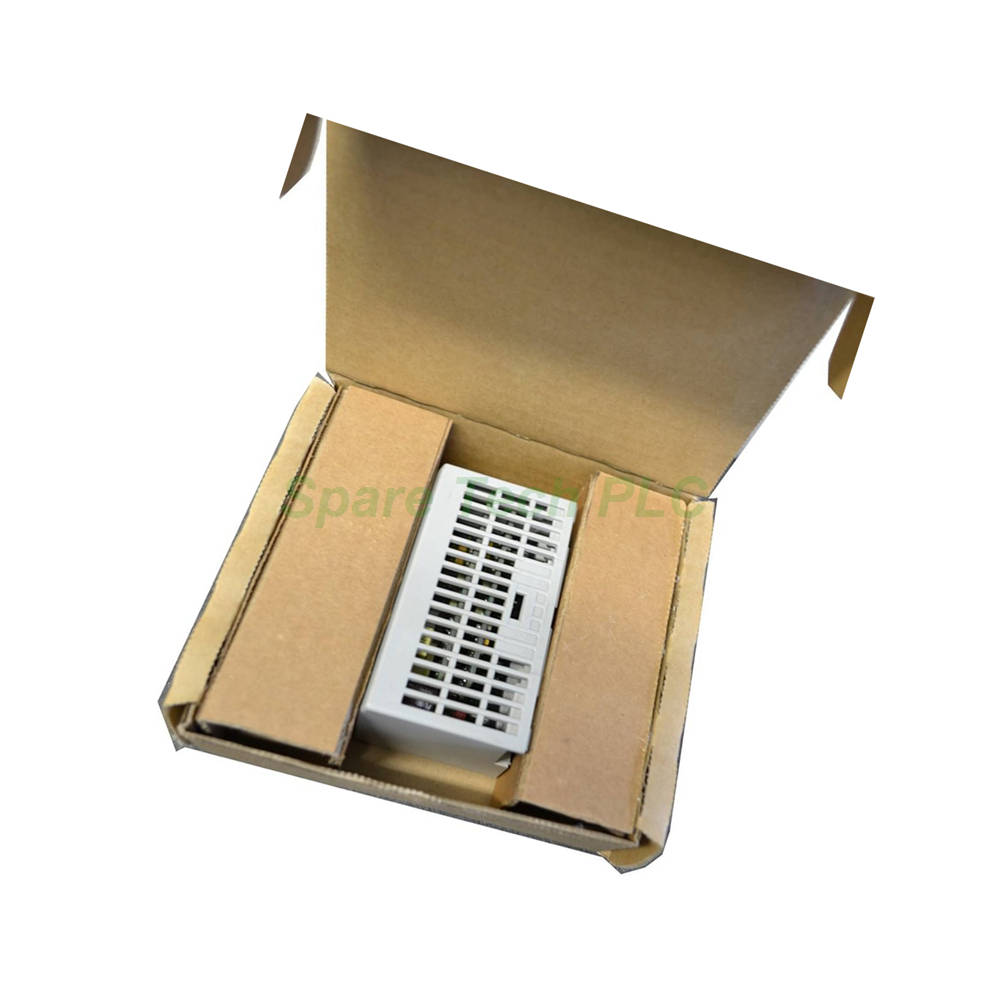

All modules undergo careful packaging before shipment. We use anti-static materials to prevent electrostatic damage. The packaging provides sufficient cushioning against physical impacts. The packaging list does not include certificates or warranties. Each shipment includes the module and installation instructions. We ship globally using trusted couriers such as FedEx, UPS, and DHL.

Packaging List

• Allen-Bradley 1794-OV32 Digital Output Module (1 unit)

• Installation Instructions (Printed Quick Guide)

Frequently Asked Questions (FAQ)

1. What type of outputs does the 1794-OV32 provide?
The 1794-OV32 provides 32 sink-type digital outputs. This means the output switches the load to the DC common (0V).

2. What terminal base is required for the 1794-OV32?
This module requires the 1794-TB3 or 1794-TB3S terminal base unit for proper mounting and field wiring connections.

3. Can the 1794-OV32 be hot-swapped during operation?
Yes, the 1794-OV32 supports hot-swap capability when used with compatible Flex I/O adapters. This allows replacement without shutting down the entire system.

4. What is the operating temperature range of this module?
The 1794-OV32 operates at full capacity in a temperature range of 32 to 131°F (0 to 60°C).

5. What do the yellow indicators on the front panel show?
The 32 yellow status indicators correspond to each output channel. They show the ON/OFF status of each output for easy monitoring and troubleshooting.
