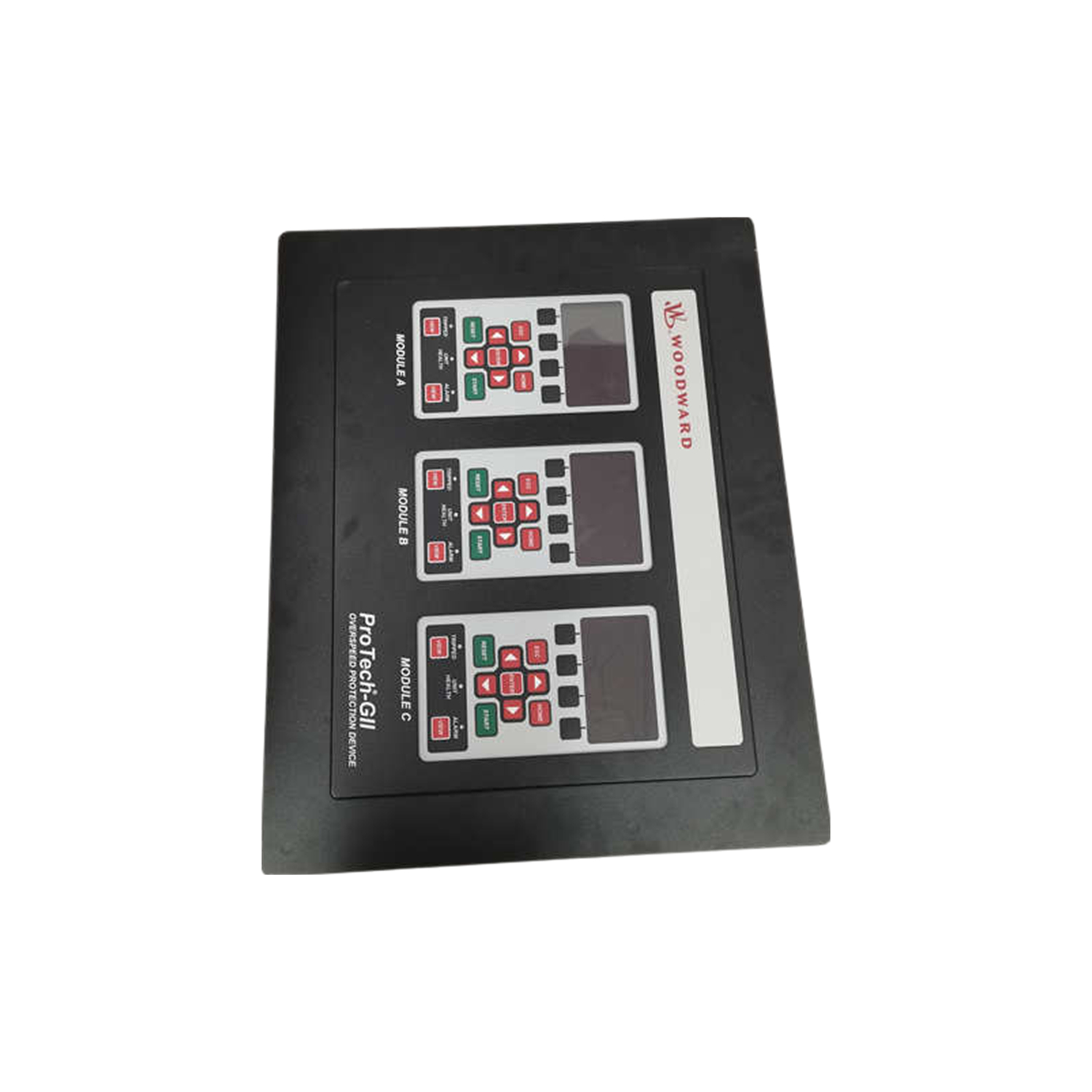

Woodward 8237-1600 Panel Mount Voted Relay Protection Module

Rosemount 499AOZ-54-VP Dissolved Ozone Sensor

The Rosemount 499AOZ-54-VP measures dissolved ozone in water treatment and food processing applications. Its range spans 0 to 3 ppm as O3. A VP6 quick disconnect fitting allows fast sensor changes without tools. This model works with Rosemount 1056, 1066-DO, 56, and 5081-A analyzers. Each sensor includes three membrane assemblies, three O-rings, and electrolyte solution.

Honeywell C7061A1020 UV Flame Detector

The Honeywell C7061A1020 ultraviolet flame detector features an oscillating shutter for dynamic self-checking. It senses UV radiation from gas or oil flames. This model operates on 120V or 230V at 50/60Hz. The shutter mechanism interrupts UV light reaching the sensor tube. Consequently, it verifies proper detector function continuously. A field-replaceable UV sensing tube and quartz window simplify maintenance.

Honeywell RA890G1245 Protectorelay Primary Control

The Honeywell RA890G1245 Protectorelay™ primary control manages flame supervision in commercial and industrial burners. It operates on 220V at 50/60Hz. A 15-second safety switch provides lockout timing. Flame response takes only 0.8 seconds. The SPDT alarm contacts enable external alert systems. This model works with C7027, C7035, or C7044 ultraviolet flame detectors.

Honeywell R7999A1005 ControLinks Fuel Air Controller

The Honeywell R7999A1005 ControLinks Fuel Air Controller manages ML7999 universal parallel positioning actuators. It supports 7-24 point profiles for precise fuel-air ratio tuning. A remote reset input allows external fault recovery. Its wide -40°F to 140°F ambient range ensures reliable operation in harsh boiler rooms. This model runs on 100-120VAC power.

Emerson CPC810-3065 MultiFlex 16 Input AO Board

The Emerson CPC810-3065 is a MultiFlex 168+AO I/O board featuring 16 combination analog/digital input points and 8 relay outputs. It communicates via RS485 with Einstein or REFLECS controllers. A built-in handheld terminal interface allows technicians to view input values directly without external tools. This board also supplies +5 VDC and +12 VDC for powering sensors.

Emerson 191736-01 Rotary Encoder 5VDC Flange Mount

The Emerson 191736-01 is a rotary encoder designed for valve position feedback. It operates on 5 VDC and features a flange mount design with a 10-pin connection. This unit works with SCS-2 and SDC50-2-7 systems. It provides end-of-travel signals through mechanical or inductive contacts in a rugged IP66 housing.

Mitsubishi GT2508-VTWD 8.4in HMI Touch Screen

The Mitsubishi GT2508-VTWD is an 8.4-inch TFT color LCD HMI within the GOT2000 series. It delivers VGA resolution (640 x 480 pixels) and supports 65,536 colors. This unit includes Ethernet, USB, and serial interfaces, plus an analog resistive touch panel for reliable factory-floor operation.

Mitsubishi GT27-ROUT-Z RGB Output Unit

The Mitsubishi GT27-ROUT-Z is a dedicated RGB output unit within the GOT2000 series. It works exclusively with GT27 models to send analog RGB signals to external screens. This compact module supports XGA, SVGA, and VGA resolutions, ensuring clear visuals for industrial monitoring.
