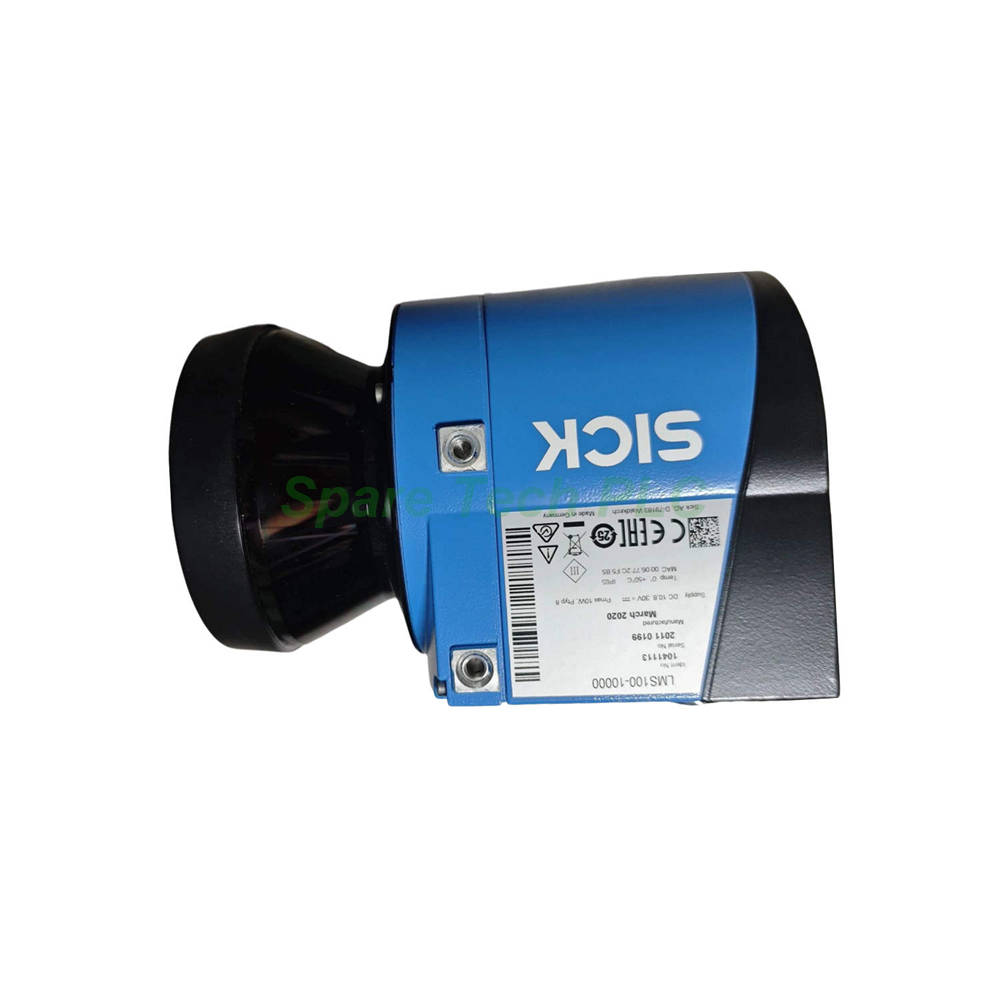

SICK LMS100-10000 Indoor 2D Laser Scanner

The SICK LMS100-10000 is a compact 2D laser scanner designed for indoor measurement tasks. It uses an infrared laser (905 nm) with Class 1 eye safety. Specifically, this device captures a 270° horizontal field of view. Furthermore, it performs reliably in industrial environments with an IP65 enclosure rating. Consequently, engineers deploy it for area monitoring, profile scanning, and collision avoidance.

Optical Performance and Scanning Specifications

The LMS100-10000 scans with a 25 Hz or 50 Hz frequency. Its working range spans 0.5 m to 20 m. Additionally, the scanner detects targets at 18 m with 10% remission and 20 m at 90% remission. The angular resolution is selectable at 0.25° or 0.5°. Moreover, the device evaluates two echoes per pulse. This feature improves detection reliability in dusty or foggy conditions. Fog correction is also available as a standard function.

Measurement Accuracy and Response Time

This scanner delivers a response time of ≥ 20 ms. Its systematic error is typically ± 30 mm. Meanwhile, the statistical error is 12 mm. These values depend on environmental conditions. For instance, bright sunlight up to 80,000 lx does not affect performance. Therefore, the LMS100-10000 suits demanding indoor applications.

Integrated Field Evaluation Logic

The LMS100-10000 includes powerful onboard field evaluation. Users can configure 10 field sets simultaneously. In addition, the device evaluates 10 cases at the same time. This capability reduces the load on external controllers. As a result, system architects simplify their automation designs.

Communication and Interface Options

Connectivity is a major strength of the LMS100-10000. It provides Ethernet TCP/IP for high-speed data output. Furthermore, a serial RS-232 interface supports data and service functions. The scanner also offers CAN for output extension. Meanwhile, 2 digital inputs and 2 encoder inputs enable synchronization. Three digital outputs provide switching signals for control tasks.

Electrical and Mechanical Characteristics

The LMS100-10000 operates on 10.8 V DC to 30 V DC. Its power consumption is 22 W. The housing uses a light blue finish (RAL 5012). Additionally, the dimensions are 105 mm x 102 mm x 152 mm. The device weighs 1.1 kg. Its protection class is III according to EN 61010-1.

Environmental Durability and Indicators

This scanner works in temperatures from 0 °C to +50 °C. Storage tolerance extends from –30 °C to +70 °C. The IP65 rating protects against dust and water jets. Moreover, a 7-segment display and 5 LEDs show device status. These indicators also warn about contamination and initial conditions.

Status Indicators and Diagnostics

The LMS100-10000 provides clear operational feedback. A 7-segment display shows numeric status codes. Five LEDs indicate power, contamination, and error states. Therefore, technicians diagnose issues quickly without external tools.

Installation Guide for the LMS100-10000

Mounting the LMS100-10000 requires a stable bracket. First, secure the scanner at the desired height and angle. Next, connect the system plug with screw terminal block. After that, wire the supply voltage and communication cables. Then, configure the scanning frequency and angular resolution. Finally, set up the field sets using the SOPAS engineering tool. Proper alignment ensures optimal coverage of the monitored area.

Packaging List

• 1 x SICK LMS100-10000 2D Laser Scanner

• 1 x System Plug with Screw Terminal Block

• 1 x Quick Start Guide

FAQ

What is the working range of the LMS100-10000?

The LMS100-10000 covers 0.5 m to 20 m. It detects 90% remission targets at 20 m and 10% remission targets at 18 m. Therefore, actual range depends on the object's reflectivity and environmental conditions.

Does the LMS100-10000 support Ethernet communication?

Yes, the LMS100-10000 provides Ethernet TCP/IP at 10/100 MBit/s. This interface outputs measurement results. Additionally, RS-232 and CAN interfaces are available for service and output extension.

What is the laser class of this scanner?

The LMS100-10000 uses an infrared laser at 905 nm. It is classified as Laser Class 1 per IEC 60825-1:2014. This means the device is eye-safe during normal operation.

Can the LMS100-10000 operate outdoors?

No, the LMS100-10000 is designed for indoor use. Its ambient operating temperature is 0 °C to +50 °C. For outdoor applications, SICK offers alternative scanner models with heating and extended temperature ranges.

What shipping methods are available for this scanner?

We ship the LMS100-10000 via Fedex, UPS, and DHL. These carriers provide fast and reliable global delivery. In addition, all shipments include tracking information for your convenience.
