SICK LMC123-11000 VdS 2D LiDAR Security Sensor

SICK LMC123-11000 VdS Indoor Security 2D LiDAR Sensor

The SICK LMC123-11000 VdS is a 2D LiDAR sensor from the LMC1xx family. It targets security applications and 2D position determination indoors. Specifically, the device carries VdS approval for demanding protection tasks. Furthermore, it monitors buildings, grounds, and valuable assets. Consequently, system integrators deploy it where certified reliability is mandatory.

Optical Performance and Scanning Specifications

The LMC123-11000 VdS uses an infrared laser at 905 nm. This source meets Laser Class 1 requirements per IEC 60825-1:2014. The scanner captures a 270° horizontal aperture angle. Its scanning frequency is 50 Hz. Meanwhile, the angular resolution is selectable at 0.25° or 0.5°. The working range spans 0.5 m to 20 m. Additionally, detection reaches 18 m at 10% remission. The device evaluates 2 echoes per measurement for stable results.

Measurement Accuracy and Response Behavior

The LMC123-11000 VdS provides fast measurement output. Its response time is ≥ 20 ms. The systematic error is typically ± 30 mm. Meanwhile, the statistical error is 12 mm. These values depend on environmental conditions. For instance, ambient light immunity reaches 40,000 lx. Therefore, the scanner performs reliably in brightly lit indoor areas.

VdS Approval and Security Functions

VdS approval distinguishes the LMC123-11000 VdS from standard scanners. This certification confirms compliance with strict security standards. In addition, the device supports security-conform parameterization. It also offers Easy Teach lite and pro functions. As a result, commissioning becomes fast and repeatable. Furthermore, field evaluation logic is built in. Users can configure 10 field sets and evaluate 10 cases simultaneously.

Communication and Interface Options

Connectivity is comprehensive on the LMC123-11000 VdS. It provides Ethernet TCP/IP at 10/100 MBit/s for result output. Furthermore, a serial RS-232 interface serves as a service channel. The scanner also includes CAN for output extension. Meanwhile, 4 digital inputs and 3 digital outputs support control tasks.

Electrical and Mechanical Characteristics

The LMC123-11000 VdS operates on 9 V DC to 30 V DC. Its power consumption is typically 8 W, with a maximum of 20 W. The housing uses a signal white finish (RAL 9003). The IP65 rating protects against dust and water jets. Moreover, the device weighs 1.1 kg without cables. Its shipping weight is 2 kg. The protection class is III according to EN 50178.

Environmental Durability and Indicators

This scanner works in temperatures from 0 °C to +50 °C. Storage tolerance extends from –30 °C to +70 °C. Additionally, a 7-segment display and 5 LEDs show device status. These indicators also warn about contamination and initial conditions.

Installation Guide for the LMC123-11000 VdS

Mounting the LMC123-11000 VdS requires a rigid bracket. First, secure the scanner at the correct height and tilt angle. Next, connect the system plug with screw terminal block. After that, wire the supply voltage and communication lines. Then, define the field sets using the SOPAS engineering tool. Finally, verify coverage and response behavior. Proper alignment ensures complete protection of the monitored zone.

Packaging List

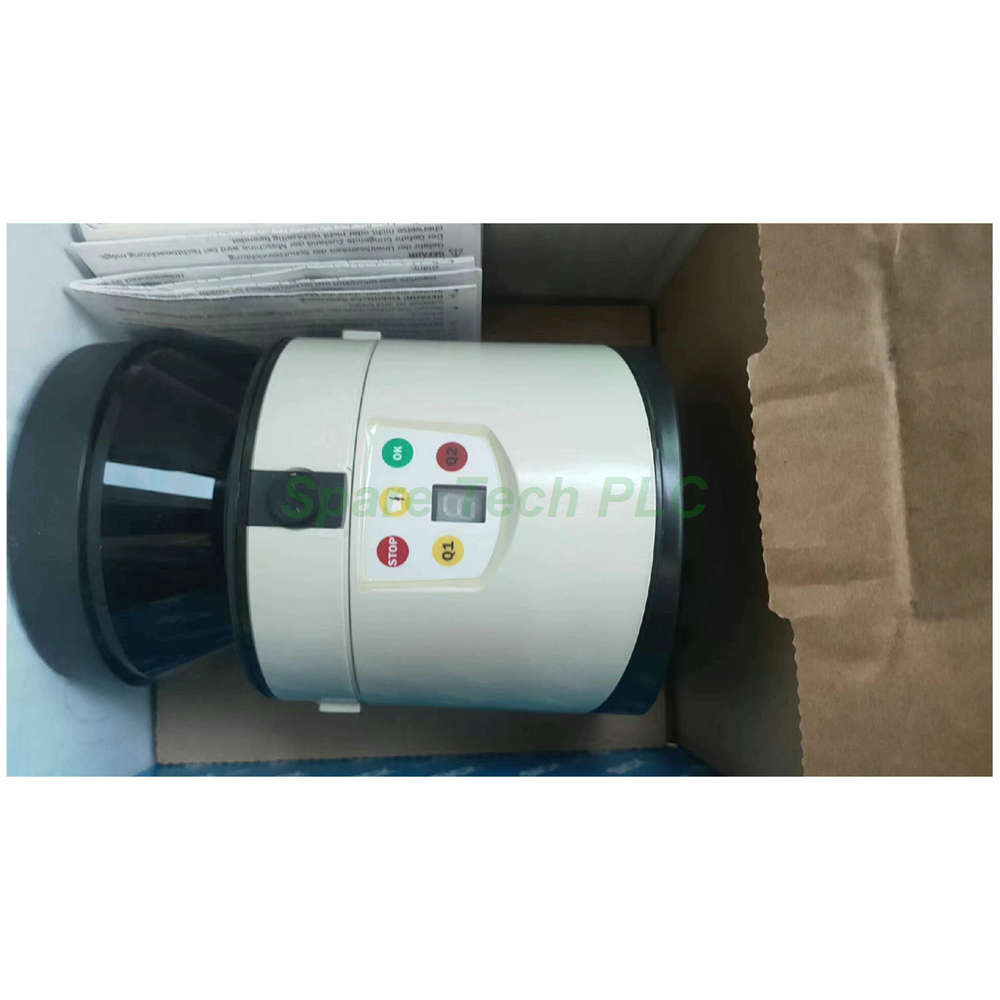

• 1 x SICK LMC123-11000 VdS 2D LiDAR Security Sensor

• 1 x System Plug with Screw Terminal Block

• 1 x Quick Start Guide

FAQ

What is the working range of the LMC123-11000 VdS?

The LMC123-11000 VdS covers 0.5 m to 20 m. It detects 10% remission targets at 18 m. Therefore, actual range depends on object reflectivity and environmental conditions.

What does VdS approval mean for this scanner?

VdS approval confirms that the LMC123-11000 VdS meets strict German security standards. Consequently, it suits certified building, grounds, and asset protection systems.

Does the LMC123-11000 VdS support Ethernet communication?

Yes, the LMC123-11000 VdS provides Ethernet TCP/IP at 10/100 MBit/s. This interface outputs measurement results. Additionally, RS-232 and CAN interfaces are available for service and output extension.

Can the LMC123-11000 VdS operate outdoors?

No, the LMC123-11000 VdS is designed for indoor use. Its ambient operating temperature is 0 °C to +50 °C. For outdoor applications, SICK offers alternative scanner models with heating and extended temperature ranges.

What shipping methods are available for this scanner?

We ship the LMC123-11000 VdS via Fedex, UPS, and DHL. These carriers provide fast and reliable global delivery. In addition, all shipments include tracking information for your convenience.
