SICK LMS123-10000 2D LiDAR Security Scanner

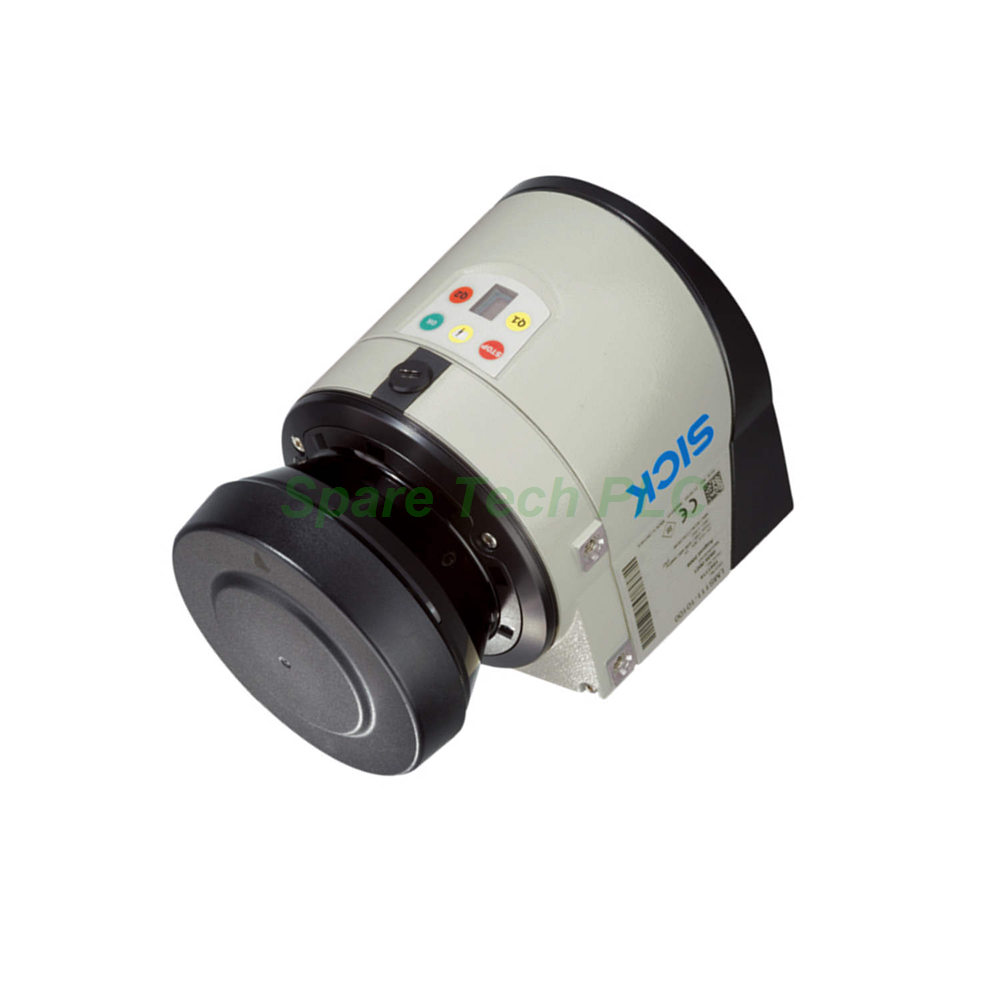

SICK LMS123-10000 Indoor Security 2D LiDAR Sensor

The SICK LMS123-10000 is a 2D LiDAR sensor from the LMS1xx family. It targets security and object protection tasks in indoor environments. Specifically, the device monitors buildings, grounds, valuable items, vehicles, and infrastructure. Furthermore, it supports localization and 2D position determination. Consequently, system integrators rely on it for reliable area surveillance.

Optical Performance and Scanning Specifications

The LMS123-10000 uses an infrared laser at 905 nm. This source meets Laser Class 1 requirements per IEC 60825-1:2014. The scanner captures a 270° horizontal aperture angle. Its scanning frequency is selectable at 25 Hz or 50 Hz. Meanwhile, the angular resolution is configurable at 0.25° or 0.5°. The working range spans 0.5 m to 20 m. Additionally, detection reaches 18 m at 10% remission and 20 m at 90% remission. The device evaluates 2 echoes per measurement and includes fog correction.

Measurement Accuracy and Response Time

The LMS123-10000 delivers a response time of ≥ 20 ms. Its systematic error is ± 30 mm. Meanwhile, the statistical error is 12 mm. These typical values depend on environmental conditions. For instance, ambient light immunity reaches 40,000 lx. Therefore, the scanner performs well in brightly lit indoor areas.

Integrated Field Evaluation and Security Functions

Field evaluation logic is built into the LMS123-10000. Users can configure 10 field sets and evaluate 10 cases simultaneously. In addition, the device supports security-conform parameterization. It also offers Easy Teach lite and pro functions. As a result, commissioning and configuration become fast and repeatable.

Communication and Interface Options

Connectivity is comprehensive on the LMS123-10000. It provides Ethernet TCP/IP at 10/100 MBit/s for result output. Furthermore, a serial RS-232 interface serves as a service channel. The scanner also includes CAN for output extension. Meanwhile, 4 digital inputs and 3 digital outputs (2 relay, 1 digital) support control tasks.

Electrical and Mechanical Characteristics

The LMS123-10000 operates on 9 V DC to 30 V DC. Its power consumption is typically 8 W. The housing uses a signal white finish (RAL 9003). Additionally, the dimensions are 105 mm x 102 mm x 152 mm. The device weighs 1.1 kg. Its protection class is III according to EN 50178.

Environmental Durability and Indicators

This scanner works in temperatures from 0 °C to +50 °C. Storage tolerance extends from –30 °C to +70 °C. The IP65 rating protects against dust and water jets. Moreover, a 7-segment display and 5 LEDs show device status. These indicators also warn about contamination and initial conditions.

Installation Guide for the LMS123-10000

Mounting the LMS123-10000 requires a rigid bracket. First, secure the scanner at the correct height and tilt angle. Next, connect the system plug with screw terminal block. After that, wire the supply voltage and communication lines. Then, define the field sets using the SOPAS engineering tool. Finally, verify coverage and response behavior. Proper alignment ensures complete protection of the monitored zone.

Packaging List

• 1 x SICK LMS123-10000 2D LiDAR Security Scanner

• 1 x System Plug with Screw Terminal Block

• 1 x Quick Start Guide

FAQ

What is the working range of the LMS123-10000?

The LMS123-10000 covers 0.5 m to 20 m. It detects 90% remission targets at 20 m and 10% remission targets at 18 m. Therefore, actual range depends on object reflectivity and environmental conditions.

Does the LMS123-10000 support Ethernet communication?

Yes, the LMS123-10000 provides Ethernet TCP/IP at 10/100 MBit/s. This interface outputs measurement results. Additionally, RS-232 and CAN interfaces are available for service and output extension.

What security functions does this scanner offer?

The LMS123-10000 includes security-conform parameterization and Easy Teach lite and pro. It also supports 10 field sets and 10 simultaneous evaluation cases. Consequently, it suits building, grounds, and infrastructure protection.

Can the LMS123-10000 operate outdoors?

No, the LMS123-10000 is designed for indoor use. Its ambient operating temperature is 0 °C to +50 °C. For outdoor applications, SICK offers alternative scanner models with heating and extended temperature ranges.

What shipping methods are available for this scanner?

We ship the LMS123-10000 via Fedex, UPS, and DHL. These carriers provide fast and reliable global delivery. In addition, all shipments include tracking information for your convenience.
