The SICK DT50-2B215552 belongs to the Dx50-2 Next Generation series. It represents a significant leap in optical distance measurement technology. Specifically, this sensor combines a compact design with an exceptionally wide measuring range. For instance, it accurately detects white targets up to 30,000 mm away. Furthermore, the DT50-2B215552 leverages patented HDDM™ (High Definition Distance Measurement) technology. This ensures reliable performance on natural objects, regardless of surface color. Consequently, it solves applications that were previously impractical for mid-range sensors.
The DT50-2B215552 delivers outstanding optical performance. Its measuring range is 200 mm to 30,000 mm on 90% remission targets. Additionally, it achieves 200 mm to 15,000 mm on 18% gray and 200 mm to 7,000 mm on 6% black targets. The sensor features a visible red laser (658 nm) that is eye-safe (Class 1). Meanwhile, the typical light spot size remains precise at 10 mm x 10 mm at a 10-meter distance.
Users can configure the DT50-2B215552 for optimal performance. Response time is adjustable from 0.83 ms to 75 ms. Similarly, repeatability ranges from ≥ 0.5 mm to 5 mm. Therefore, you can fine-tune the sensor for high-speed throughput or high-precision stability. Its measurement accuracy is typically ± 7 mm across the operating range.
The DT50-2B215552 offers a dual interface for maximum flexibility. It features a digital output (Q1) that is configurable as PNP/NPN push-pull. In addition, an analog output (QA) provides either 4–20 mA or 0–10 V signals with 16-bit resolution. Moreover, the sensor supports IO-Link V1.1 for seamless parameterization and diagnostics. This allows for full process control from commissioning to maintenance.
This sensor operates on a DC 10 V to 30 V supply. Power consumption is low at ≤ 2.1 W. The electrical connection uses a standard M12 5-pin male connector. This ensures quick and secure wiring in industrial environments.
The DT50-2B215552 is built for harsh conditions. Its zinc die-cast housing provides exceptional durability. Furthermore, the acrylic glass (PMMA) window protects the optical components. The sensor carries dual enclosure ratings of IP65 and IP67. Meanwhile, it operates reliably from -40 °C to +65 °C without an internal heater. This wide temperature range eliminates the need for additional thermal management.
Despite its long range, the DT50-2B215552 maintains a very compact footprint. The housing measures 36.2 mm x 67.3 mm x 58 mm. Furthermore, the device weighs approximately 235 g. This small size allows easy integration into space-constrained machinery.
Installing the DT50-2B215552 is straightforward. First, mount the sensor using the appropriate bracket. Next, connect the M12 5-pin connector to the power and communication lines. After that, power on the device and verify the supply voltage. Finally, use the integrated display and Easy-Teach function for quick commissioning. The DT50-2B215552 also supports parameterization via IO-Link, which simplifies setup and reduces downtime.

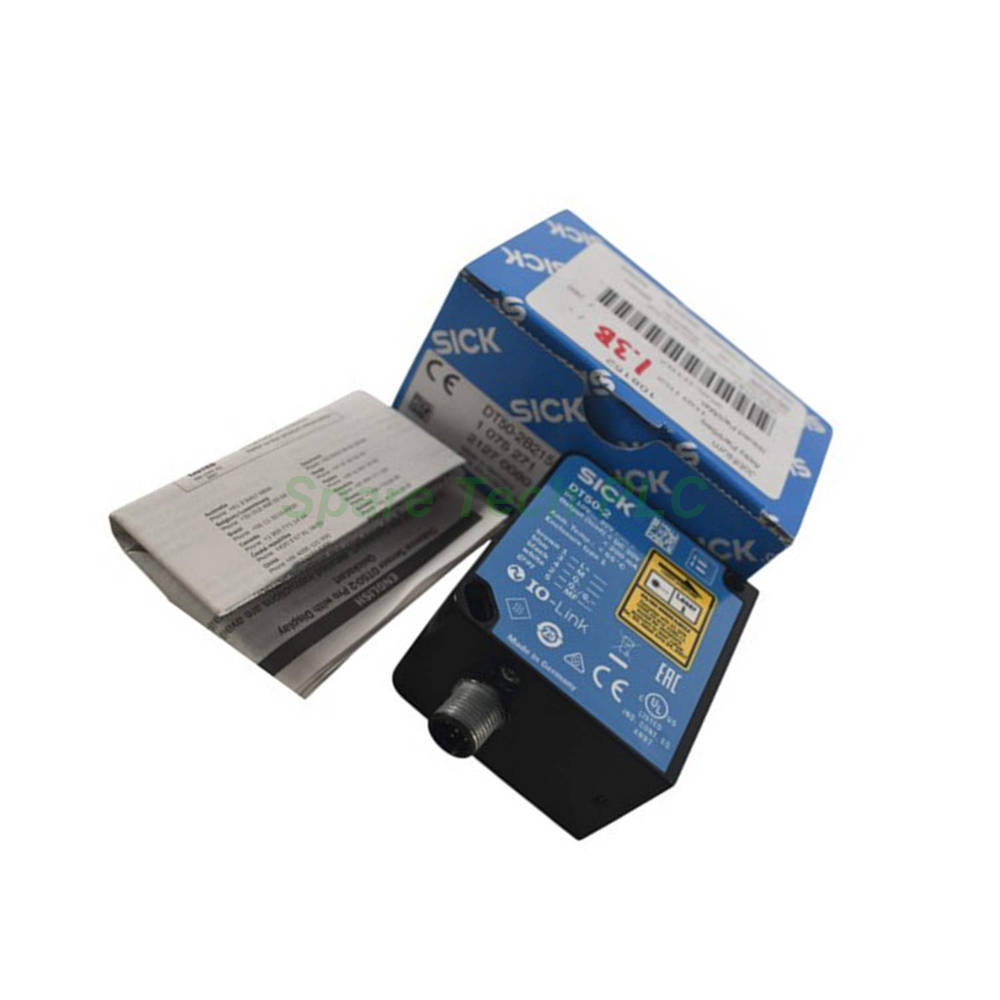

1 x SICK DT50-2B215552 Laser Distance Sensor
1 x Mounting Hardware Set
1 x Quick Start Guide
The DT50-2B215552 measures up to 30,000 mm (30 m) on targets with 90% remission. For black objects (6% remission), the maximum range is 7,000 mm. Consequently, the achievable distance depends heavily on the target's surface reflectivity.
Yes, the DT50-2B215552 fully supports IO-Link V1.1. This enables process data exchange, parameterization, diagnosis, and data storage. Therefore, it integrates seamlessly into modern smart factory environments.
The sensor uses a visible red laser diode with a wavelength of 658 nm. Importantly, it is classified as Laser Class 1 according to IEC 60825-1:2014. This means the laser is eye-safe under normal operating conditions.
The DT50-2B215552 operates from -40 °C to +65 °C without requiring an internal heater. This wide range ensures reliable function in cold storage or outdoor applications. However, for temperatures above +65 °C, optional cooling plates or heat shields are available.
We ship the DT50-2B215552 via Fedex, UPS, and DHL. These carriers provide fast and reliable global delivery. In addition, all shipments include tracking information for your convenience.
| Brand Name | |
| Model No. | DT50-2B215552 |
| Product Type | Time-of-Flight Laser Distance Sensor |
| hasMerchantReturnPolicy | Adjust according to reality |
| Shippingdetails | Adjust according to reality |
