SEW DBG60B-01 Keypad | MOVITRAC 07B Operator Terminal

SEW DBG60B-01 Operator Keypad | MOVITRAC 07B Terminal

Product Introduction

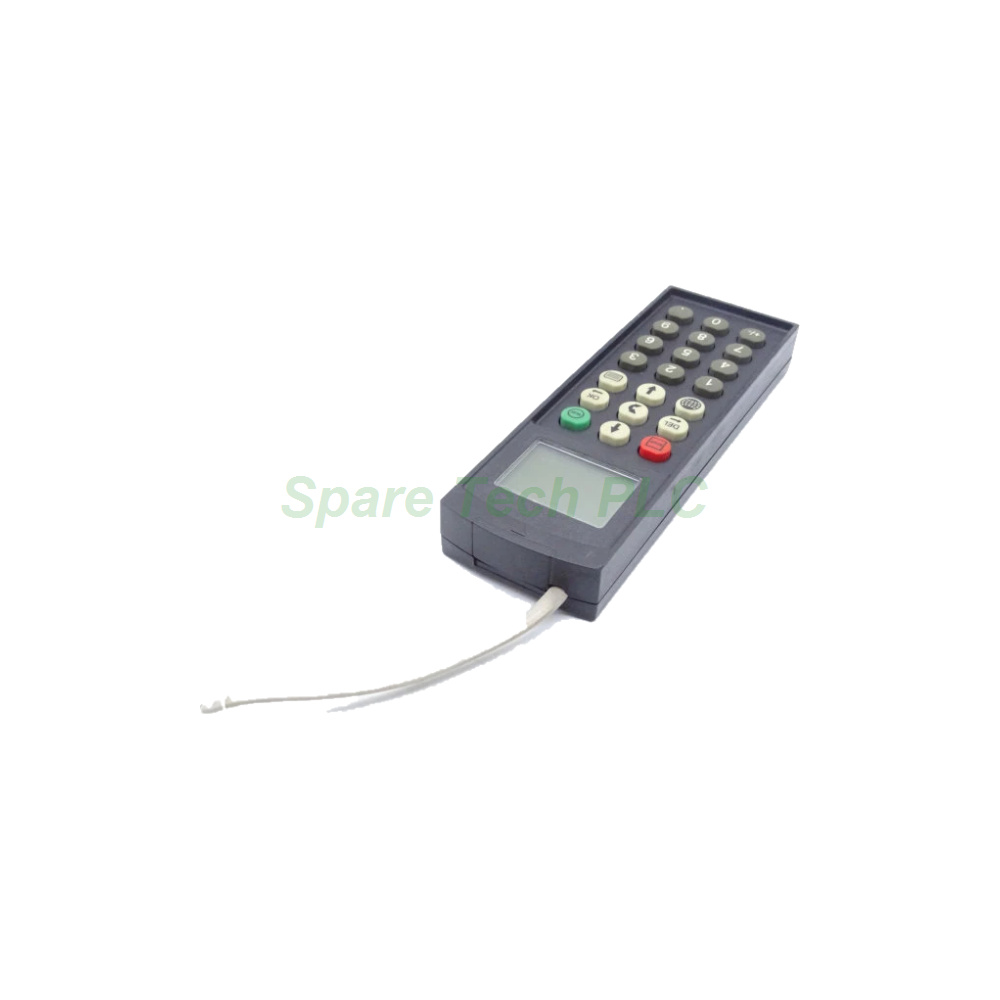

The SEW DBG60B-01 is an advanced operator terminal designed for commissioning and monitoring SEW drive systems. Specifically, it works with the MOVITRAC® 07B inverter, MOVIMOT® gearmotors, and MOVIFIT® decentralized drives. The keypad replaces the basic control interface with a full plain-text display and expanded button set. Furthermore, its illuminated multi-line LCD simplifies parameter navigation and fault diagnosis. Typical users include commissioning engineers, maintenance technicians, and system integrators working on SEW automation networks.

Key Features and Compatibility

The DBG60B-01 keypad offers a range of features that streamline drive configuration. It provides an illuminated plain-text display with a choice of 7 languages, including English, German, French, and Spanish. Additionally, the terminal includes 21 keys for direct parameter access and menu navigation.

Compatibility covers several SEW product families. Specifically, it supports MOVIMOT® and MOVIFIT® units, plus fieldbus interfaces MF-MQ. For MOVITRAC® 07B control, the drive requires firmware version 13 or higher. Notably, the basic version of the MOVITRAC® 07B does not include this keypad, so it serves as an optional upgrade. An extension cable, model DKG60B, extends connection distance up to 5 meters (20 feet).

Technical Specifications

The terminal uses a multi-line LCD display for clear parameter readout. Power comes directly from the inverter interface, so no separate supply is needed. The keypad operates from 0°C to +50°C ambient temperature, matching typical cabinet conditions. Its enclosure rating is IP40 according to EN 60529, protecting against solid objects above 1mm.

Physical dimensions measure approximately 150 × 60 × 30 mm, and the unit weighs about 0.1 kg. The compact housing fits comfortably in hand during commissioning. Meanwhile, the multilingual interface reduces training time for international maintenance teams. This combination of portability and functionality makes the keypad a practical service tool.

Installation Guidelines

Connecting the DBG60B-01 requires access to the drive interface port. First, power down the inverter before attaching the keypad. Next, plug the terminal directly into the drive port or use the DKG60B extension cable for remote operation. Additionally, confirm the MOVITRAC® 07B firmware version is 13 or higher before expecting full functionality.

After connection, power up the drive and wait for the display to initialize. The keypad automatically detects the connected device and loads the appropriate parameter set. Finally, select the desired language from the menu and begin parameter configuration or diagnostics. Proper handling prevents damage to the connector pins during repeated service use.

Packaging List

• 1 × SEW DBG60B-01 Operator Keypad

• 1 × Installation Instructions

Shipping via Fedex, UPS, or DHL.

FAQ

Q1: Which SEW drives work with the DBG60B-01 keypad?
The DBG60B-01 supports MOVITRAC 07B, MOVIMOT, and MOVIFIT drives. It also works with MF-MQ fieldbus interfaces.

Q2: Does the MOVITRAC 07B include this keypad as standard?
No, the basic MOVITRAC 07B version does not include the keypad. It serves as an optional upgrade for advanced control.

Q3: What firmware is required for MOVITRAC 07B control?
Controlling the MOVITRAC 07B with this keypad requires firmware version 13 or higher. Earlier versions may not support full functionality.

Q4: How many languages does the display support?
The illuminated plain-text display offers a choice of 7 languages. These include English, German, French, and Spanish.

Q5: Can the keypad connect remotely from the drive?
Yes, the optional DKG60B extension cable extends connection distance up to 5 meters (20 feet). This supports remote commissioning and monitoring.
