The SEW USB11A is a USB to RS485 interface adapter engineered for seamless communication between a PC and SEW MOVIDRIVE® inverters. Specifically, it enables parameter setting, diagnostics, and programming through the MOVITOOLS® MotionStudio software. The adapter supports both USB 1.1 and 2.0 standards for broad computer compatibility. Furthermore, the package ships with all necessary cables for immediate setup. Typical users include commissioning engineers, maintenance technicians, and system integrators working with MOVIDRIVE® drive systems.
The USB11A adapter delivers reliable interface conversion between modern PCs and industrial drives. Its primary function converts USB signals to RS485 for direct drive communication. Additionally, compatibility covers MOVIDRIVE® MDX60B and MDX61B inverter models.
Beyond basic conversion, the unit supports plug-and-play connection between PC and drive. The included MOVITOOLS® MotionStudio software handles drive configuration, parameter backup, and firmware updates. Meanwhile, the supplied cables remove the need for separate purchases. Its compact, lightweight housing suits field service work, while the durable construction withstands industrial environments.
The adapter communicates through USB to RS485 conversion at standard industrial baud rates. USB standards supported include USB 1.1 and USB 2.0, ensuring compatibility with older and newer computers. The connection ports comprise a USB Type B socket for the PC and an RJ10 socket for the MOVIDRIVE® X6 service interface.
Physical weight measures approximately 0.3 kg, with a shipping weight near 0.5 kg. The package includes a USB A-B cable for PC connection plus an RJ10-RJ10 cable for drive connection. A CD-ROM provides drivers and the MOVITOOLS® MotionStudio software. Operating system support covers Windows-based platforms compatible with MOVITOOLS®.
Setting up the USB11A adapter follows a straightforward sequence. First, install the MOVITOOLS® MotionStudio software and drivers from the supplied CD-ROM. Next, connect the USB A-B cable between the PC and the adapter's USB Type B port. After that, attach the RJ10-RJ10 cable from the adapter to the MOVIDRIVE® X6 service interface.
Once connected, power up the drive and launch the software. The program should detect the adapter and establish communication automatically. Finally, verify the connection by reading drive parameters or performing a diagnostic scan. Proper cable seating prevents intermittent communication faults during programming sessions.

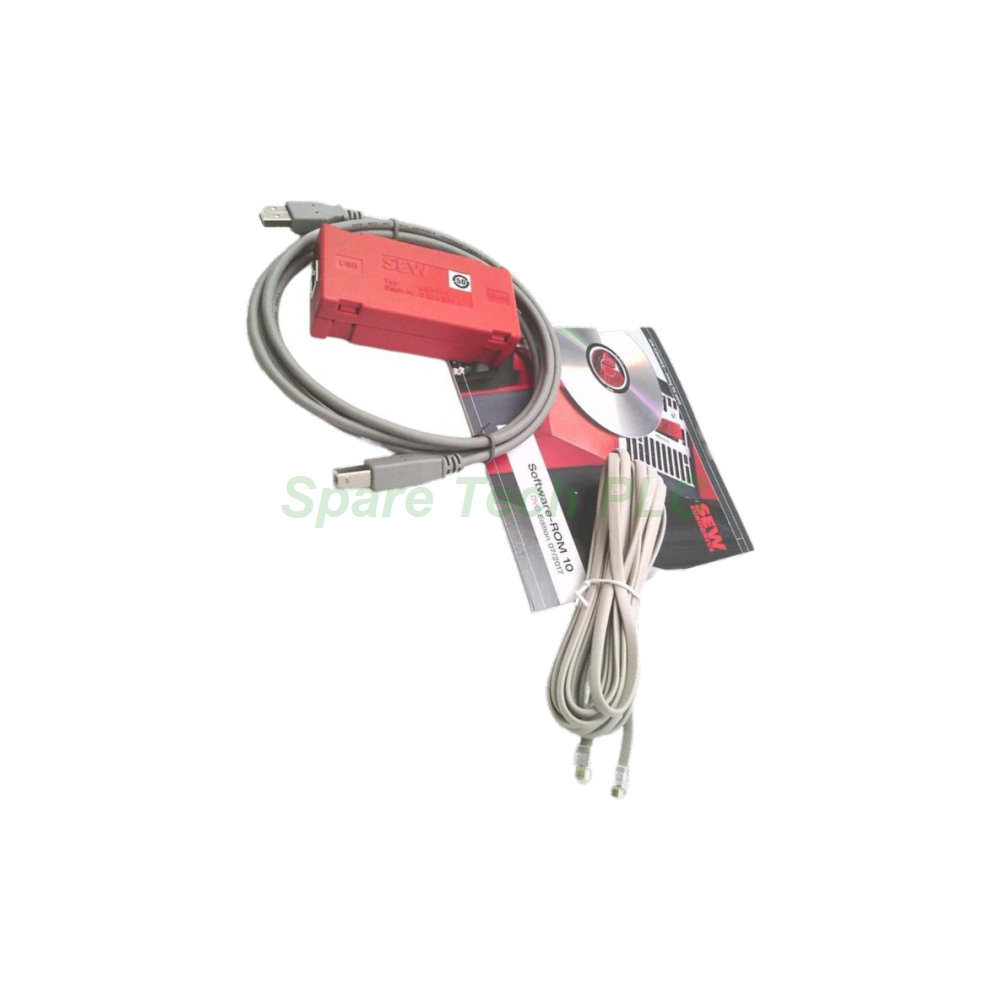

1 × SEW USB11A Interface Adapter
1 × USB A-B Cable
1 × RJ10-RJ10 Cable
1 × MOVITOOLS® MotionStudio CD-ROM
1 × Installation Instructions
Shipping via Fedex, UPS, or DHL.
Q1: What is the purpose of the SEW USB11A adapter?
The USB11A connects a PC to MOVIDRIVE inverters via USB to RS485 conversion. It enables parameter setting, diagnostics, and programming.
Q2: Which inverters work with this interface adapter?
The adapter is engineered for MOVIDRIVE MDX60B and MDX61B inverters. It connects through the X6 service interface port.
Q3: What software does the USB11A include?
The package includes MOVITOOLS MotionStudio on CD-ROM. This software handles drive configuration, parameter backup, and firmware updates.
Q4: Which cables come with the adapter?
Two cables ship with the unit. These are a USB A-B cable for the PC and an RJ10-RJ10 cable for the drive.
Q5: What USB standards does this adapter support?
The USB11A supports both USB 1.1 and USB 2.0 standards. This ensures compatibility with a wide range of computers.
| Brand Name | |
| Model No. | USB11A |
| Product Type | Interface Adapter |
| hasMerchantReturnPolicy | Adjust according to reality |
| Shippingdetails | Adjust according to reality |

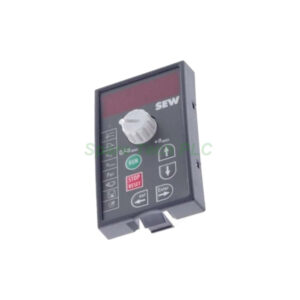

The SEW FBG11B is a compact operator panel for MOVITRAC B and MOVIDRIVE B inverters. It provides a 5-digit 7-segment LED display, 6 buttons, 8 status icons, and a built-in potentiometer for manual speed setting. The detachable unit supports commissioning and diagnostics.

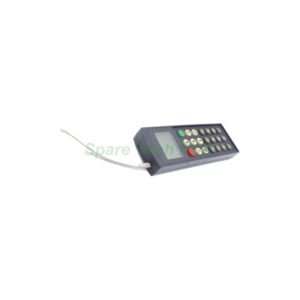

The SEW DBG60B-01 is an advanced operator keypad for MOVITRAC 07B, MOVIMOT, and MOVIFIT drives. It features an illuminated multi-line LCD, 21 keys, and support for 7 languages. The IP40-rated terminal enables plain-text parameter setting and diagnostics.
The SEW FSC11B is a communication interface module for MOVITRAC B frequency inverters. It adds RS-485 and CAN-based SBus connectivity for PLC and network integration. The module also provides an RJ10 service port for diagnostics and configuration.

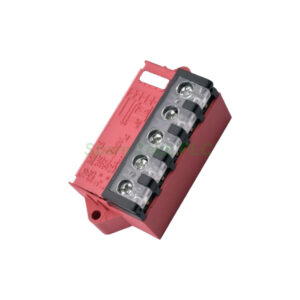

The SEW BGE1.5 is a compact brake rectifier for electromagnetic brakes in industrial drive systems. It accepts 150-500VAC input and delivers up to 1.5A holding current. Electronic switching and an integrated varistor ensure rapid brake release and dependable operation.
