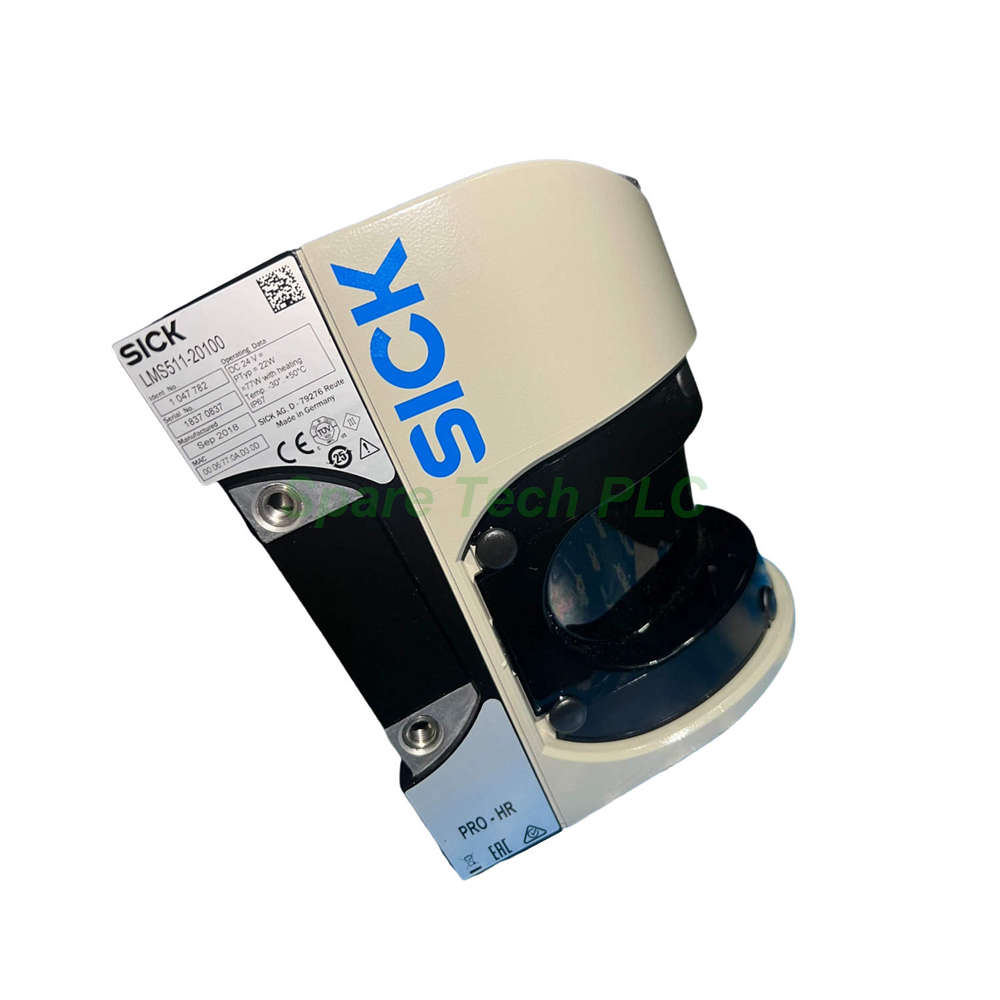

SICK LMS511-21100 Laser Scanner Controller

SICK LMS511-21100 Bar Code Scanner Controller

Product Introduction

The SICK LMS511-21100 belongs to the LMS500 Lite series. This controller functions as a bar code scanner controller for industrial automation. It uses an infrared light source at 905 nm. Furthermore, it meets laser class 1 safety standards. The device supports both outdoor and indoor applications. Its high-resolution power ensures precise object detection. Additionally, the LMS511-21100 offers flexible scanning frequencies and angular resolutions.

Technical Specifications

The SICK LMS511-21100 provides a horizontal aperture angle of 190°. Its scanning frequency options include 25 Hz, 35 Hz, 50 Hz, and 75 Hz. Meanwhile, the angular resolution can be set to 0.25°, 0.5°, or 1°. The scan field flatness is ±0.72° combined. Specifically, the typical conical error is 0.11° ± 0.1°. The typical tilt is 0.15° ± 0.08°.

This controller features self-heating with additional integrated heating. Its working range spans from 0.2 m to 80 m. At a 10% remission factor, the scanning range reaches 26 m. Measurement accuracy is ±12 mm. The spot size has a divergence of 4.7 mrad. At the viewing window, the spot size is 13.5 mm. In 26 m, it becomes 136 mm. In 40 m, it reaches 202 mm. The device evaluates 2 echoes.

Mechanical and Environmental Parameters

The LMS511-21100 uses a 4 x M12 round connector. Its supply voltage is 24 V DC with ±20% tolerance. Power consumption is 22 W, plus 55 W for heating. The housing material is AlSi12, colored gray (RAL 7032). The window is polycarbonate with a scratch-resistant coating. Its enclosure rating is IP65 and IP67. Protection class is III. The weight is 3.7 kg. Dimensions are 160 mm x 155 mm x 185 mm. MTBF exceeds 100 years.

For safety, MTTFD also exceeds 100 years. The response time is ≥13 ms. Detectable object shape is almost any. Systematic error is ±25 mm from 1 m to 10 m. It is ±35 mm from 10 m to 20 m. Statistical error is 7 mm from 1 m to 10 m. It is 9 mm from 10 m to 20 m. Integrated application includes field evaluation. The device outputs 4 field sets. It handles 4 simultaneous evaluation cases. Filters include echo, fog, particle, average, and glare filters.

Interfaces and Ambient Data

Ethernet support includes TCP/IP and UDP/IP. OPC DA is available. Functions cover Host and AUX, plus NTP. Data transmission rate is 10/100 MBit/s. Serial interfaces include RS-232 and RS-422. Functions cover Host and AUX. Data transmission rate is 9.6 kBaud to 500 kBaud. USB is Mini-USB for service interface. Digital inputs are 2. Digital outputs are 3. Optical indicators include 5 LEDs and a 7-segment display.

Object remission ranges from 2% to >1,000% for reflectors. EMC emitted radiation meets industrial environment standards. Electromagnetic immunity also meets industrial standards. Vibration resistance passes sine test from 10 Hz to 150 Hz. Shock resistance is 15 g, 11 ms, 6 single shocks per axis. It also handles 10 g, 16 ms, 1,000 continuous shocks per axis. Impact resistance is IK05, IK06, IK07. Ambient operating temperature is –30 °C to +50 °C. Storage temperature is –40 °C to +70 °C. Ambient light immunity is 70,000 lx.

Installation Guide

First, mount the LMS511-21100 securely using its 160 mm x 155 mm x 185 mm housing. Next, connect the 4 x M12 round connector to a 24 V DC power supply. Ensure the supply voltage stays within ±20% tolerance. Then, configure the Ethernet or serial interface for data transmission. Use the Mini-USB port for service access. Additionally, set the scanning frequency and angular resolution to match your application. Finally, verify the IP65 or IP67 enclosure rating is maintained after installation.

Packaging List

• 1 x SICK LMS511-21100 Bar Code Scanner Controller

• 1 x 4 x M12 round connector set

• 1 x Mini-USB service cable

• 1 x Mounting hardware kit

• 1 x Quick start guide

FAQ

Q1: What is the working range of the LMS511-21100?
A1: The working range is 0.2 m to 80 m. At 10% remission, the scanning range is 26 m.

Q2: Can this controller operate outdoors?
A2: Yes, it supports both outdoor and indoor applications. It also has integrated heating for cold environments.

Q3: What is the measurement accuracy of this device?
A3: The measurement accuracy is ±12 mm. Systematic error is ±25 mm from 1 m to 10 m.

Q4: Which interfaces does the LMS511-21100 support?
A4: It supports Ethernet, RS-232, RS-422, and Mini-USB. Ethernet functions include Host, AUX, and NTP.

Q5: How is the LMS511-21100 shipped?
A5: We ship via Fedex, UPS, or DHL. The gross weight is 4.2 kg.
