Product Introduction

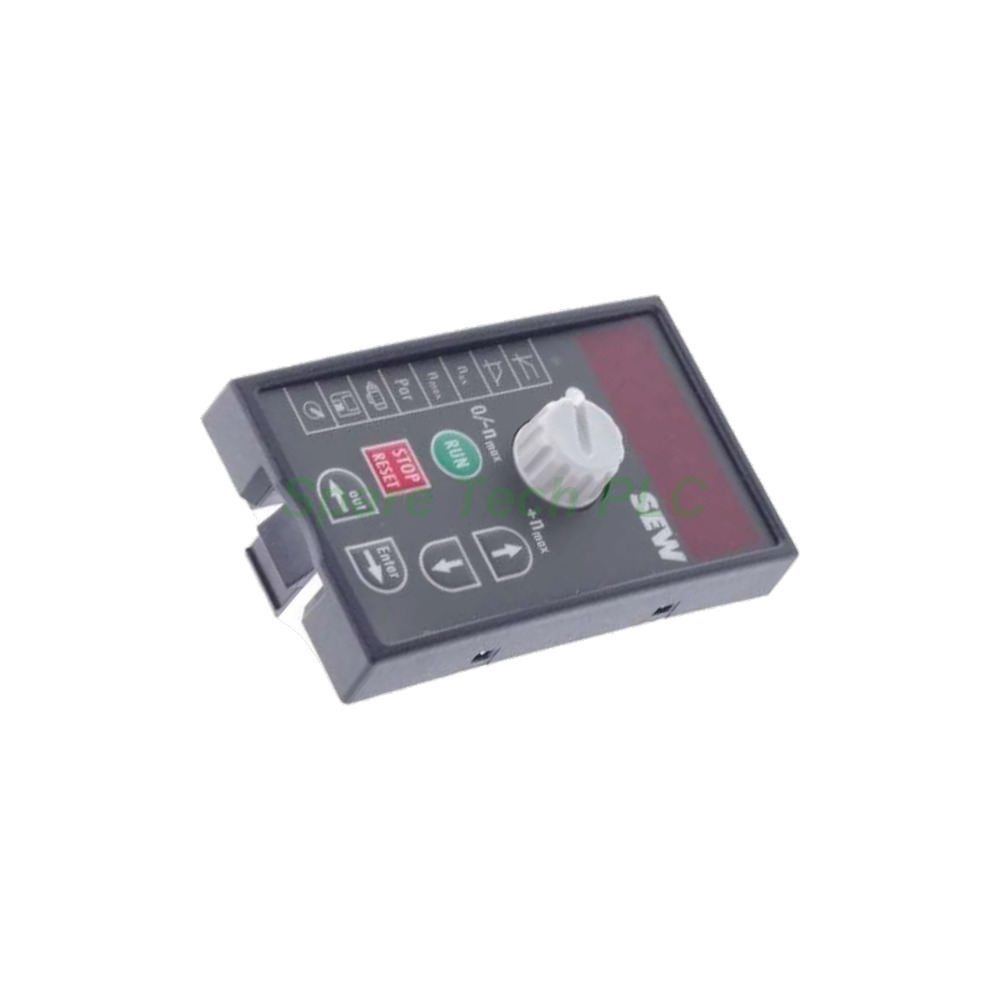

The SEW FBG11B is a detachable operator panel built for MOVITRAC® B and MOVIDRIVE® B frequency inverters. It combines local display, drive control, parameter setting, and manual speed adjustment in one space-saving unit. Furthermore, the plug-and-play design allows direct connection to the inverter front panel. This makes the keypad well suited for on-site commissioning, troubleshooting, and routine maintenance. Typical users include commissioning engineers, maintenance technicians, and system integrators working with SEW drive systems.

Key Features and Functions

The FBG11B keypad delivers essential control and monitoring functions. Its display uses a 5-digit, 7-segment LED for clear numeric readout. Additionally, six buttons handle Start, Stop/Reset, and navigation duties, while eight icons indicate operating mode, fault conditions, and control source.

Beyond basic display, the panel supports several practical functions. First, it enables local drive start and stop for commissioning. Next, parameter management allows users to view, edit, copy, and transfer parameter sets. Furthermore, diagnostics cover fault code reading and reset. The built-in potentiometer provides manual reference speed setting during test runs. Notably, disconnecting the keypad automatically stops the drive for safety.

Technical Specifications

The terminal receives power directly from the inverter interface, so no separate supply is required. Operating temperature spans 0°C to +50°C, matching typical cabinet conditions. The protection class is IP40 according to EN 60529, protecting against solid objects above 1mm.

Physical dimensions measure approximately 60 × 100 × 40 mm, and the unit weighs about 0.15 kg. Both short and long menu modes are supported for flexible navigation. Meanwhile, the keypad can remain plugged onto the inverter during operation. This combination of compact size and full functionality makes it a practical service tool.

Compatibility and Installation

The FBG11B works with MOVITRAC® B series inverters, including the MC07B family. It also supports MOVIDRIVE® B units that accept this panel type. Connection is plug-and-play to the inverter front panel, requiring no special tools.

Installation follows a simple sequence. First, power down the inverter before attaching the keypad. Next, align the connector and press the panel firmly into place. After that, power up the drive and wait for the display to initialize. Finally, verify parameter access and test the manual potentiometer before full operation. Proper handling prevents damage to the connector pins during repeated service use.

Packaging List

• 1 × SEW FBG11B Operator Panel

• 1 × Installation Instructions

Shipping via Fedex, UPS, or DHL.

FAQ

Q1: Which SEW drives work with the FBG11B keypad?
The FBG11B supports MOVITRAC B series inverters, including MC07B models. It also works with compatible MOVIDRIVE B units.

Q2: Does the keypad include a speed potentiometer?
Yes, the panel features a built-in potentiometer. This enables manual reference speed setting during local operation.

Q3: What happens if the keypad is disconnected during operation?
Disconnection automatically stops the drive. This safe removal behavior protects equipment and personnel.

Q4: What is the protection class of this operator panel?
The FBG11B carries an IP40 rating according to EN 60529. It suits panel-mount use in clean industrial environments.

Q5: Can the keypad stay connected while the drive runs?
Yes, the unit can remain plugged onto the inverter during operation. It supports both short and long menu modes for navigation.
