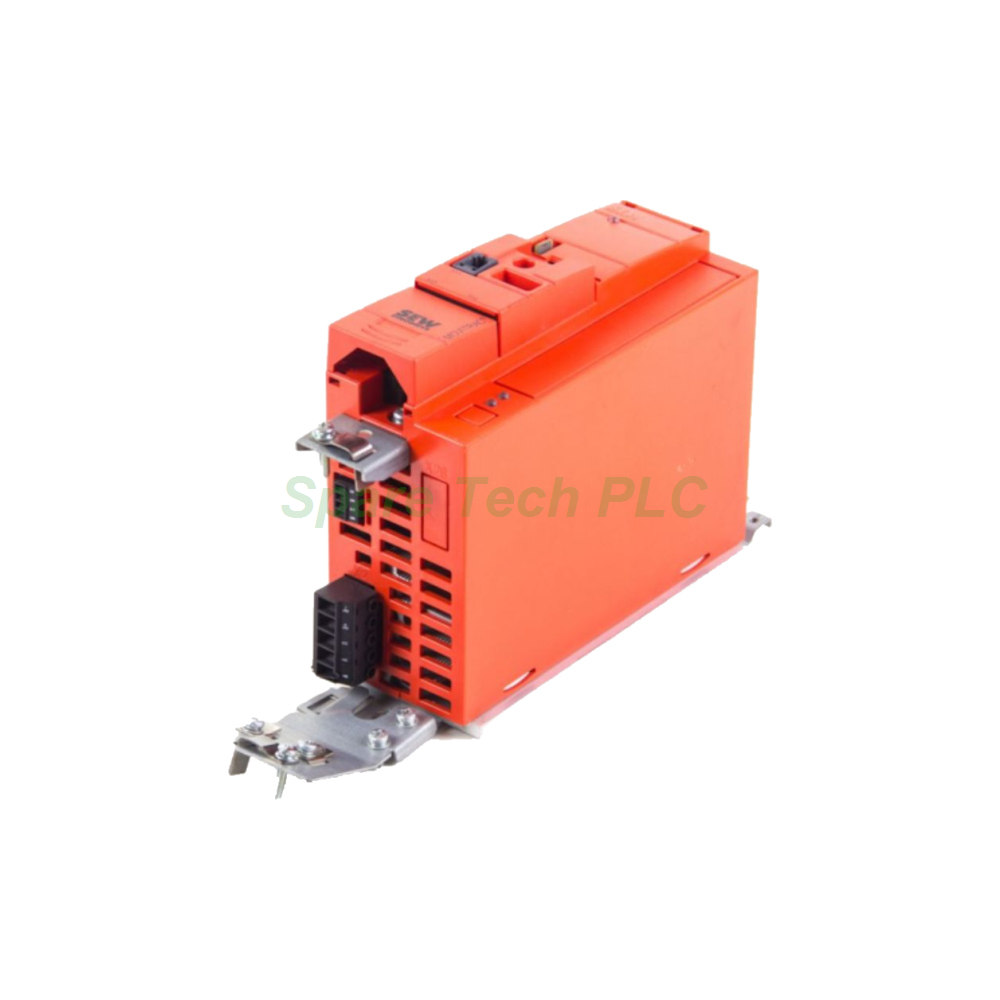

SEW MC07B0110-5A3-4-00 11kW Inverter | MOVITRAC B

SEW MC07B0110-5A3-4-00 AC Drive | 11kW 380-500V

Product Introduction

The SEW MC07B0110-5A3-4-00 is a powerful frequency inverter designed for precise control of three-phase AC motors. As a member of the MOVITRAC® B series, this 11kW unit delivers substantial output within a compact size 2 chassis. The drive accepts a 380-500VAC supply and provides a rated output current of 24A. Furthermore, its integrated brake chopper enables four-quadrant operation, supporting rapid deceleration and holding torque requirements. Common applications include heavy conveyors, extruders, mixers, centrifuges, and large pumping systems.

Technical Specifications

The MC07B0110-5A3-4-00 maintains stable performance across its full voltage range. Input accepts three-phase 380-500VAC at 50/60Hz, while the recommended motor power is 11kW (15 HP). The output section provides 24A rated current with an output frequency range suitable for standard industrial drives.

Control flexibility comes from V/f and VFC operating modes. Specifically, VFC control improves dynamic response for load changes, while V/f suits simpler fan and pump duties. Additionally, the integrated brake chopper manages regenerative energy during deceleration. Suppression complies with Category C2 limits per EN 55011, reducing electromagnetic interference in industrial settings. Protection functions cover overcurrent, overvoltage, and overtemperature conditions.

Mechanical and Environmental Parameters

This SEW inverter uses a size 2 chassis measuring 130 × 335 × 229 mm (W × H × D). The unit weighs approximately 6.6 kg, keeping handling straightforward for cabinet installation. Forced air cooling maintains thermal stability under continuous load, and the vertical mounting position optimizes airflow through the heat sink.

Regarding environmental tolerance, the drive operates from 0°C to +50°C ambient temperature. Notably, derating applies above 40°C for continuous full-load operation. Installation altitude reaches 1000m without derating, while higher elevations require output current reduction. The IP20 protection class suits clean, dust-controlled cabinet installations.

Installation Guidelines

Correct mounting supports reliable long-term operation. First, select a vertical position inside the control cabinet to promote airflow through the cooling path. Next, maintain clearance above and below the unit per SEW recommendations. The MC07B0110-5A3-4-00 mounts directly to the cabinet backplate using its rear fixing points.

Wiring requires attention to terminal assignments. The mains supply connects to L1, L2, and L3, while the motor attaches to U, V, and W outputs. Additionally, the brake resistor connects to the designated terminals when dynamic braking is required. Shielded motor cables further reduce electromagnetic interference in sensitive installations. Finally, verify all parameter settings match the motor nameplate before commissioning.

Packaging List

• 1 × SEW MC07B0110-5A3-4-00 MOVITRAC® B Frequency Inverter

• 1 × Installation Instructions

Shipping via Fedex, UPS, or DHL.

FAQ

Q1: What is the power rating of the SEW MC07B0110-5A3-4-00?
This inverter supports 11kW (15 HP) motor power. It delivers 24A rated output current across a 380-500VAC supply.

Q2: Does this drive include an integrated brake chopper?
Yes, the MC07B0110-5A3-4-00 features an integrated brake chopper. This enables four-quadrant operation with an external braking resistor.

Q3: Which control modes does this inverter support?
The drive supports both V/f and VFC control modes. VFC provides improved dynamic response for demanding load conditions.

Q4: What are the dimensions of this SEW inverter?
The unit uses a size 2 chassis measuring 130 × 335 × 229 mm. It weighs approximately 6.6 kg.

Q5: What is the ambient temperature range for operation?
The MC07B0110-5A3-4-00 operates from 0°C to +50°C. Derating applies above 40°C for continuous full-load operation.
