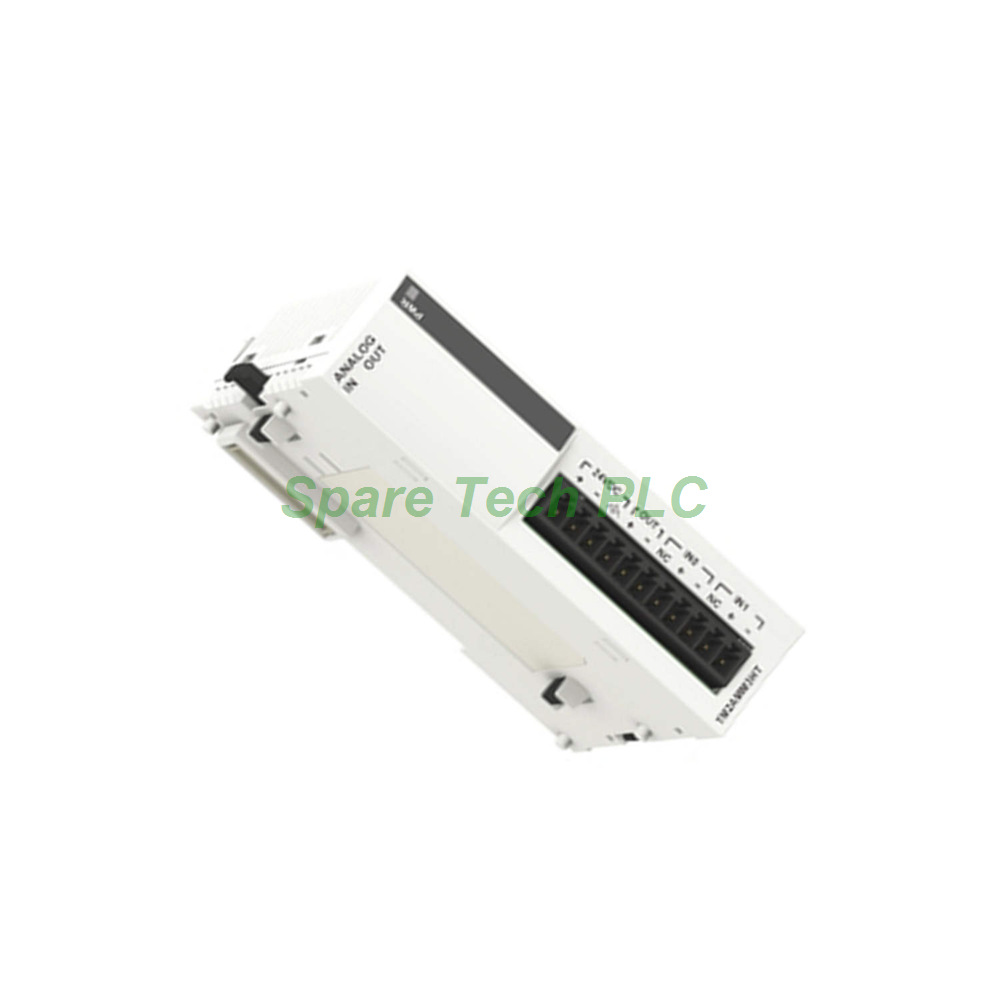

The TWDAMM3HT module belongs to the Schneider Electric Twido series, which is well-known for its flexibility in small-scale control applications. This analog I/O module provides a practical solution when your base controller needs extra analog channels for monitoring sensors or driving actuators. Its removable screw terminal block simplifies wiring and maintenance, making it a practical choice for panel builders and system integrators.
The TWDAMM3HT features two analog inputs capable of handling high-level signals like 0–10V or 4–20mA, and one analog output for control tasks. It uses a 12-bit resolution to ensure accurate signal conversion, which matters for applications such as pressure or temperature monitoring. The sampling duration is fast, completing in ≤ 16 ms, and the stabilization time reaches 20 ms to maintain signal stability. Additionally, it supports current and voltage inputs, so it fits various sensor types common in industrial environments. Cross talk stays at ≤ 2 LSB, preserving signal integrity even when multiple channels operate simultaneously. This module requires an external power supply with a voltage limit between 20.4 and 28.8 V DC. For reliable operation, a shielded twisted-pair cable is recommended to minimize electrical noise, particularly when the TWDAMM3HT is deployed near variable-frequency drives or other high-interference equipment.
The TWDAMM3HT is designed for panel mounting inside control cabinets. It has a lightweight construction at only 0.41 lbs, which adds little strain to DIN rails. For storage, it can withstand temperatures from -25°C to +70°C, ensuring durability during shipping or warehouse storage. This analog I/O module also boasts low power consumption, contributing to energy-efficient system designs. Its removable terminal block allows quick replacement without rewiring the entire panel. This feature is especially valuable during troubleshooting or scheduled maintenance. Furthermore, the housing provides adequate protection against dust and accidental contact, meeting standard industrial safety requirements.
Installing the TWDAMM3HT is straightforward and requires minimal downtime. First, snap the module onto a standard DIN rail alongside your Twido base unit. Then, connect the external 24V DC power supply within the 20.4 to 28.8V range. Next, wire your analog sensors or actuators to the removable screw terminal block, ensuring the correct polarity. Using shielded cables is highly recommended to prevent signal distortion. After wiring, attach the terminal block to the module. Finally, configure the analog parameters using Twido Suite software, selecting either 0-10V or 4-20mA modes for each channel as needed. Remember to power down the system before performing any installation steps to ensure safety and avoid damaging the TWDAMM3HT.
Schneider Electric TWDAMM3HT Analog I/O Module (1 unit)
Removable Screw Terminal Block (attached)
Product documentation and quick-start guide
Note: Cables, power supplies, and programming software are sold separately.
1. Can I use both voltage and current inputs simultaneously on the TWDAMM3HT?
Yes, the two analog inputs are independently configurable. You can set one for 0-10V and the other for 4-20mA, offering excellent flexibility for mixed sensor types.
2. What happens if the external power supply voltage drops below 20.4V?
Operating the TWDAMM3HT below its specified voltage range may cause inaccurate readings or erratic output behavior. Ensure your power supply stays within 20.4–28.8V for reliable performance.
3. Is the TWDAMM3HT compatible with all Twido base units?
Yes, this module is designed to expand the I/O capacity of any Twido base unit that supports analog expansion modules. Always check your base unit's maximum expansion capacity for optimal configuration.
4. How do I wire the analog output on the TWDAMM3HT?
Connect the load to the designated output terminals, observing correct polarity. The output supports 0-10V or 4-20mA, depending on your configuration, and must be connected to a resistive load as specified in the manual.
5. What shipping carriers do you use for the TWDAMM3HT?
We ship globally using FedEx, UPS, and DHL to ensure fast and reliable delivery. Tracking information will be provided upon dispatch.
| Brand Name | |
| Model No. | TWDAMM3HT |
| Product Type | Analog I/O Module |
| hasMerchantReturnPolicy | Adjust according to reality |
| Shippingdetails | Adjust according to reality |
